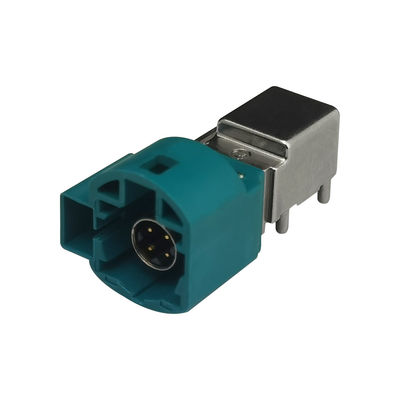

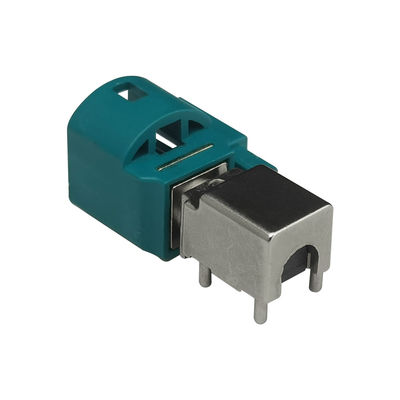

Right Angle PCB Mount HSD Connector Automotive Code Z Waterblue Color

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Positions 4+2pin Code Z-code
Color WaterBlue Color Orientation Right Angle
Mounting Type PCB Mount Operating Temperature -40℃ To +105℃
Impedance 100Ω Services OEM ODM Accept
High Light

Right Angle HSD Connector Automotive

,

Code Z HSD Connector Automotive

,

Waterblue Color HSD Connector

Leave a Message
Product Description

Product Description:

The HSD interconnect system is the ideal choice for 100Ω fully shielded connections, specifically designed for low-voltage differential signals with excellent crosstalk and interference protection. Perfect for automotive markets, it offers mechanical keying, latching, color coding options, and a compact size to meet global automotive requirements. HSD PCB connectors provide secure connections and fast data transfer, making them trusted solutions for diverse automotive and electronic applications. Their versatility covers various industries and applications.

Features:

  1. HSD PCB connectors offer a secure and reliable connection with primary and secondary locking mechanisms.
  2. High coding efficiency ensures seamless compatibility.
  3. The crimp connection method enhances reliability.
  4. Mechanical keying, latching, and color coding features enable easy identification for diverse automotive applications.
  5. Compact design optimizes space utilization.
  6. Customizable variants provide versatility for automotive power needs.
  7. MOQ:20pcs


Technical Parameters:

Feature Specifications
Mounting Type: PCB Mount
Services: OEM ODM Accept
Number of Positions: 4pin/4+2pin
Code: Z-code
Orientation: Straight/right Angle
MOQ: 20PCS
Impedance: 100Ω
Color: WaterBlue Color
Operating Temperature: -40℃ To +105℃


Applications:

  1. HSD PCB connectors are widely used in automotive electronic systems for reliable data transmissions.
  2. They enable seamless connections in infotainment systems, digital symmetrical networks, and support USB 1.0, 2.0, and 3.0 for fast data transfer.
  3. LVDS interfaces benefit from HSD PCB connectors for high-speed, noise-resistant data transmission.
  4. They also provide dependable connections in automotive Ethernet networks.
  5. HSD PCB connectors facilitate high-speed data exchange for multimedia streaming and data transfer, including FireWire applications.

HSD Coding:

  Right Angle PCB Mount HSD Connector Automotive Code Z Waterblue Color 0

Right Angle PCB Mount HSD Connector Automotive Code Z Waterblue Color 1

Customization:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of FAKRA connector required, and the length of the cable, and we will be happy to consider your request for a working solution.Please don't hesitate to contact LEADSIGN. We will provide you with quality assurance and the best service.

FAQ:

Q1:What are the primary applications of HSD PCB connectors?
A1:HSD PCB connectors are primarily used in automotive electronic systems for reliable data transmissions, supporting infotainment, digital networks, and USB connections.



Q2:What benefits do HSD PCB connectors offer in automotive applications?
A2:HSD PCB connectors ensure secure and efficient data transmission for critical automotive functionalities, including high-speed data exchange and stable connections.



Q3:Are HSD PCB connectors easy to install and integrate into existing automotive systems?
A3:Absolutely, HSD PCB connectors are designed for easy installation and seamless integration, with a compact size and user-friendly features.
