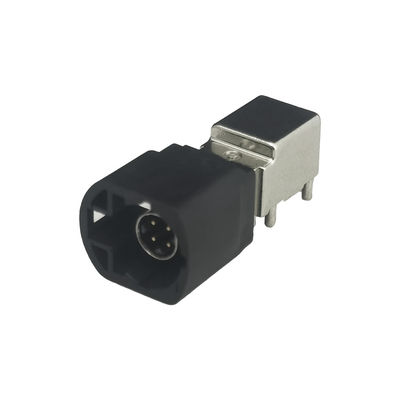

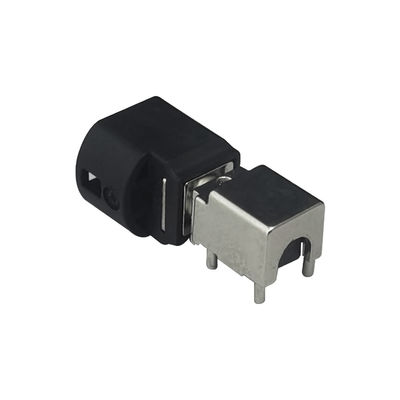

OEM ODM FAKRA HSD LVDS 4 Pin A Code Black Color Connector For PCB Mount

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Impedance 100 Ω Temperature Range −40°C~+105°C
Coding / Color (Automotive) Code A,Black/9005 Mounting Type PCB Mount / Panel Mount
Connector Style Right Angle Business Area Automotive
Business Type OEM&ODM MOQ 20PCS
High Light

FAKRA HSD LVDS 4 Pin

,

A Code FAKRA HSD Connector

,

4 Pin FAKRA HSD Connector

Leave a Message
Product Description

Product Description:

FAKRA HSD Connector is a high-speed data (HSD) connector designed specifically for automotive applications. It is a double housing design connector that provides reliable data transmission with an impedance of 100Ω.
This connector is a great choice for applications where high-speed data transmission is a must, such as in-vehicle infotainment systems and automotive navigation systems. It has a robust construction and high-quality materials that ensure its reliable performance and long service life. Its compact size and lightweight design make it easy to install and integrate into any automotive system.
FAKRA HSD Connector is the ideal choice for automotive applications that demand reliable, high-speed data transmission. Its low cost and high quality make it the perfect solution for any automotive system.



Features:

  1. HSD is a 100 Ω fully-shielded interconnect system that works with shielded twisted quad cables.
  2. The HSD interconnect system is specifically designed for the automotive market, catering to applications like LVDS cameras, USB, and IEEE 1394.
  3. The HSD system offers mechanical keying, latching, color code options, and a compact size to meet global automotive standards.
  4. It features both primary and secondary locks for enhanced security.
  5. The HSD system utilizes a reliable crimp connection method.
  6. With its high cable retention force, the HSD system ensures a secure and stable connection.
  7. MOQ:20PCS

Technical Parameters:

Attribute Value
Brand Name LEADSIGN
Connector Style FAKRA HSD Connector, High-Speed Data (HSD) connector, HSD right angle connector
Pin 4 signal pins
Temperature Range −40°C~+105°C
Impedance 100 Ω
Mounting Type PCB Mount / Panel Mount
Coding / Color (Automotive) Code A,Black
Business Area Automotive


Applications:

HSD connectors find extensive applications in various industries, with a primary focus on automotive electronics. Additionally, they are widely used in the telecom industry, including radio base stations. These connectors are also crucial components in digital infotainment electronics and digital symmetrical networks.



Furthermore, HSD connectors support multiple data transmission protocols, such as USB 1.0, 2.0, and 3.0, LVDS (Low-Voltage Differential Signaling), Ethernet, and IEEE 1394 (Firewire). Their versatility and reliability make them indispensable in ensuring seamless data communication across different systems and applications.



HSD Coding:

  OEM ODM FAKRA HSD LVDS 4 Pin A Code Black Color Connector For PCB Mount 0

OEM ODM FAKRA HSD LVDS 4 Pin A Code Black Color Connector For PCB Mount 1

Customization:

HSD PCB Connector - High Speed Data Connector

LEADSIGN offers customized services to meet your specific needs and requirements. With our expertise in connector design and manufacturing, our goal is to provide you with the ideal solution that maximizes performance and optimizes application integration.



Please let us know the type of connector and cable length you require and we will be happy to consider your requirements and provide you with a viable solution. Please feel free to contact us.



FAQ:

1.Q: Do you accept customizable orders?

A: Yes, we accept OEM & ODM.



2.Q: How can I get the cable price list?
A: Please contact us with detailed inquiry information, so we can offer the latest price for you.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
