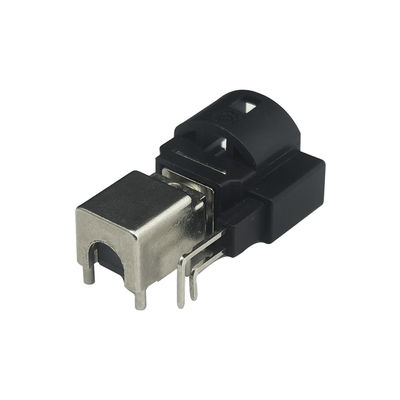

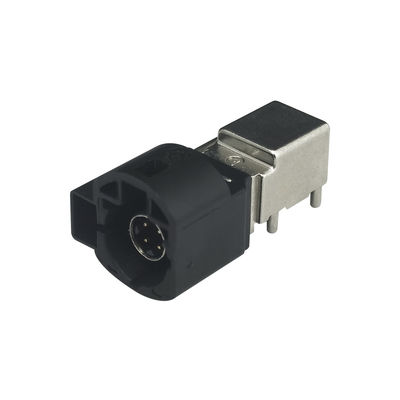

Automotive 4+2 Pin FAKRA HSD Connector Black Color For PCB Mount

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mounting Type PCB Mount / Panel Mount Coding / Color (Automotive) Code A,Black Color
Connector Style Right Angle Temperature Range −40°C~+105°C
Impedance 100 Ω Business Area Automotive
Business Type OEM&ODM MOQ 20PCS
High Light

4+2 Pin FAKRA HSD Connector

,

Black Color FAKRA HSD Connector

,

FAKRA HSD Connector For PCB Mount

Leave a Message
Product Description

Product Description:

The FAKRA HSD Connector is perfect for automotive applications. This high-speed LVDS connector is designed to provide a secure connection with minimal signal loss. It offers a right angle mounting type suitable for both PCB and panel mounting.With its right angle mounting type and minimal signal loss, this connector is designed to provide an efficient and high-quality connection.HSD connection technology is appropriate for LVDS cameras, USB devices, and IEEE 1394 in automotive applications.HSD system meets automotive regulations with mechanical keying, latching, color coding choices, and minimal dimensions.



Features:

  1. This is a high-performance digital system for low-voltage differential signals that prevents crosstalk and external interference
  2. HSD is a 100-shielded connection system capable of using shielded twisted quad wires
  3. Primary and secondary locking mechanisms
  4. High coding efficiency (multiple codings are available on the plastic housing to avoid misconnections)
  5. HSD+2,+4,+8 (on request) power pin connections - extra pins (MQS contacts) for power supply reasons available
  6. MOQ:20 PCS


Technical Parameters:

Properties Values
Brand Name LEADSIGN
Type Data Transfer Connector, High-Speed Data (HSD) connector, High Speed Data Connector
Coding / Color (Automotive) Code A,Black color
Mounting Type PCB Mount / Panel Mount
Connector Style Right Angle
Impedance 100 Ω
Temperature Range −40°C~+105°C
Description Right Angle Plug, Single,4 signal pins,2 power pins
Coding HSD+2 A,B,C,D,E,F,Z
Business Area Automotive
Business Type OEM&ODM


Applications:

  1. Transmit USB signals
  2. LVDS camera signals
  3. IEEE 1394 signals
  4. For digital infotainment applications
  5. High-definition entertainment
  6. Ethernet data connectivity
  7. Telematics
  8. Video transmission via GVIF



HSD Coding:

Automotive 4+2 Pin FAKRA HSD Connector Black Color For PCB Mount 0Automotive 4+2 Pin FAKRA HSD Connector Black Color For PCB Mount 1



Customization:

Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.



Support and Services:

We offer a range of services, including:

  • Accept OEM and ODM orders.
  • Samples are free of charge, only the customer has to pay the courier fee.
  • Support multiple logistics methods.
  • Fast delivery time and first-class service.

If you have any questions about our technical support and services, please do not hesitate to contact us.
