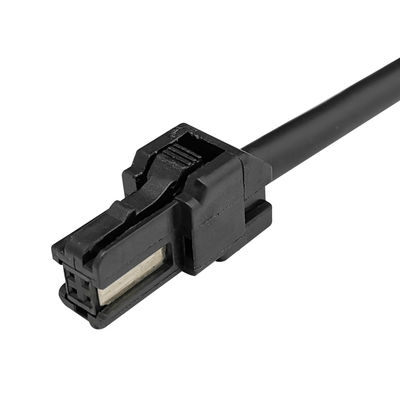

Auto USB FAKRA HSD Connector High Speed Link HSL For Video Transmission

Place of Origin CHINA
Brand Name LEADSIGN
Model Number High Speed Link (HSL) USB Connector
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Black PIN 4PIN
Impedance 90 Ω Application Automotive
Service Support OEM&ODM Order MOQ 20 PCS
High Light

Auto FAKRA HSD Connector

,

USB FAKRA HSD Connector

,

Video Transmission USB FAKRA

Leave a Message
Product Description

Automotive High Speed Link (HSL) USB Connector For Video Transmission



Product description:

HSL (High Speed Link) connectors are designed for high speed data transfer to meet the requirements of the automotive industry. 0.50 HSL systems support data rates of up to 1 Gbit/s and above. Applications for USB connection, display connection, rear seat connection, camera connection, combination instrument connection.



Main Feature:

1.Compact construction
2.Automotive specification 0.50 series terminals
3.Available in 6 codes
4.Reflow solderable
5.Fully shielded design

6.MOQ:20 PCS



Application:
1.USB connection
2.Display connection
3.Rear seat connection
4.Camera connection
5.Combination meter connection



Offer Custom:

Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.



Technical Specifications:



HSL
Mechanical
Wire Range 0,22- 0,5mm²
Mating Cycles min. 20
Retention Force Connector Lock min. 98N
Mating/Unmating Force max.60N
Electrical
lmpedance 90 Ω
LLCR 30 mOhms
Contact Current ≤2,5A DC
(depends on used cable size)
Materical
Plug Housing PBT



Our Service:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
