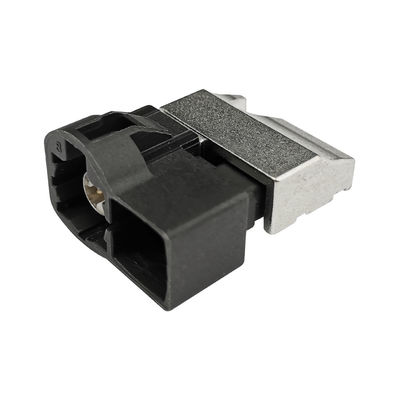

FAKRA RF Coaxial HSD Connector Automotive 4+4Pin Code A Plug 90 Degree

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD PCB Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type RF Coaxial Connector Connector Type PCB/Panel Mount
Code A-Code,Black Color Orientation 90 Degree,Right Angle
Application Automotive, Car GPS,Car FM MOQ 20 PCS
High Light

Coaxial HSD Connector Automotive

,

A Plug HSD Connector Automotive

,

90 Degree FAKRA RF Connector

Leave a Message
Product Description

FAKRA HSD Connector 4+4Pin Code A Plug 90 Degree PCB Mount Connector



Product description:

HSD (High Speed Data) portfolio focuses on various applications in automobiles, such as the interior compartment for connecting displays and rear seat infotainment modules. The portfolio can be used in combination with various protocols such as LVDS, GVIF, USB, IEEE1394, and Ethernet protocols. These lightweight connectors are available for right-angle orientation, PCB mounting.



Main Feature:

1. Extended PCB connector portfolio

2.Low cost
3. Robust mechanical properties
4. 14 different mechanical and color codes
5. Suitable for fully shielded connection systems with different wire diameters and types
6. Capable of high-speed data transfer such as USB, LVDS and Ethernet

7.MOQ:20 PCS



Applications:

1.Camera
2. Reverse image
3.Central display
4.Infotainment system
5.GPS
6. Digital electronics
7. Remote keyless entry
8. Antenna



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Body Material Brass / Zinc Diecast
Body Finish Matte Tin / Nickel / Tin
Coupling Mechanism Push-On
Mating Cycles 25 Min
Insulator Material LCP
Signal contacts CuZn / CuSn (Brass,Bronze)
Temperature Range −40°C to +105°C
Contact Resistance 10 MΩ Max(Center)/ 7.5 MΩ Max(Outer)
Dielectric PA / LCP
Gasket Silicone / Rubber
Insulation Resistance 1000 MΩ Min
Dielectric Withstanding Voltage 250 VRMS Min
Crimping ferrule CuSn (Bronze)
Plastic housings and secondary lock PA / PBT
Impedance 100 Ω
Frequency Range DC~6GHz
Voltage Rating 100 VRMS Max Continuous



HSD Coding:

FAKRA RF Coaxial HSD Connector Automotive 4+4Pin Code A Plug 90 Degree 0FAKRA RF Coaxial HSD Connector Automotive 4+4Pin Code A Plug 90 Degree 1
