Practical Code E FAKRA GPS Connector , 4+2Pins GSM FAKRA HSD LVDS
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | High Speed Data Cable Connector | Code | E-Code，Leaf Green/6002 |
|---|---|---|---|
| PIN | 4+2PIN | Application | Automotive |
| Business Type | OEM & ODM | MOQ | 20 PCS |
| High Light | Practical FAKRA GPS Connector,Code E FAKRA GPS Connector,GSM FAKRA HSD LVDS |
||
Product Description

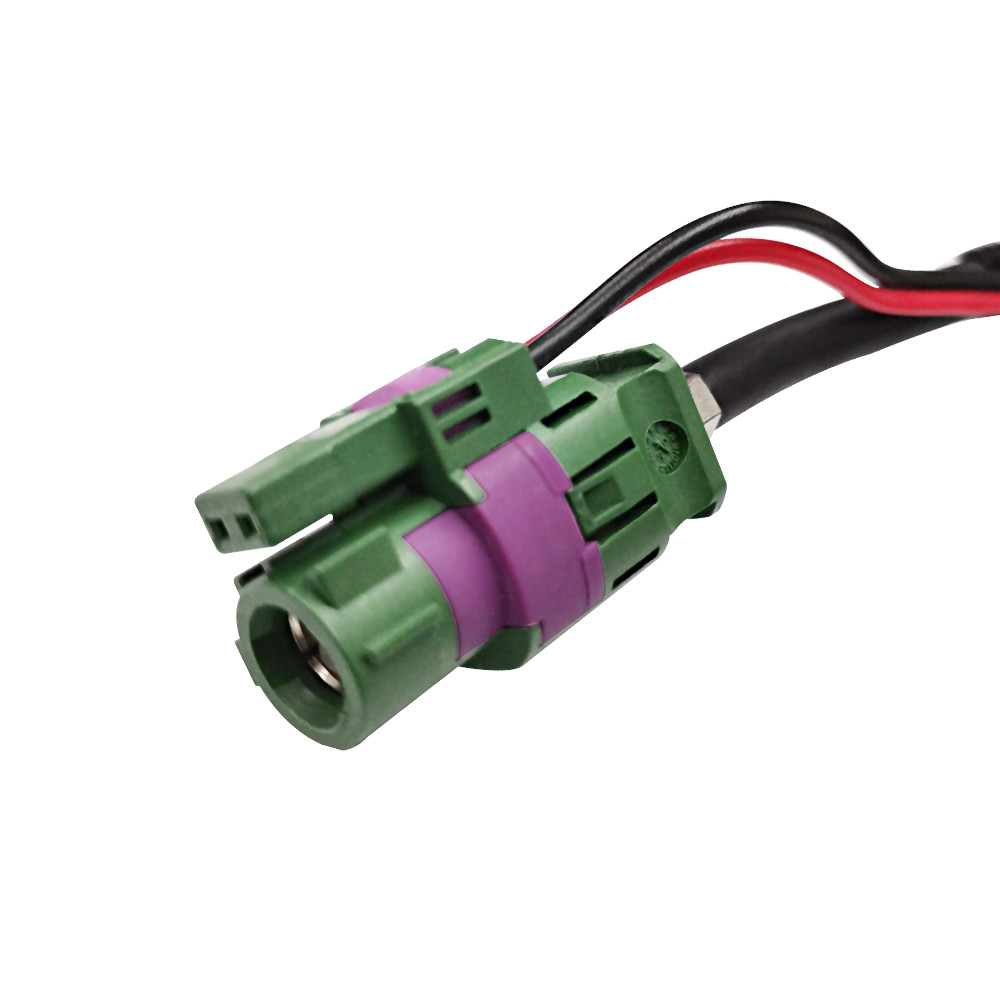

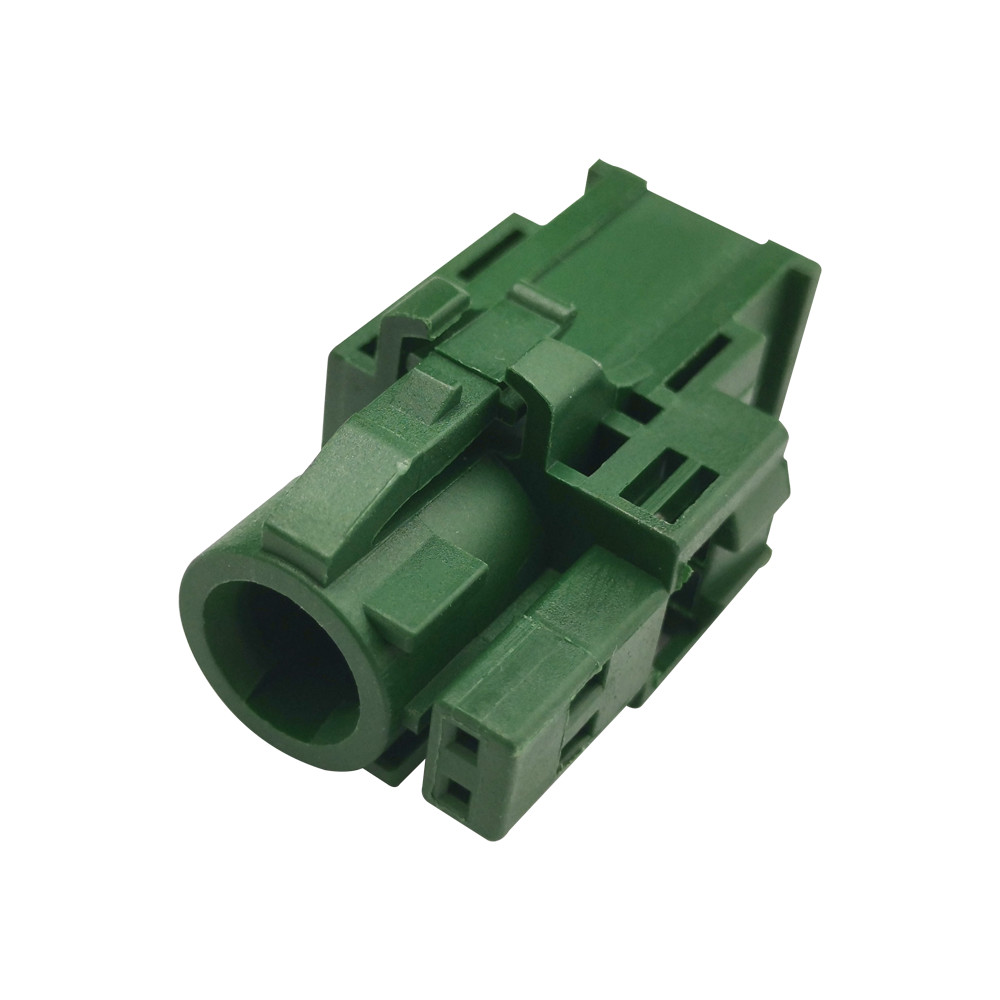

High Speed Data LVDS FAKRA HSD Connector 4+2Pins Code E For GPS GSM
Product description:
HSD connector is a fully shielded 100Ω interconnect system for use with shielded, four-wire stranded cables. The interconnect system is designed to meet the latest requirements of the industrial market, such as low voltage differential signal (LVDS) cameras, USB and IEEE 1394 (FireWire) applications. The device offers mechanical keying, locking, color coding options and minimum dimensions to meet global industrial requirements.
Main Feature:
1.Primary and secondary locking
2.Crimp connections
3.High cable holding force
4.High encoding efficiency
5. High anti-interference capability and low noise to meet the needs of high-speed digital data transmission in vehicles
6. High stability and reliability, high precision, perfect docking with the original car.
7. Compliant with LVDS, Ethernet and USB protocols.
8. MOQ:20 PCS.
Applications:
1.Electronic devices for digital infotainment systems
2.Digital symmetric network
3.usb 1.0, usb 2.0, usb 3.0
4.LVDS
5. In-vehicle high-speed data transmission
6. In-vehicle audio and video transmission
Offer Custom:
We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.
Technical Specifications:
| HSD | ||
|
Electrical Data |
lmpedance | 100 Ω |
| Frequency range depending on cable type | DC to 6 GHz | |
| Return loss | ≥ 20 dB,DC to 1 GHz ≥ 17 dB,1 GHz to 2 GHz |
|
| lnsertion loss | ≤0.1 dB, DC to 2 GHz | |
| lnsulation resistance | ≥ 1 x 10³MΩ | |
| Signal contact resistance | ≤ 10 mΩ | |
| Outer contact resistance | ≤7.5 mΩ | |
| Test voltage | 250 V rms | |
| Working voltage | 60 V rms | |
| Coupling attenuation | ≥75 dB,DC to 1 GHz ≥ 65 dB,1 GHz to 2 GHz |
|
|
Mechanical Data |
Mating cycles (standard, non waterproof) | ≥25 |
| Mating cycles (waterproof) | ≥5 | |
| Engagement force | ≤30 N | |
| Engagement force waterproof | ≤40 N | |
| Disengagament force | ≥5N | |
| Retention force latch | ≥ 110 N | |
| Retention force primary lock | ≥80 N | |
| Retention force secondary lock | ≥60 N | |
| Polarization feature effectiveness | ≥80 N | |
HSD Coding:
FAQ:
1. Q: Can you help with design?
A: We accept OEM and ODM orders.
2. Q: Can I get samples for free?
A: Yes, samples are available, but you need to pay the shipping cost.
3. Q: What if customers find any quality problems?
A: We will respond positively and give reasonable solutions to quality problems as soon as possible, because we intend to establish a long-term strategy with our customers, whose value is to provide better service.
