Automotive FAKRA HSD Connector 4 Pin Code Z High Precision Stable

Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA HSD Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type High Speed Data Cable Connector Code Z-Code,WaterBlue Color
PIN 4PIN Application Camera,Display,Consumer Ports,Reverse Image
Business Type OEM & ODM MOQ 20 PCS
High Light

Automotive FAKRA HSD Connector

,

Code Z FAKRA HSD Connector

,

Stable Fakra Connector 4 Pin

Leave a Message
Product Description

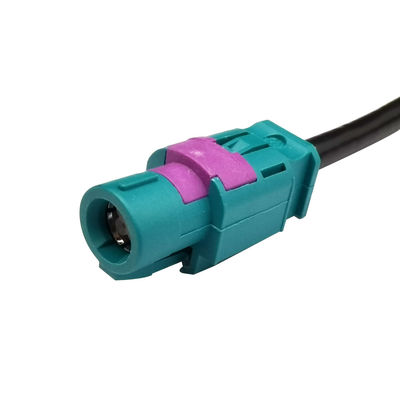

FAKRA HSD Connector Code Z 4 Pin Connector And Housing For Automotive



Product description:

HSD connectors meet the safety and reliability needs of automotive multimedia entertainment systems and automotive electronics systems, as well as the need for high digital data transmission in automobiles. the HSD connector system can transmit USB signals, signals from LVDS cameras or signals from IEEE 1394. The system can also be used for digital infotainment electronics, digital symmetric networks, and even wireless base stations.



Main Feature:

1. High interference immunity and low noise
2. With matching impedance value of 100Ω
3. with its own unique code, coding and color for different purposes
4. High stability and reliability, high precision, and perfect docking with the original car
5. Compliant with LVDS, Ethernet and USB protocols

6. MOQ:20 PCS.



Applications:

1.Transferring data pictures
2.Multifunctional display
3.Infotainment system
4. Advanced Driver Assistance System (ADAS)
5. telematics, multimedia, infotainment, GPS, navigation and camera
6. Car phone
7. Car antenna



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



HSD

Electrical

Data

lmpedance 100 Ω
Frequency range depending on cable type DC to 6 GHz
Return loss ≥ 20 dB,DC to 1 GHz
≥ 17 dB,1 GHz to 2 GHz
lnsertion loss ≤0.1 dB, DC to 2 GHz
lnsulation resistance ≥ 1 x 10³MΩ
Signal contact resistance ≤ 10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Coupling attenuation ≥75 dB,DC to 1 GHz
≥ 65 dB,1 GHz to 2 GHz

Mechanical

Data

Mating cycles (standard, non waterproof) ≥25
Mating cycles (waterproof) ≥5
Engagement force ≤30 N
Engagement force waterproof ≤40 N
Disengagament force ≥5N
Retention force latch ≥ 110 N
Retention force primary lock ≥80 N
Retention force secondary lock ≥60 N
Polarization feature effectiveness ≥80 N



HSD Coding:

Automotive FAKRA HSD Connector 4 Pin Code Z High Precision Stable 0Automotive FAKRA HSD Connector 4 Pin Code Z High Precision Stable 1

FAQ:

1. Q: Can you help with design?
A: We accept OEM and ODM orders.


2. Q: Can I get samples for free?
A: Yes, samples are available, but you need to pay the shipping cost.


3. Q: What if customers find any quality problems?
A: We will respond positively and give reasonable solutions to quality problems as soon as possible, because we intend to establish a long-term strategy with our customers, whose value is to provide better service.
