Durable Radio FAKRA D Connector Housing 4+2 Pin High Speed Data For Car

Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA HSD Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type High Speed Data Cable Connector Code D-Code
PIN 4+2PIN Application Camera,Display,Consumer Ports,Reverse Image
Business Type OEM & ODM MOQ 20 PCS
High Light

Durable FAKRA D Connector

,

Radio FAKRA D Connector

,

Car FAKRA Radio Connector

Leave a Message
Product Description

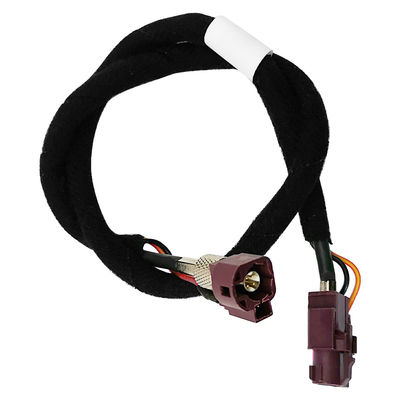

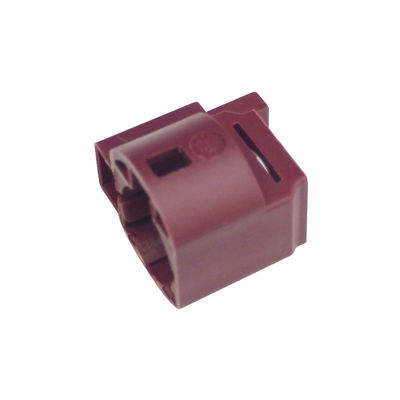

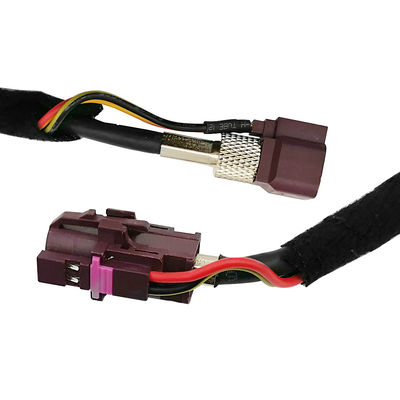

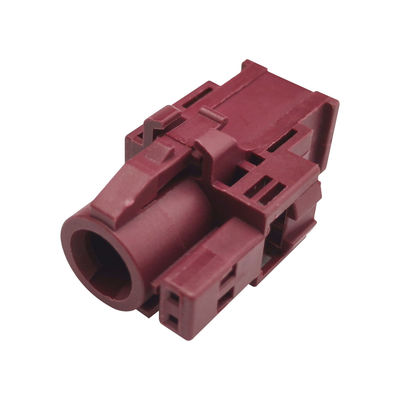

FAKRA HSD Connector Code D 4+2 Pin Connector And Housing For Car



Product description:

Fully shielded and with good impedance control, HSD connectors are ideal for a variety of high-speed data applications in the automotive industry. hsd connector systems can transmit USB signals, signals from LVDS cameras, or signals from IEEE 1394. This system can also be used for digital infotainment electronics, digital symmetrical networks, and even wireless base stations.



Main Feature:

1. High anti-interference capability and low noise to meet the needs of high-speed digital data transmission in vehicles.
2. Appearance and structure inherit the mechanical design of automotive connector bayonet, color selection and avoid alignment design.
3. High stability and reliability, high precision, and perfect docking with the original car.
4. Compliant with LVDS, Ethernet and USB protocols.
5. RoHS compliant.

6. MOQ:20 PCS.



Applications:

1.In-vehicle high-speed data transmission
2.In-vehicle entertainment system
3.In-vehicle audio and video transmission
4.LVDS camera
5.In-vehicle radio
6.In-vehicle phone
7.In-vehicle antenna



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



HSD

Electrical

Data

lmpedance 100 Ω
Frequency range depending on cable type DC to 6 GHz
Return loss ≥ 20 dB,DC to 1 GHz
≥ 17 dB,1 GHz to 2 GHz
lnsertion loss ≤0.1 dB, DC to 2 GHz
lnsulation resistance ≥ 1 x 10³MΩ
Signal contact resistance ≤ 10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Coupling attenuation ≥75 dB,DC to 1 GHz
≥ 65 dB,1 GHz to 2 GHz

Mechanical

Data

Mating cycles (standard, non waterproof) ≥25
Mating cycles (waterproof) ≥5
Engagement force ≤30 N
Engagement force waterproof ≤40 N
Disengagament force ≥5N
Retention force latch ≥ 110 N
Retention force primary lock ≥80 N
Retention force secondary lock ≥60 N
Polarization feature effectiveness ≥80 N



HSD Coding:

Durable Radio FAKRA D Connector Housing 4+2 Pin High Speed Data For Car 0Durable Radio FAKRA D Connector Housing 4+2 Pin High Speed Data For Car 1

FAQ:

1. Q: Can you help with design?
A: We accept OEM and ODM orders.


2. Q: Can I get samples for free?
A: Yes, samples are available, but you need to pay the shipping cost.


3. Q: What if customers find any quality problems?
A: We will respond positively and give reasonable solutions to quality problems as soon as possible, because we intend to establish a long-term strategy with our customers, whose value is to provide better service.
