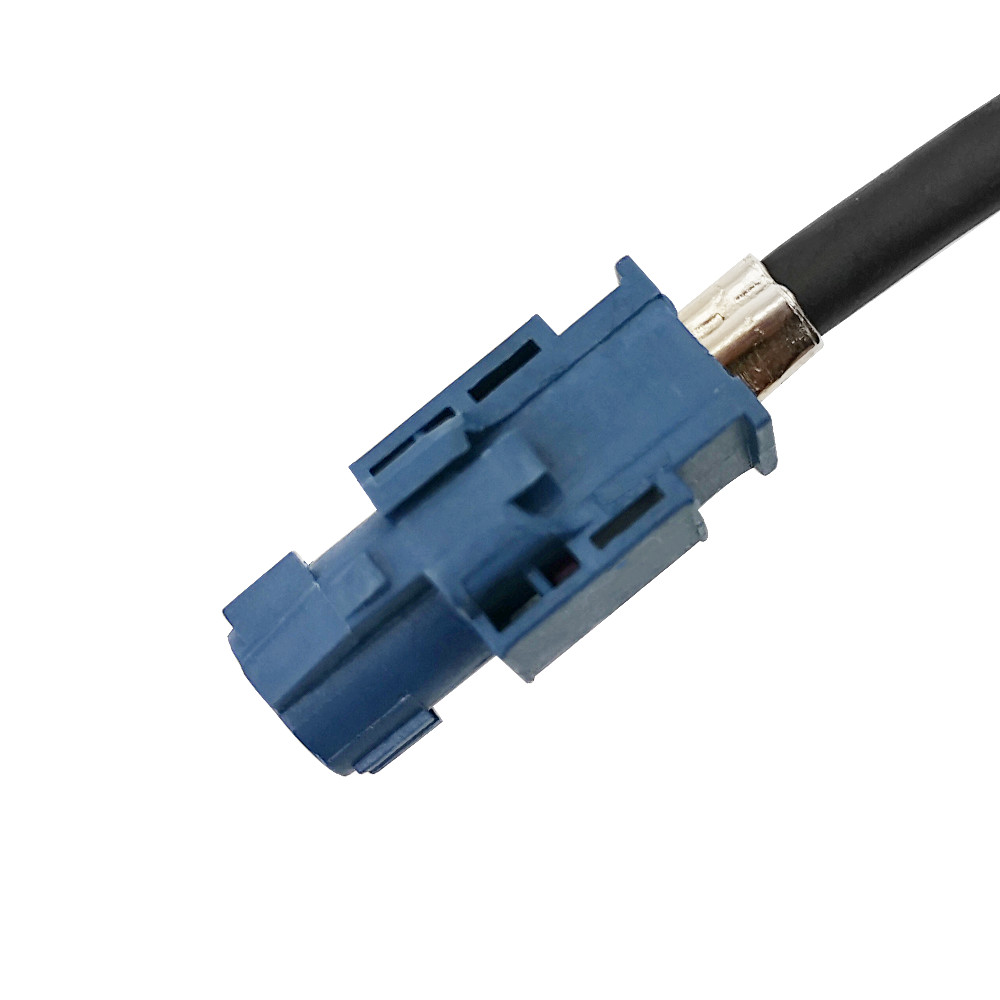

Blue Coaxial FAKRA C Female , Straight FAKRA Connector Assembly

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Gender Female Code C-Code
Color Blue Application Camera,Display,Consumer Ports,Reverse Image
Business Type OEM & ODM MOQ 20 PCS
High Light

Blue FAKRA C Female

,

Coaxial FAKRA C Female

,

Straight FAKRA Connector Assembly

Leave a Message
Product Description

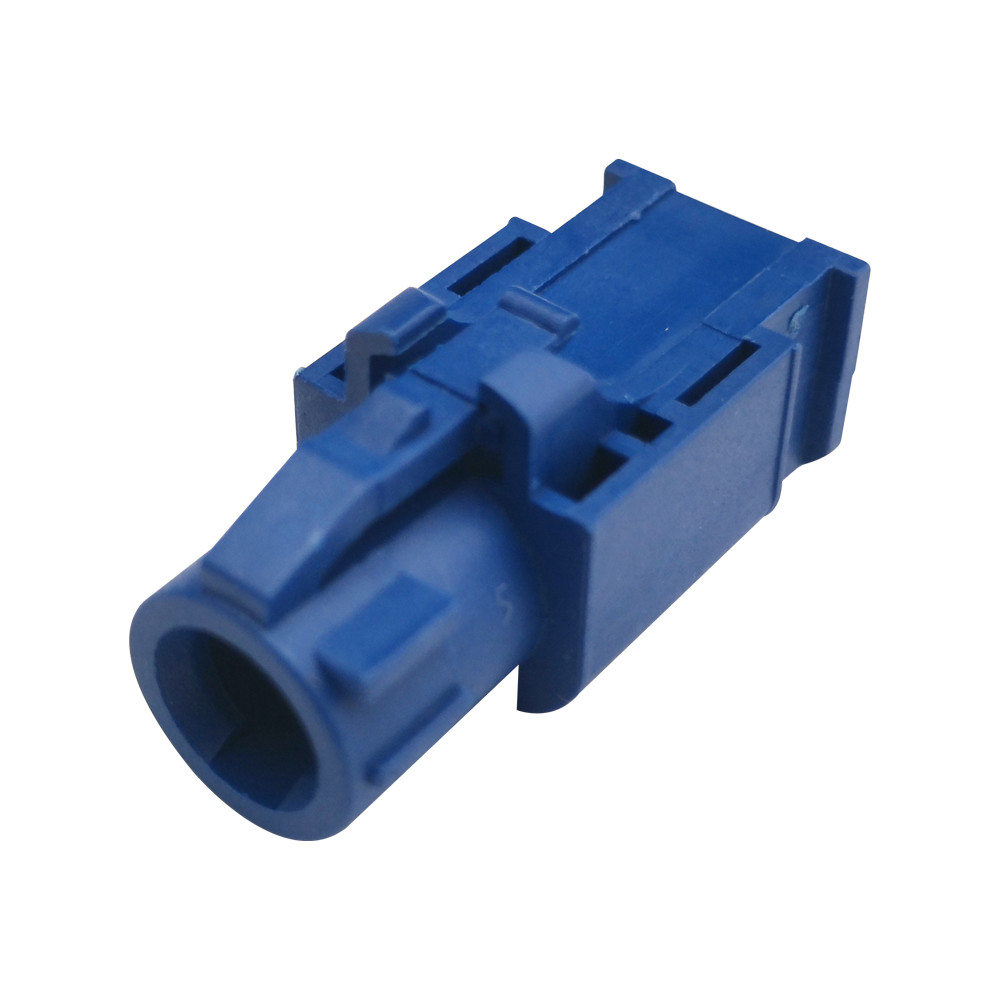

Straight C Coding Blue Female Jack FAKRA HSD Connector With Housing



Product description:

High Speed Data (HSD) ConnectorsThe system is focused on various motor vehicle applications and can transmit data and signals at frequencies up to 6 GHz without crosstalk interference, making it ideal for applications in the automotive industry.HSD ConnectorsThe HSD connector system can transmit USB signals, signals from LVDS cameras, or signals from IEEE 1394.



Main Feature:

1. Data rate up to 6Gbps
2. Coaxial cable with high shielding
3. Capable of high-speed data transmission, such as USB, LVDS and Ethernet
4. Prevents misuse due to a secure coding system
5. High assembly security due to primary and secondary locking system
6. Multiple housings for space saving and fast insertion operation

7. MOQ:20 PCS



Applications:

1. Rear entertainment system
2.Digital instrument panel
3.Dashboard/Touch Screen
4.Bluetooth
5.USB connection
6. Dual-band WIFI
7.Surround camera



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



HSD Connector

Electrical

Data

lmpedance 100 Ω
Frequency range depending on cable type DC to 6 GHz
Return loss ≥ 20 dB,DC to 1 GHz
≥ 17 dB,1 GHz to 2 GHz
lnsertion loss ≤0.1 dB, DC to 2 GHz
lnsulation resistance ≥ 1 x 10³MΩ
Signal contact resistance ≤ 10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Coupling attenuation ≥75 dB,DC to 1 GHz
≥ 65 dB,1 GHz to 2 GHz

Mechanical

Data

Mating cycles (standard, non waterproof) ≥25
Mating cycles (waterproof) ≥5
Engagement force ≤30 N
Engagement force waterproof ≤40 N
Disengagament force ≥5N
Retention force latch ≥ 110 N
Retention force primary lock ≥80 N
Retention force secondary lock ≥60 N
Polarization feature effectiveness ≥80 N



HSD Coding:

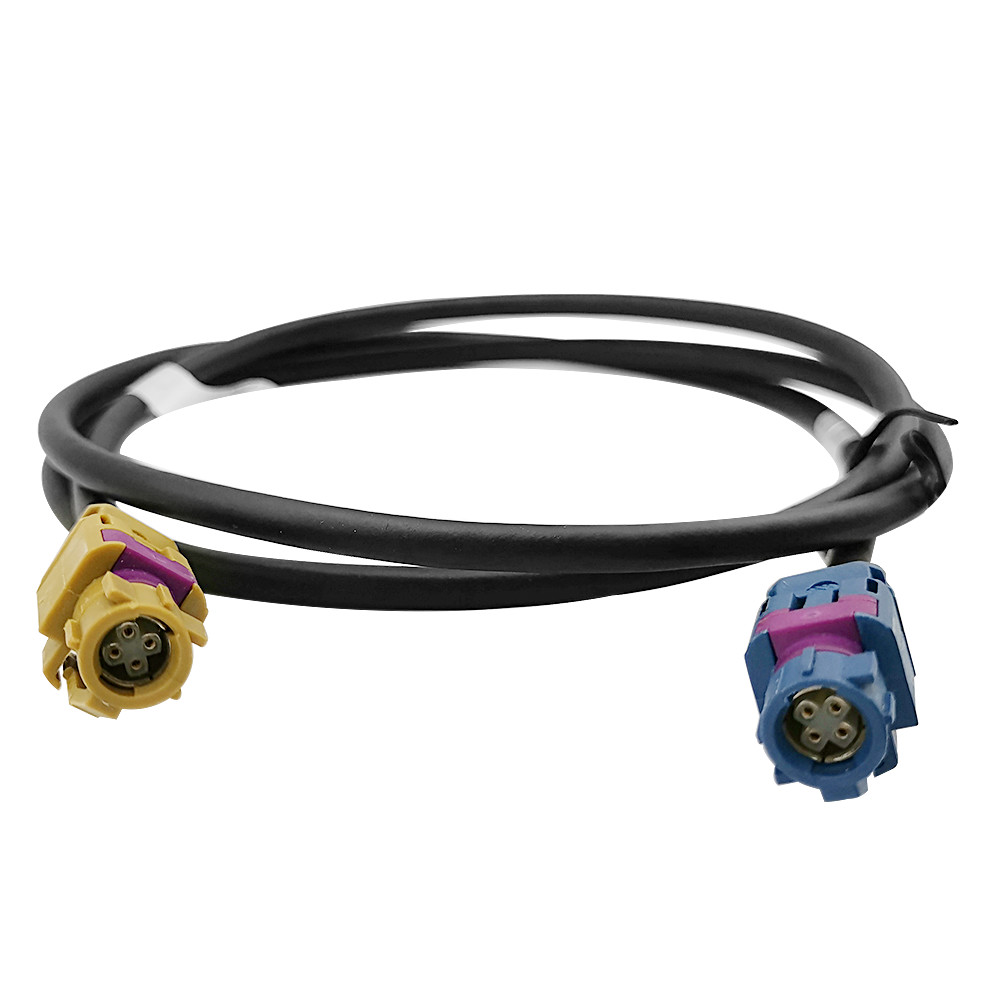

Blue Coaxial FAKRA C Female , Straight FAKRA Connector Assembly 0Blue Coaxial FAKRA C Female , Straight FAKRA Connector Assembly 1

FAQ:

1. Q: Can you help with design?
A: We accept OEM and ODM orders.


2. Q: Can I get samples for free?
A: Yes, samples are available, but you need to pay the shipping cost.


3. Q: What if customers find any quality problems?
A: We will respond positively and give reasonable solutions to quality problems as soon as possible, because we intend to establish a long-term strategy with our customers, whose value is to provide better service.
