Black LVDS HSD FAKRA Cable Assembly Code A 4+2 Pin Durable For Car

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD Cable Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type FAKRA HSD Connector Code A-Code
Color Black Application Automotive
Business Type OEM & ODM MOQ 20 PCS
High Light

Black FAKRA Cable Assembly

,

LVDS FAKRA Cable Assembly

,

Code A FAKRA HSD

Leave a Message
Product Description

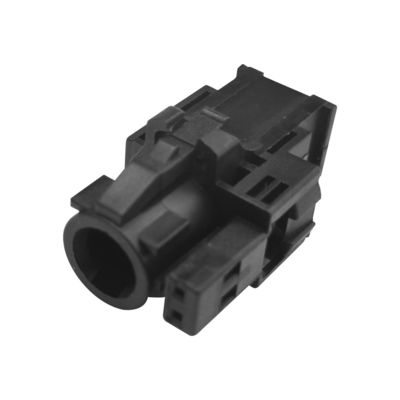

FAKRA HSD Connector Code A Black Color LVDS 4+2 Pin Connector For Car



Product description:

HSD connectors meet the safety and reliability needs of automotive multimedia entertainment systems and automotive electronics systems, as well as the need for high digital data transmission in automobiles. For example, automotive infotainment modules, cameras, consumer device ports and display devices.



Main Feature:

1. Fast transmission speed
2. 14 different mechanical and color codes.
3. Compatible with LVDS, Ethernet and USB protocols.
4. Full range of connectors for unsealed and sealed applications
5. With matching impedance value of 100Ω
6. Compatible with automotive factory system interfaces
7. High connection reliability with good contact, solid and no looseness

8. MOQ:20 PCS



Applications:

1.Infotainment System
2. Advanced Driver Assistance Systems (ADAS)
3. telematics, multimedia, infotainment, GPS, navigation and cameras
4. Body control, safety, security and comfort
5.usb 1.0, 2.0, 3.0
6. LVDS
7.GVIF



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Brand Name LEADSIGN
Series HSD Connector
Temperature Range −40°C to +105°C
Impedance 100 Ω
Signal contact resistance ≤ 10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mating cycles (standard, non waterproof) ≥25
Engagement force ≤ 30 N
Disengagement force ≥5N
Retention force latch ≥ 110 N
Retention force secondary lock ≥ 60 N
Polarirzation feature effectiveness ≥ 80 N
Application Automotive, Automotive,GPS antennas,TV/video display



HSD Coding:

Black LVDS HSD FAKRA Cable Assembly Code A 4+2 Pin Durable For Car 0Black LVDS HSD FAKRA Cable Assembly Code A 4+2 Pin Durable For Car 1

Our Service:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
