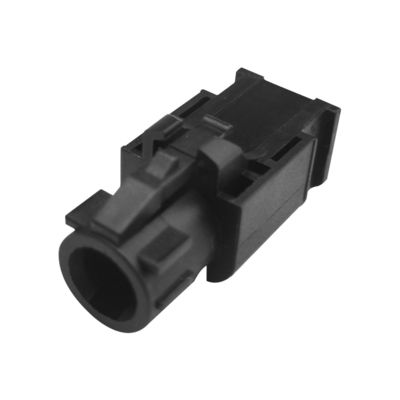

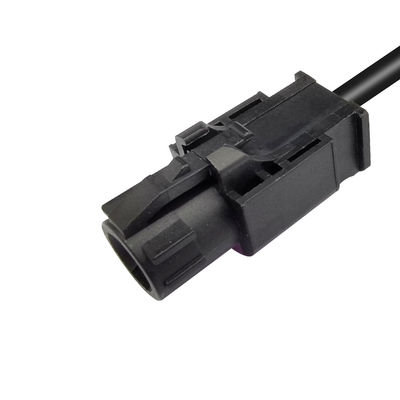

Radio RF Coaxial FAKRA HSD Connector A Code With Housing High Speed Data

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD Cable Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type High Speed Data HSD Cable Connector Code A-Code
Color Black Application Automotive,Audio & Video
Business Type OEM & ODM MOQ 20 PCS
High Light

Radio FAKRA HSD Connector

,

RF FAKRA HSD Connector

,

A Code FAKRA Coax Connector

Leave a Message
Product Description

High Speed Data FAKRA HSD RF Coaxial Connector A Code With Housing For Radio



Product description:

LEADSIGN HSD series connector interconnection system with controlled impedance of 100Ω for high speed data transmission. HSD connectors provide connection solutions for automotive infotainment modules, cameras, consumer device ports and display devices. Featuring good shielding and signal stability, fast transfer rates, cost effectiveness and small size.



Main Feature:

1. 14 different mechanical and color codes.
2. Fully shielded connector systems for different wire sizes and types.
3. Compatible with LVDS, Ethernet and USB protocols.
4. A full range of connectors for unsealed and sealed applications.
5. Primary and secondary locks
6. High grip cables
7. Fast transmission speed

8.MOQ:20 PCS



Applications:

1. Back-up camera
2. Rear entertainment system
3.Digital instrument panel
4.USB 1.0, 2.0, 3.0
5.LVDS
6.Ethernet
7.IEEE 1394 (Firewire)
8.GVIF



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Brand Name LEADSIGN
Series HSD Connector
Temperature Range −40°C to +105°C
Impedance 100 Ω
Signal contact resistance ≤ 10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mating cycles (standard, non waterproof) ≥25
Engagement force ≤ 30 N
Disengagement force ≥5N
Retention force latch ≥ 110 N
Retention force secondary lock ≥ 60 N
Polarirzation feature effectiveness ≥ 80 N
Application Automotive, Automotive,GPS antennas,TV/video display



HSD Coding:

Radio RF Coaxial FAKRA HSD Connector A Code With Housing High Speed Data 0Radio RF Coaxial FAKRA HSD Connector A Code With Housing High Speed Data 1

Our Service:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
