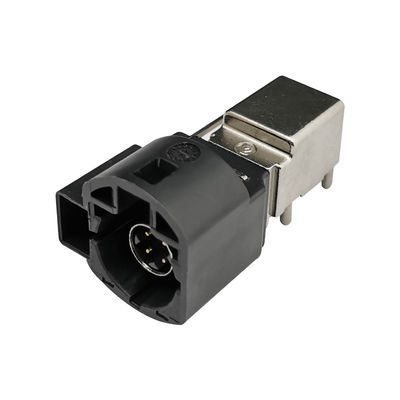

Code A Plug 90 Degree FAKRA RF Connector , 4+2Pin PCB Mount Coaxial Connector

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD PCB Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type High Speed Data HSD PCB Mount Connector Code A-Code
Color Black Orientation Right Angle,90 Degree
Application Automotive,Audio & Video MOQ 20 PCS
High Light

A Plug FAKRA RF Connector

,

90 Degree FAKRA RF Connector

,

4+2Pin PCB Mount Coaxial Connector

Leave a Message
Product Description

RF FAKRA HSD Connector 4+2pin Code A Plug 90 Degree PCB Mount Coaxial Connector



Product description:

HSD is a high performance digital system for low voltage differential signals that protects against crosstalk and external interference. the HSD is a 100Ω fully shielded interconnect system that allows the use of shielded twisted pair cables. The interconnect system is designed for the automotive market, for example, LVDS cameras, USB and IEEE 1394 applications.



Main Feature:

1. Extended PCB connector combinations
2. Primary and secondary locks
3. High grip cable
4. Different codes on plastic housing to eliminate wrong connections
5. Fast transmission speed
6. Fully shielded connection systems for different wire diameters and types
7. Compatible with LVDS (Low Voltage Differential Signaling), Ethernet and USB protocols

8.MOQ:20 PCS



Applications:

1.Automotive electronics
2.Digital infotainment electronics
3.USB 1.0, 2.0, 3.0
4.LVDS
5.Ethernet
6.IEEE 1394 (Firewire)
7.CAN (Controller Area Network)
8.GMSL
9.GVIF



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Brand Name LEADSIGN
Series HSD PCB Connector
Temperature Range −40°C to +105°C
Impedance 100 Ω
Signal contact resistance ≤ 10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mating cycles (standard, non waterproof) ≥25
Engagement force ≤ 30 N
Disengagement force ≥5N
Retention force latch ≥ 110 N
Retention force secondary lock ≥ 60 N
Polarirzation feature effectiveness ≥ 80 N
Application Automotive, Automotive,GPS antennas,TV/video display

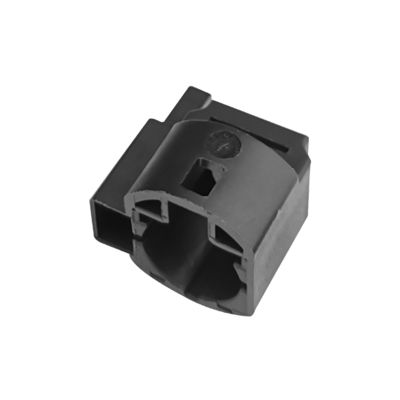

HSD Coding:

Code A Plug 90 Degree FAKRA RF Connector , 4+2Pin PCB Mount Coaxial Connector 0Code A Plug 90 Degree FAKRA RF Connector , 4+2Pin PCB Mount Coaxial Connector 1

Our Service:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
