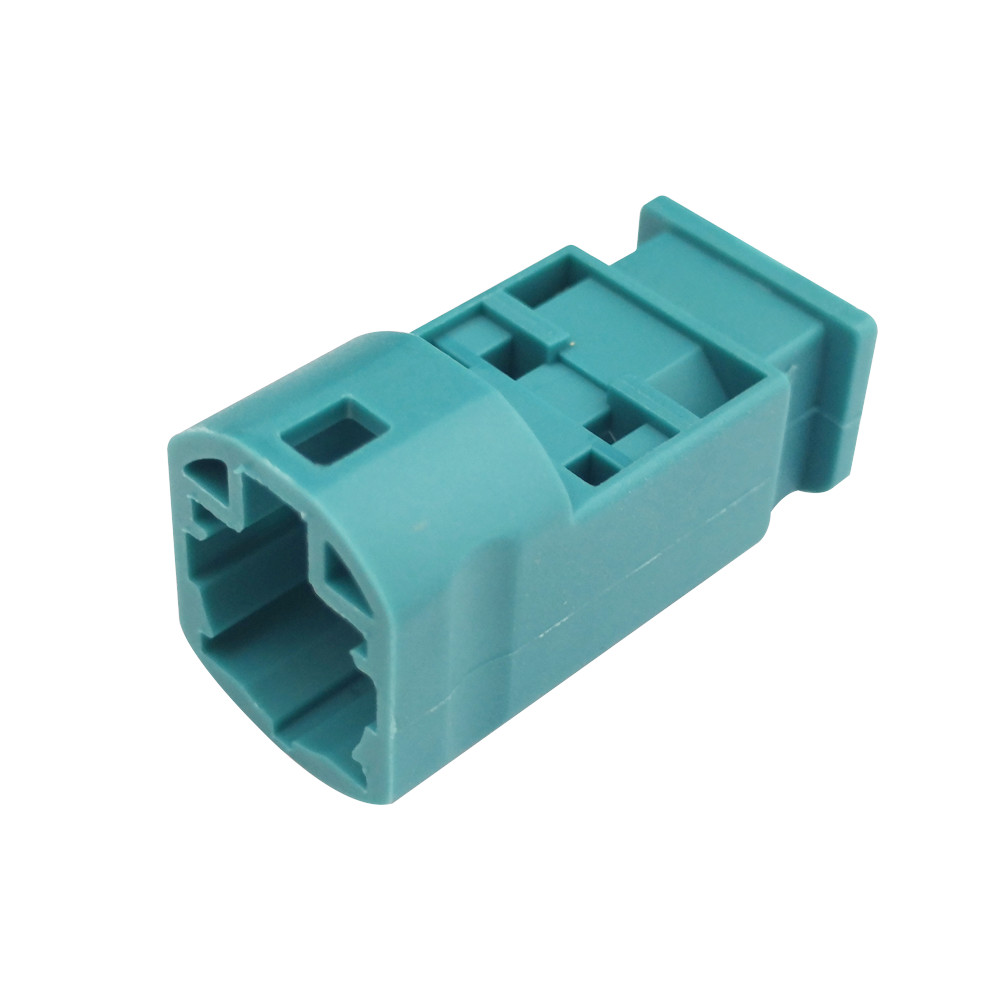

Z Code 4 Pin FAKRA HSD Connector Light Weight For Automotive

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD Cable Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Video Data Transmission, Coaxial Code Z Code
Color Water Blue Pin 4 Pins
Application Advanced Driving Assistant System (ADAS) MOQ 20 PCS
High Light

Z Code FAKRA HSD Connector

,

4 Pin FAKRA HSD Connector

,

Light Weight FAKRA Z

Leave a Message
Product Description

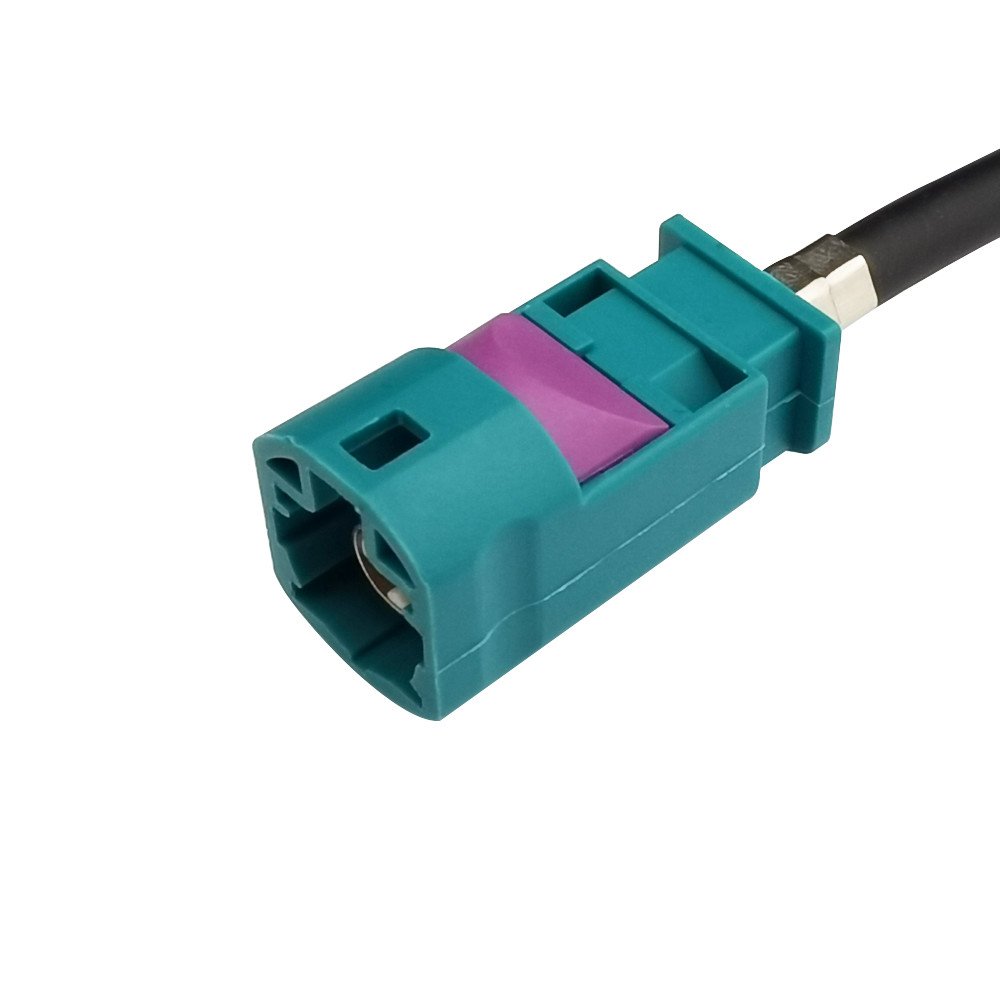

FAKRA HSD Connector Z Code 4Pin Connector With Housing For Automotive



Product description:

HSD connectors provide excellent data transmission by preventing crosstalk and other external sources of interference through LVDS (Low Voltage Differential Signaling). HSD connectors are available in various codes, and to prevent abuse, different codes cannot be matched to each other; only the Z-code is common.



Main Feature:

1. Mechanical and color coding prevents mismatching between different signal paths
2. Primary and secondary locking mechanisms ensure the highest interconnect security
3. Compatible with LVDS, Ethernet and USB protocols
4. Fast transmission speed.
5. Stable signal
6. High interference immunity

7. MOQ:20 PCS



Applications:

1. in-car infotainment system
2. Advanced Driver Assistance Systems (ADAS)
3. Telematics, multimedia, infotainment, GPS, navigation and video
4. HD - Entertainment System
5. LVDS camera system
6.GVIF video transmission
7. Ethernet
8. Antenna



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Body Material Brass / Zinc Diecast
Body Finish Matte Tin / Nickel / Tin
Coupling Mechanism Push-On
Mating Cycles 25 Min
Insulator Material LCP
Signal contacts CuZn / CuSn (Brass,Bronze)
Temperature Range −40°C to +105°C
Contact Resistance 10 MΩ Max(Center)/ 7.5 MΩ Max(Outer)
Dielectric PA / LCP
Gasket Silicone / Rubber
Insulation Resistance 1000 MΩ Min
Dielectric Withstanding Voltage 250 VRMS Min
Crimping ferrule CuSn (Bronze)
Plastic housings and secondary lock PA / PBT
Impedance 100 Ω
Frequency Range DC~6GHz
Voltage Rating 100 VRMS Max Continuous



HSD Coding:

Z Code 4 Pin FAKRA HSD Connector Light Weight For Automotive 0Z Code 4 Pin FAKRA HSD Connector Light Weight For Automotive 1

FAQ:

1.Q: How can I get the cable price list?

A: Please contact us with detailed inquiry information, so we can offer the latest price for you.



2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.


3.Q: How can I get a sample to check the quality of your products?
A: You can contact our customer service, you only need to pay the fee, our sample is free of charge.



4.Q: What’s your payment term?
A: We accept L/C,T/T and Western Union.
