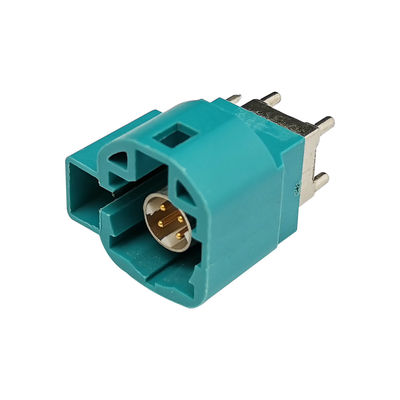

Portable FAKRA Z Type Connector Lightweight 4+2 Pin For Automotive

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD PCB Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Fakra HSD LVDS 4+2 Pin Connector Type PCB/Panel Mount
Code Z-Code,WaterBlue Color Pin 4+2 Pin
Application Advanced Driving Assistant System (ADAS) MOQ 20 PCS
High Light

Portable FAKRA Z Type Connector

,

Lightweight FAKRA Z Type Connector

,

Automotive FAKRA Z Male

Leave a Message
Product Description

FAKRA HSD Connector Z Code 4+2 Pin PCB/Panel Mount Connector For Automotive



Product description:

HSD connectors are designed for the automotive market with fast transmission speed, stable signal, strong anti-interference ability and long service life.HSD connectors have various codes, and to prevent abuse, different codes cannot be matched with each other, only the Z code is common.



Main Feature:

1.Light weight
2.Right angle direction
3.PCB mounting method
4. Fast transmission speed
5.Stable signal
6. High anti-interference capability
7. Compatible with LVDS (Low Voltage Differential Signaling), Ethernet and USB protocols
8. High coding efficiency (different coding on the plastic housing eliminates incorrect connections)

9.MOQ:20 PCS



Applications:

1. in-car infotainment system
2. Advanced Driver Assistance Systems (ADAS)
3. Telematics, multimedia, infotainment, GPS, navigation and video
4. Low Voltage Differential Signaling (LVDS)
5.Ethernet
6. Antenna
7. Sensor device connectivity





Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Body Material Brass / Zinc Diecast
Body Finish Matte Tin / Nickel / Tin
Coupling Mechanism Push-On
Mating Cycles 25 Min
Insulator Material LCP
Signal contacts CuZn / CuSn (Brass,Bronze)
Temperature Range −40°C to +105°C
Contact Resistance 10 MΩ Max(Center)/ 7.5 MΩ Max(Outer)
Dielectric PA / LCP
Gasket Silicone / Rubber
Insulation Resistance 1000 MΩ Min
Dielectric Withstanding Voltage 250 VRMS Min
Crimping ferrule CuSn (Bronze)
Plastic housings and secondary lock PA / PBT
Impedance 100 Ω
Frequency Range DC~6GHz
Voltage Rating 100 VRMS Max Continuous



HSD Coding:

Portable FAKRA Z Type Connector Lightweight 4+2 Pin For Automotive 0Portable FAKRA Z Type Connector Lightweight 4+2 Pin For Automotive 1

FAQ:

1.Q: How can I get the cable price list?

A: Please contact us with detailed inquiry information, so we can offer the latest price for you.



2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.


3.Q: How can I get a sample to check the quality of your products?
A: You can contact our customer service, you only need to pay the fee, our sample is free of charge.



4.Q: What’s your payment term?
A: We accept L/C,T/T and Western Union.
