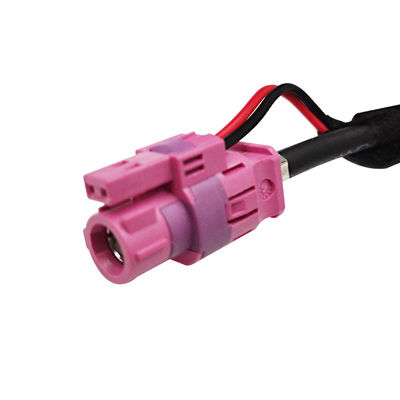

Straight Durable FAKRA HSD Connector H Code 4+2 PIN For LVDS

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD Cable Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Fakra HSD LVDS 4+2 Pin Connector Type Straight
Code H-Code,Heather Violet Pin 4+2 Pin
Application Advanced Driving Assistant System (ADAS) MOQ 20 PCS
High Light

Straight FAKRA HSD Connector

,

Durable FAKRA HSD Connector

,

H Code FAKRA LVDS

Leave a Message
Product Description

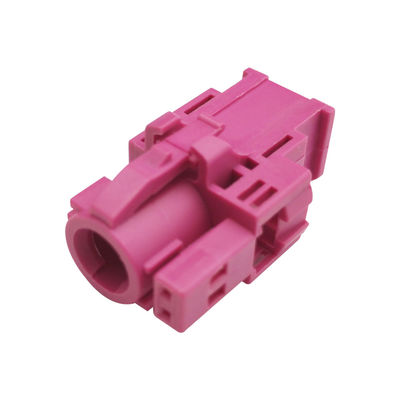

Straight H Code 4+2 PIN FAKRA HSD Connector With Housing For LVDS​



Product description:

HSD connectors can transmit data and signals at frequencies up to 6 GHz without crosstalk interference, making them ideal for the automotive industry. hsd connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer device ports and display devices.



Main Feature:

1.100Ω high-speed data link
2.Light weight
3. High-speed shielded connection system
4. Protection against crosstalk and interference from outside
5. Capable of high-speed data transmission, such as USB, LVDS and Ethernet
6. Automotive-compliant color coding and key-lock efficiency

7.MOQ:20 PCS



Applications:

1.Infotainment system
2.HD - Entertainment System
3.Driver Assistance System
4.Telematics application
5.LVDS camera system
6.GVIF video transmission
7.Ethernet
8.Antenna
9.Sensor device connection
10.Camera / Surround View



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Body Material Brass / Zinc Diecast
Body Finish Matte Tin / Nickel / Tin
Coupling Mechanism Push-On
Mating Cycles 25 Min
Insulator Material LCP
Signal contacts CuZn / CuSn (Brass,Bronze)
Temperature Range −40°C to +105°C
Contact Resistance 10 MΩ Max(Center)/ 7.5 MΩ Max(Outer)
Dielectric PA / LCP
Gasket Silicone / Rubber
Insulation Resistance 1000 MΩ Min
Dielectric Withstanding Voltage 250 VRMS Min
Crimping ferrule CuSn (Bronze)
Plastic housings and secondary lock PA / PBT
Impedance 100 Ω
Frequency Range DC~6GHz
Voltage Rating 100 VRMS Max Continuous



HSD Coding:

Straight Durable FAKRA HSD Connector H Code 4+2 PIN For LVDS 0Straight Durable FAKRA HSD Connector H Code 4+2 PIN For LVDS 1
