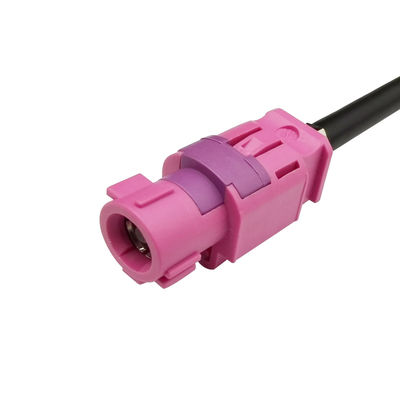

H Code Female FAKRA HSD Connector LVDS 4 Pins For Automotive

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD Cable Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Fakra HSD LVDS 4 Pin Code H-Code
Color Heather Violet Pin 4 Pins
Application Automotive, Vehicle Infotainment Modules, Cameras MOQ 20 PCS
High Light

H Code FAKRA HSD Connector

,

Female FAKRA HSD Connector

,

Automotive FAKRA H

Leave a Message
Product Description

FAKRA HSD Connector H Code Female Connector With Housing For Automotive



Product description:

The HSD connector is protected against crosstalk and other external sources of interference by LVDS (Low Voltage Differential Signaling), resulting in excellent data transmission. The master-slave locking mechanism ensures the highest interconnection security. The main applications are infotainment systems, HD entertainment systems, driver assistance systems, telematics applications or LVDS camera systems.


Main Feature:

1. Mechanical and color coding prevents mismatching between different signal paths
2. primary and secondary locking mechanisms ensure the highest interconnect security
3. Two differential signal pairs can transmit data according to LVDS, GVIF (Gigabit Video Interface), IEEE 1394, USB and Ethernet protocols and specifications
4. Light weight
5. High-speed shielded connection system

6. MOQ:20 PCS



Applications:

1.Infotainment system
2.HD - Entertainment System
3.Driving Assistance System
4.LVDS camera system
5.GVIF video transmission
6. Advanced Driver Assistance System (ADAS)
7.Ethernet
8.Antenna



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Body Material Brass / Zinc Diecast
Body Finish Matte Tin / Nickel / Tin
Coupling Mechanism Push-On
Mating Cycles 25 Min
Insulator Material LCP
Signal contacts CuZn / CuSn (Brass,Bronze)
Temperature Range −40°C to +105°C
Contact Resistance 10 MΩ Max(Center)/ 7.5 MΩ Max(Outer)
Dielectric PA / LCP
Gasket Silicone / Rubber
Insulation Resistance 1000 MΩ Min
Dielectric Withstanding Voltage 250 VRMS Min
Crimping ferrule CuSn (Bronze)
Plastic housings and secondary lock PA / PBT
Impedance 100 Ω
Frequency Range DC~6GHz
Voltage Rating 100 VRMS Max Continuous



HSD Coding:

H Code Female FAKRA HSD Connector LVDS 4 Pins For Automotive 0H Code Female FAKRA HSD Connector LVDS 4 Pins For Automotive 1

Our Service:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
