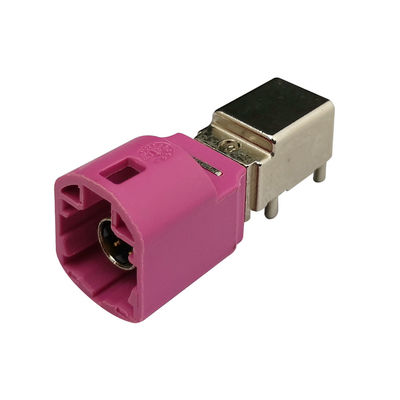

H Code RF FAKRA Male Connector H Code Practical Multipurpose

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD PCB Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type RF Coaxial Connector Connector Type PCB/Panel Mount
Code H-Code,Heather Violet Orientation Straight / Right Angle
Application Automotive,GPS Antennas,TV/video Display MOQ 20 PCS
High Light

H Code FAKRA Male Connector

,

Practical FAKRA Male Connector

,

Multipurpose RF FAKRA Connector

Leave a Message
Product Description

FAKRA HSD Connector Rf Cable Assembly H Code Male Connector With Housing



Product description:

The increasing adoption of telematics in the automotive industry is driving the need for high speed data communication systems in automobiles. the HSD product family is designed for high speed data transmission to meet automotive data rates up to 6 GHz. Lightweight connectors are available in right angle orientation, PCB mounting method and press roll technology.



Main Feature:

1. Extended PCB connector portfolio
2.High-speed shielded connection system
3. Fully shielded connection systems for different wire diameters and types
4. Compatible with LVDS (Low Voltage Differential Signaling), Ethernet and USB protocols
5. Full range of connectors for unsealed and sealed applications
6. High coding efficiency (different coding on the plastic housing eliminates incorrect connections)

7.MOQ:20 PCS



Applications:

1.Car Infotainment System Module
2.Cameras
3.Antennas
4.Satellite Navigation Systems (ADAS)
5.High-speed cable networks
6.Sensor device connections
7.Gateway Switch Module
8.Camera / Surround View



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Body Material Brass / Zinc Diecast
Body Finish Matte Tin / Nickel / Tin
Coupling Mechanism Push-On
Mating Cycles 25 Min
Insulator Material LCP
Signal contacts CuZn / CuSn (Brass,Bronze)
Temperature Range −40°C to +105°C
Contact Resistance 10 MΩ Max(Center)/ 7.5 MΩ Max(Outer)
Dielectric PA / LCP
Gasket Silicone / Rubber
Insulation Resistance 1000 MΩ Min
Dielectric Withstanding Voltage 250 VRMS Min
Crimping ferrule CuSn (Bronze)
Plastic housings and secondary lock PA / PBT
Impedance 100 Ω
Frequency Range DC~6GHz
Voltage Rating 100 VRMS Max Continuous



HSD Coding:

H Code RF FAKRA Male Connector H Code Practical Multipurpose 0H Code RF FAKRA Male Connector H Code Practical Multipurpose 1

Our Service:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
