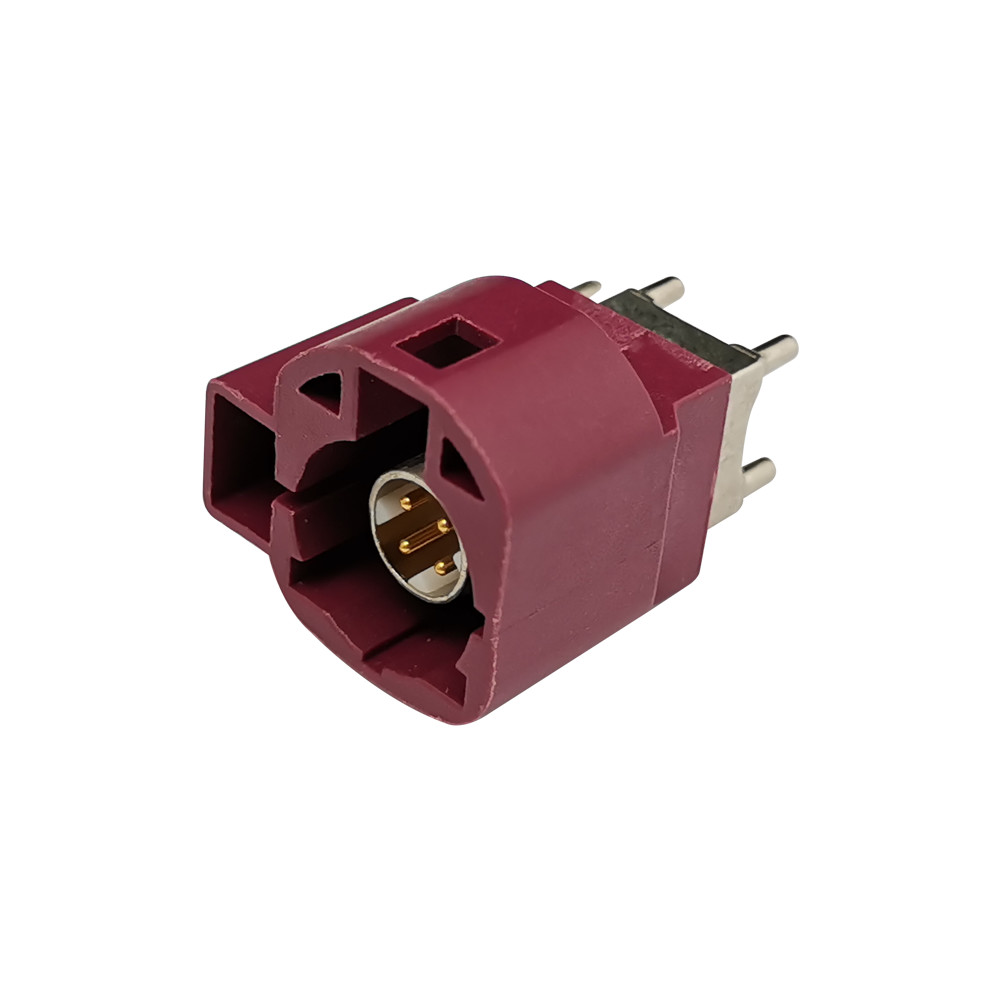

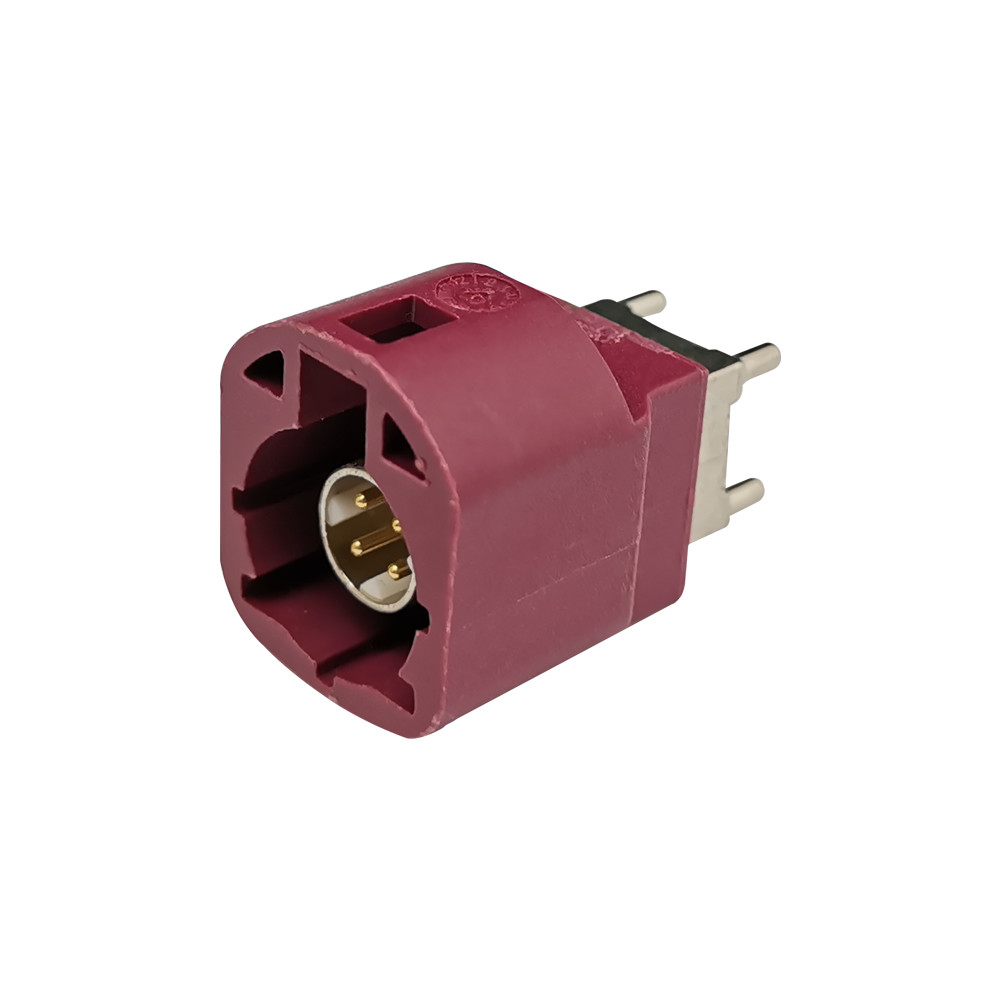

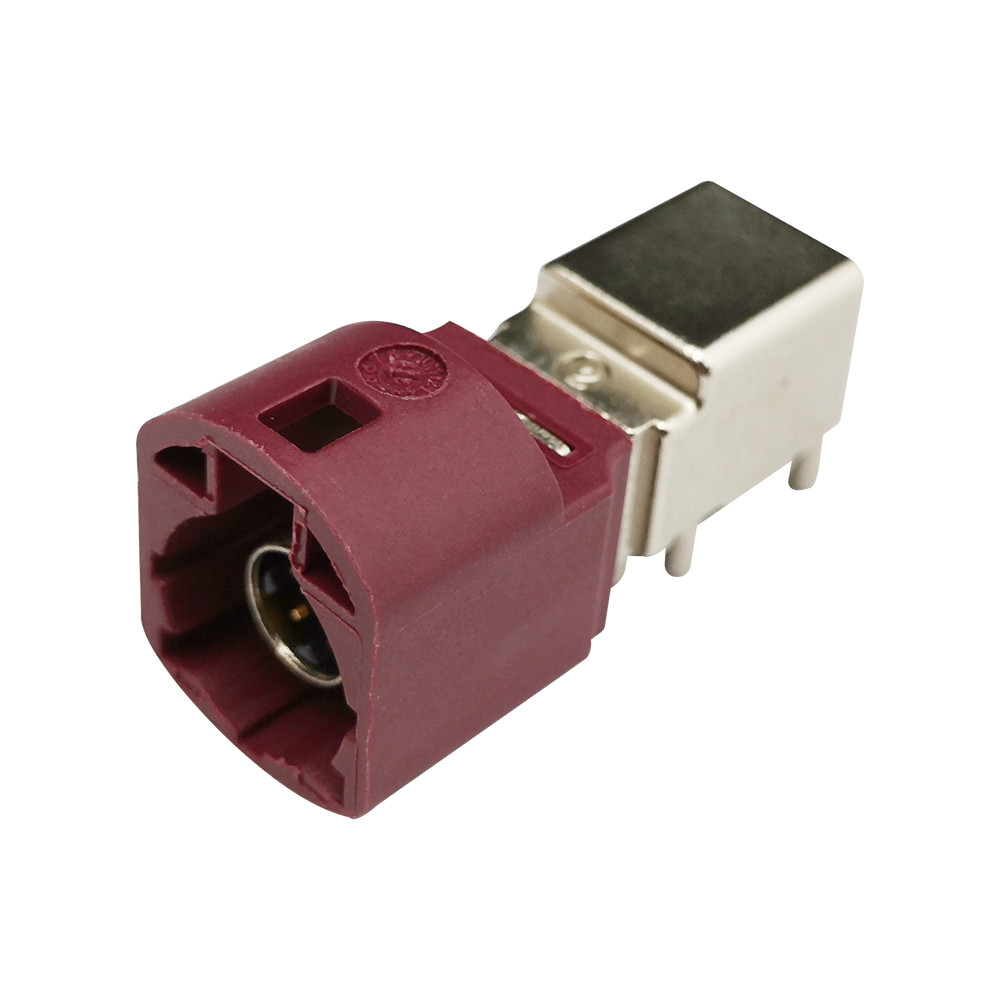

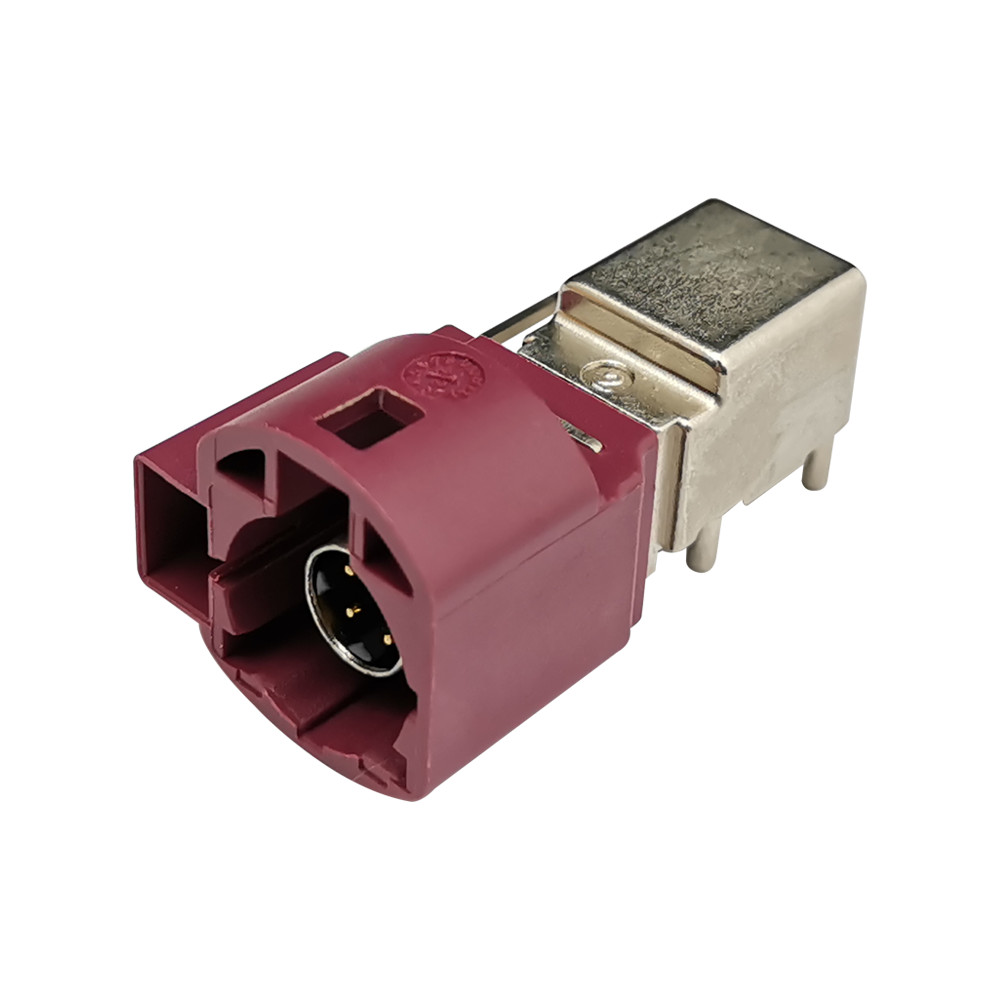

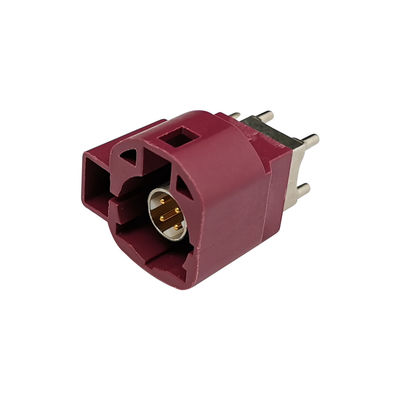

Car GSM FAKRA Antenna Connector , RF Coaxial PCB Mount FAKRA Code D

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD PCB Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type RF Coaxial Connector Code D-Code
Color Claret Violet Connector Type PCB Mount
Gender Male / Female Orientation Straight / Right Angle
Application Telematics, Multimedia, Infotainment, GPS, Navigation MOQ 20 PCS
High Light

Car FAKRA Antenna Connector

,

GSM FAKRA Antenna Connector

,

PCB Mount FAKRA Code D

Leave a Message
Product Description

Fakra HSD Connector D-Code PCB Mount For GSM Antenna Car Video Radio



Product description:

HSD connectors are ideal for high-frequency signal transmission and high-speed data transfer function applications for autonomous driving in the automotive industry. It can prevent crosstalk and interference from outside. Its minimum size can meet global automotive requirements such as LVDS cameras, USB and IEEE 1394 applications.



Main Feature:

1. Fully shielded connector system for different wire sizes and types
2. Wide portfolio of PCB connectors
3. Gigabit video interface (GVIF)
4. Protection against crosstalk and interference from external sources
5. Capable of high-speed data transfer, such as USB, LVDS and Ethernet
6. Automotive-compliant color coding and key-lock efficiency

7. MOQ:20 PCS



Applications:

1.LVDS camera, USB connection, Ethernet
2.Dashboard/Touch Screen
3.Surround camera
4. Vehicle remote diagnostics
5. Rear entertainment system
6. digital instrument panel
7. Advanced Driver Assistance Systems (ADAS)
8. telematics, multimedia, infotainment, GPS, navigation and camera



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Body Material Brass / Zinc Diecast
Body Finish Matte Tin / Nickel / Tin
Coupling Mechanism Push-On
Mating Cycles 25 Min
Insulator Material LCP
Signal contacts CuZn / CuSn (Brass,Bronze)
Temperature Range −40°C to +105°C
Contact Resistance 10 MΩ Max(Center)/ 7.5 MΩ Max(Outer)
Dielectric PA / LCP
Gasket Silicone / Rubber
Insulation Resistance 1000 MΩ Min
Dielectric Withstanding Voltage 250 VRMS Min
Crimping ferrule CuSn (Bronze)
Plastic housings and secondary lock PA / PBT
Impedance 100 Ω
Frequency Range DC~6GHz
Voltage Rating 100 VRMS Max Continuous



HSD Coding:

Car GSM FAKRA Antenna Connector , RF Coaxial PCB Mount FAKRA Code D 0Car GSM FAKRA Antenna Connector , RF Coaxial PCB Mount FAKRA Code D 1

FAQ:

1.Q:Can I get the sample free?
A: Yeah, sample is available, but you need to pay the shipping cost.



2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
