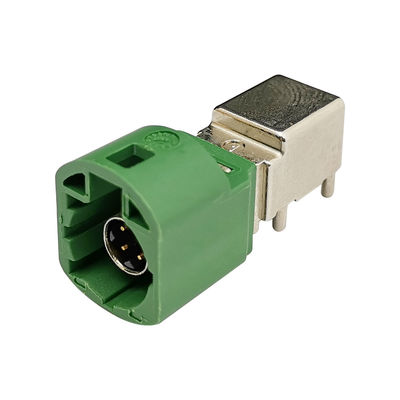

FAKRA HSD Connector PCB Mount Jack E Code Green Color For Radio

Place of Origin CHINA
Model Number HSD PCB Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type RF Coaxial Connector Code E-Code
Color Leaf Green Connector Type PCB Mount
Gender Male / Female Orientation Straight / Right Angle
Application Advanced Driving Assistant System (ADAS) MOQ 20 PCS
Leave a Message
Product Description

FAKRA HSD Connector PCB Mount Jack E Code Green Color For Radio


Product description:

HSD connectors can transmit data and signals at high frequencies, primarily for in-vehicle entertainment systems and high-speed data transmission, without interference from crosstalk, making them ideal for high-frequency signal transmission and high-speed data transmission function applications in the automotive industry for autonomous driving such as advanced driver assistance systems (ADAS), low-voltage differential signaling (LVDS) and Ethernet.


Main Feature:

1. High-speed shielded connection system for digital data with performance up to 6Gbps
2. Light weight, right angle orientation, PCB mounting method
3. Fully shielded connection systems for different wire sizes and types
4. Compliant with LVDS (Low Voltage Differential Signaling), Ethernet and USB protocols
5. Full range of connectors for unsealed and sealed applications
6. High coding efficiency (different coding on plastic housing eliminates incorrect connections)

7. MOQ:20 PCS



1.Automotive electronics
2.Digital infotainment electronics
3.LVDS camera, USB connection, Ethernet
4.Dashboard/touch screen
5.Surround camera
6.Vehicle remote diagnostics


Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.


Technical Specifications:


Body Material Brass / Zinc Diecast
Body Finish Matte Tin / Nickel / Tin
Coupling Mechanism Push-On
Mating Cycles 25 Min
Insulator Material LCP
Signal contacts CuZn / CuSn (Brass,Bronze)
Temperature Range −40°C to +105°C
Contact Resistance 10 MΩ Max(Center)/ 7.5 MΩ Max(Outer)
Dielectric PA / LCP
Gasket Silicone / Rubber
Insulation Resistance 1000 MΩ Min
Dielectric Withstanding Voltage 250 VRMS Min
Crimping ferrule CuSn (Bronze)
Plastic housings and secondary lock PA / PBT
Impedance 100 Ω
Frequency Range DC~6GHz
Voltage Rating 100 VRMS Max Continuous


HSD Coding:

FAKRA HSD Connector PCB Mount Jack E Code Green Color For Radio 0FAKRA HSD Connector PCB Mount Jack E Code Green Color For Radio 1
