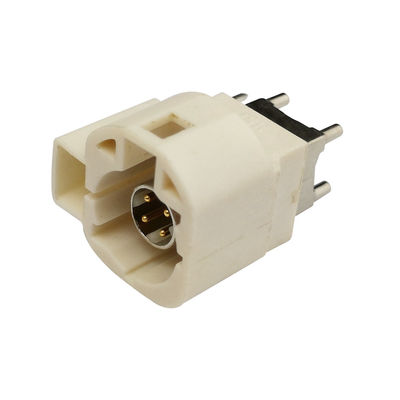

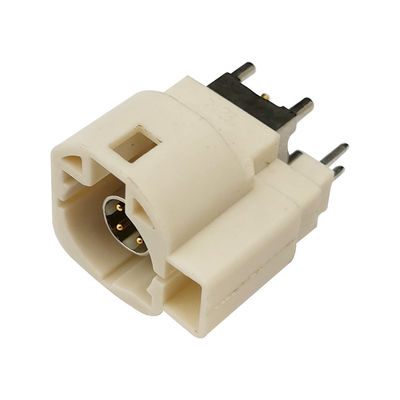

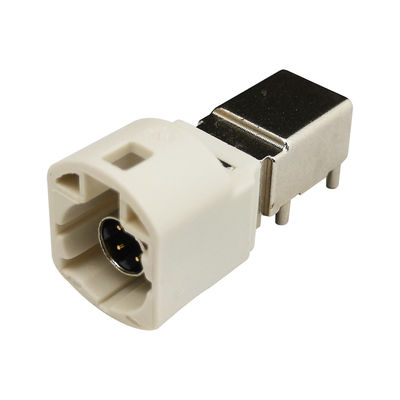

FAKRA HSD Connector B-Code White PCB Mount RF Coaxial Connector For GPS

Place of Origin CHINA
Model Number HSD PCB Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type RF Coaxial Connector Code B-Code
Color White Connector Type PCB Mount
Gender Male / Female Orientation Straight / Right Angle
Application Automotive,GPS Antennas,TV/video Display MOQ 20 PCS
Leave a Message
Product Description

FAKRA HSD Connector B-Code White PCB Mount RF Coaxial Connector For GPS


Product description:

HSD connectors can transmit data and signals at high frequencies, primarily for in-vehicle entertainment systems and high-speed data transmission, without interference from crosstalk, making them ideal for high-frequency signal transmission and high-speed data transmission function applications in the automotive industry for autonomous driving such as advanced driver assistance systems (ADAS), low-voltage differential signaling (LVDS) and Ethernet.


Main Feature:

1. Light weight, right angle direction, PCB mounting method
2. Primary and secondary locking
3. High cable retention for crimp connections
4. high coding efficiency (different coding on the plastic housing eliminates incorrect connections)
5. Fully shielded connector systems for different wire diameters and types
6. Compliance with LVDS, Ethernet and USB protocols

7. MOQ:20 PCS



1. Automotive

2.Vehicle remote diagnosis
3.Infotainment system
4.USB 1.0, USB 2.0, USB 3.0
7.Electronic infotainment system


Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.


Technical Specifications:


Body Material Brass / Zinc Diecast
Body Finish Matte Tin / Nickel / Tin
Coupling Mechanism Push-On
Mating Cycles 25 Min
Insulator Material LCP
Signal contacts CuZn / CuSn (Brass,Bronze)
Temperature Range −40°C to +105°C
Contact Resistance 10 MΩ Max(Center)/ 7.5 MΩ Max(Outer)
Dielectric PA / LCP
Gasket Silicone / Rubber
Insulation Resistance 1000 MΩ Min
Dielectric Withstanding Voltage 250 VRMS Min
Crimping ferrule CuSn (Bronze)
Plastic housings and secondary lock PA / PBT
Impedance 100 Ω
Frequency Range DC~6GHz
Voltage Rating 100 VRMS Max Continuous


HSD Coding:

FAKRA HSD Connector B-Code White PCB Mount RF Coaxial Connector For GPS 0FAKRA HSD Connector B-Code White PCB Mount RF Coaxial Connector For GPS 1

Our Service:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
