Vertical Type PCB Mount HSD LVDS 4 Pin Connector For Automotive

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD PCB Connector
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Hsd 4 Pin Connector Pins 4p
Orientation Vertical Gender Male / Female
Connector Type PCB Mount Application Automotive,GPS Antennas,TV/video Display
Leave a Message
Product Description

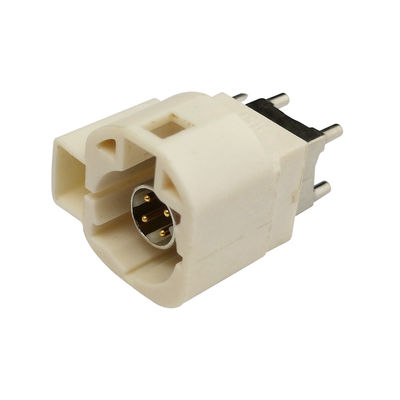

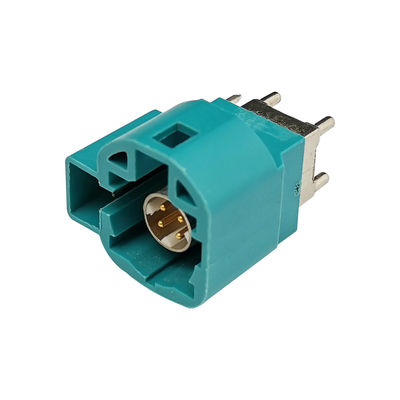

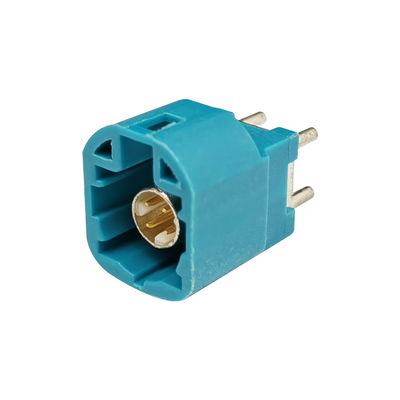

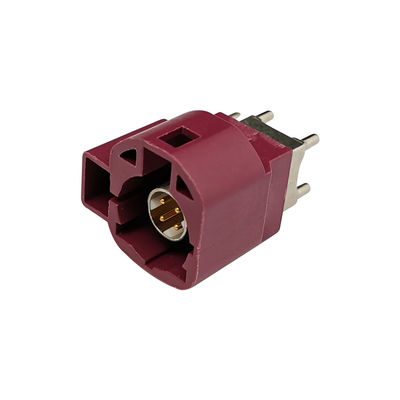

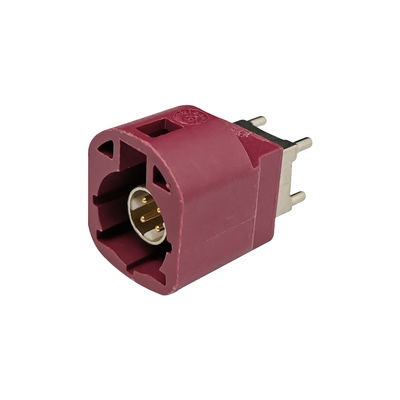

Vertical Type PCB Mount HSD LVDS 4 Pin Connector For Automotive



Product description:

The HSD connection system (High Speed Data) is a high-performance data connection system, which is a fully shielded interconnection system. It is protected against crosstalk and interference from external sources and has a characteristic impedance of 100Q.
HSD can send data based on Low Voltage Differential Signaling (LVDS), and can also be used for USD 2.0/3.0, Ethernet specifications, and has high shielding efficiency.





Main Feature:

1. Extended portfolio of PCB end connectors
2. Fully shielded connector system with different wire diameters and types
3. Compliant with LVDS, Ethernet and USB protocols
4. Full range of connectors for unsealed and sealed applications
5. High coding efficiency
6. No risk of contact pin damage



Applications:

1. Electronic equipment for digital infotainment systems
2.Digital symmetric network
3.USB 1.0, USB 2.0, USB 3.0
4.LVDS
5.Ethernet
6.IEEE 1394



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Body Material Brass / Zinc Diecast
Body Finish Matte Tin / Nickel / Tin
Coupling Mechanism Push-On
Mating Cycles 25 Min
Insulator Material LCP
Signal contacts CuZn / CuSn (Brass,Bronze)
Temperature Range −40°C to +105°C
Contact Resistance 10 MΩ Max(Center)/ 7.5 MΩ Max(Outer)
Dielectric PA / LCP
Gasket Silicone / Rubber
Insulation Resistance 1000 MΩ Min
Dielectric Withstanding Voltage 250 VRMS Min
Crimping ferrule CuSn (Bronze)
Plastic housings and secondary lock PA / PBT
Impedance 100 Ω
Frequency Range DC~6GHz
Voltage Rating 100 VRMS Max Continuous



Our Service:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
