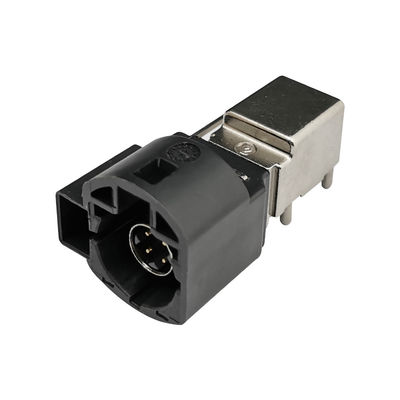

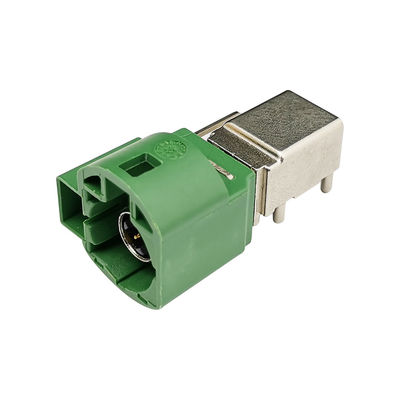

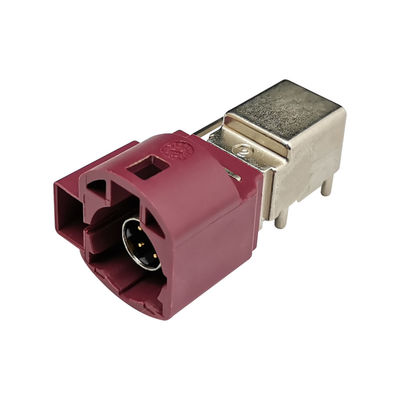

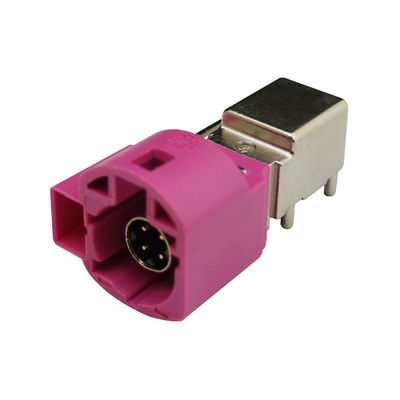

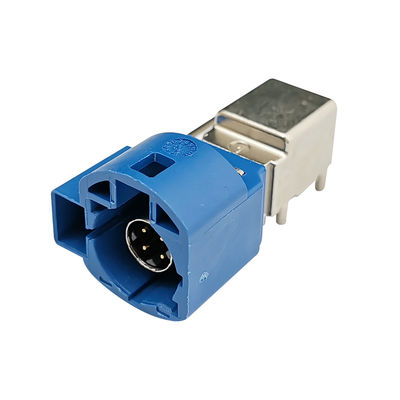

High Speed Data Right Angle Type PCB Mount 4+2 Pin HSD LVDS Cable Connector



Product description:

LEADSIGN offers advanced specialized automotive connectors and wire and cable to meet the demand for high-speed data transmission connections in vehicles.HSD connection system is a high performance, highly shielded data system for low voltage differential signals with a characteristic impedance of 100Ω using shielded twisted pair cable. Designed for the automotive market, HSD can be used in applications such as LVDS cameras, USB and IEEE1394 to meet a variety of needs.



Main Feature:

1. Primary and secondary locking
2. Crimp connection
3. Funnel insertion design on the internal conductor of the jack
4. Plastic dome to protect the plug pins
5. High cable retention force
6. High coding efficiency
7. No risk of contact pin damage
8. Anti-slant plug



Applications:

1.Industrial electronics
2. Telecommunications industry, such as radio base stations
3. Electronic equipment for digital infotainment systems
4.Digital symmetric networks
5.LVDS
6.Ethernet
7.IEEE 1394 (FireWire)



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of HSD connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



HSD
Impedance 100Ω
Frequency DC to 2.0 GHz
Return loss

≥ 20 dB to 1.0 GHz

≥17 dB to 2.0 GHz

Test voltage 250 V rms
Working Voltage 100 V rms
Mating cycles 25
Engagement force ≤60 N
Disengagement force 5N
Retention force latch ≥110N
Retention force primary lock ≥80 N
Coding efficiency ≥80 N
Temperature range -40°C to +105°C
