Product Details
Product Name HSD LVDS CABLE Fastening Type Push On
Pins 4p Frequency High
Connector Type Crimp Cable Mount Application Automotive, Car GPS,Car FM
Leave a Message
Product Description

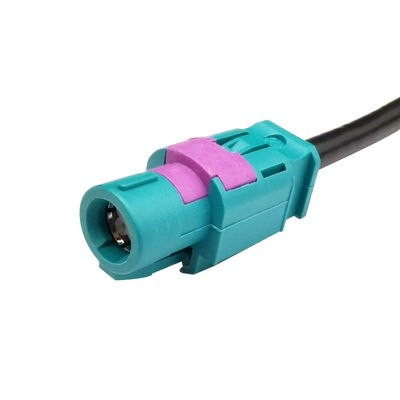

Best Quality HSD Cable Connector Waterblue HSD Code Z For Car Video Or Audio

Product description:

HSD (High Speed Data) connector shielded interconnect system with color coding to meet automotive requirements.HSD connector system with ultra small size to meet various automotive requirements such as LVDS camera, USB and IEEE 1394 applications.

Main Feature:

1.High-performance digital systems for low-voltage differential signals.
2.Protection against crosstalk and interference from external signal sources.
3.High holding power.
4.Cable side designed for crimp connections.
5.High reliable connection, good contact and firm not loose.
6.Have their own unique coding, coding and color are used for different purposes.
7.Have multiple types of integration.


Applications:
1. Advanced Driver Assistance Systems (ADAS)
2. Telematics, multimedia, infotainment, GPS, navigation and cameras
3. Body control, safety, security and comfort


Technical Specifications:



Body Material Brass / Zinc Diecast
Body Finish Matte Tin / Nickel / Tin
Coupling Mechanism Push-On
Mating Cycles 25 Min
Insulator Material LCP
Signal contacts CuZn / CuSn (Brass,Bronze)
Temperature Range −40°C to +105°C
Contact Resistance 10 MΩ Max(Center)/ 7.5 MΩ Max(Outer)
Dielectric PA / LCP
Gasket Silicone / Rubber
Insulation Resistance 1000 MΩ Min
Dielectric Withstanding Voltage 250 VRMS Min
Crimping ferrule CuSn (Bronze)
Plastic housings and secondary lock PA / PBT
Impedance 100 Ω
Frequency Range DC~6GHz
Voltage Rating 100 VRMS Max Continuous
