High Speed Data Automotive Straight 4+2 Pin HSD LVDS Cable Connector

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD Cable Connector
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number HSD 4+2PIN Connector Temperature Range -40° ~ +105°C
Type SMB Orientation Straight
Fastening Type Push In Application Automotive,Audio & Video
Leave a Message
Product Description

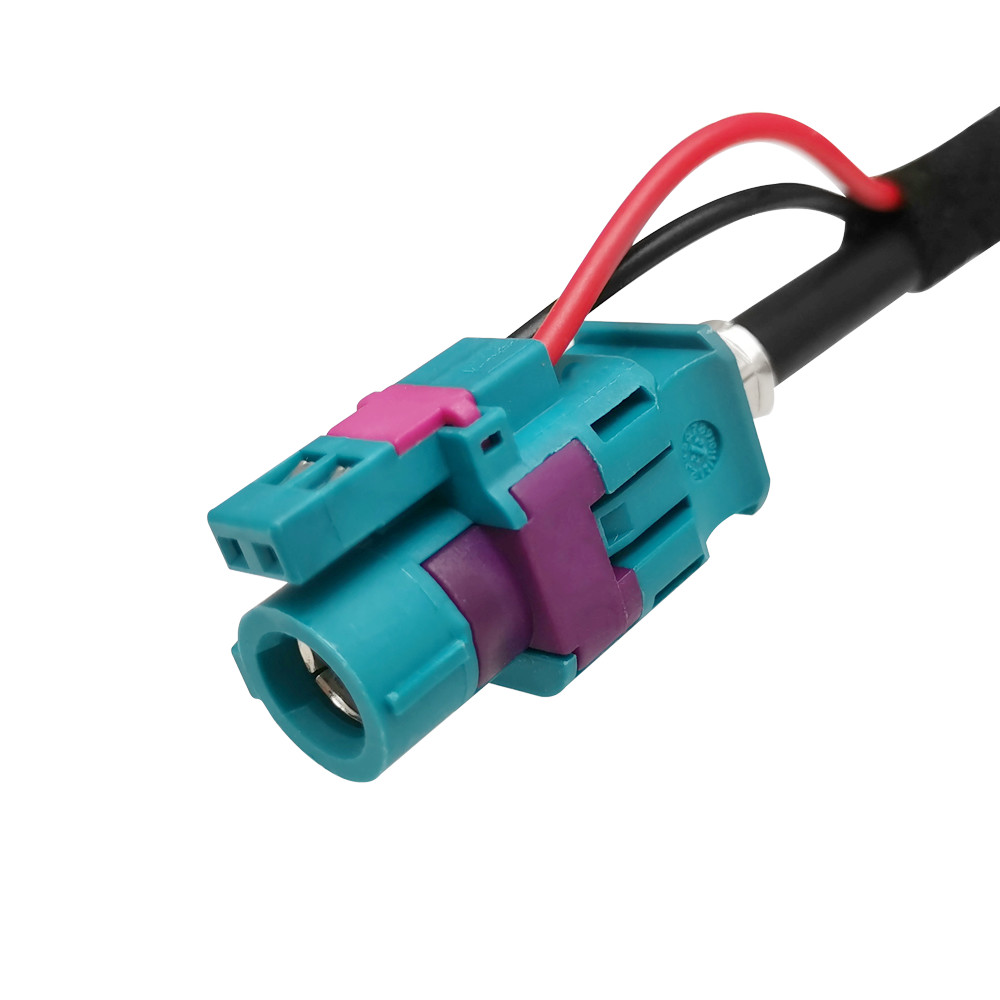

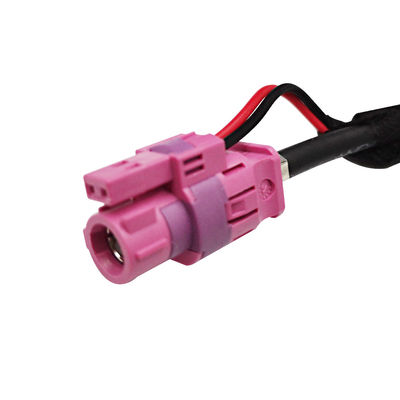

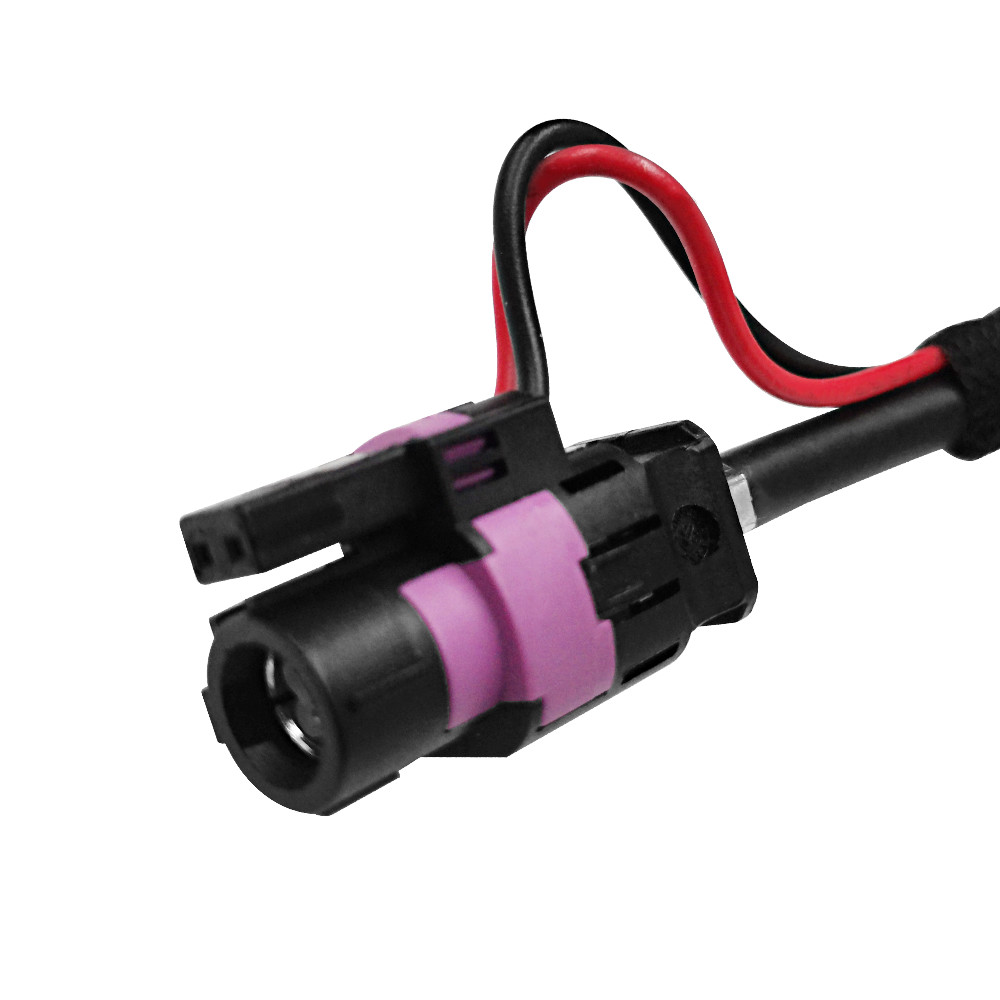

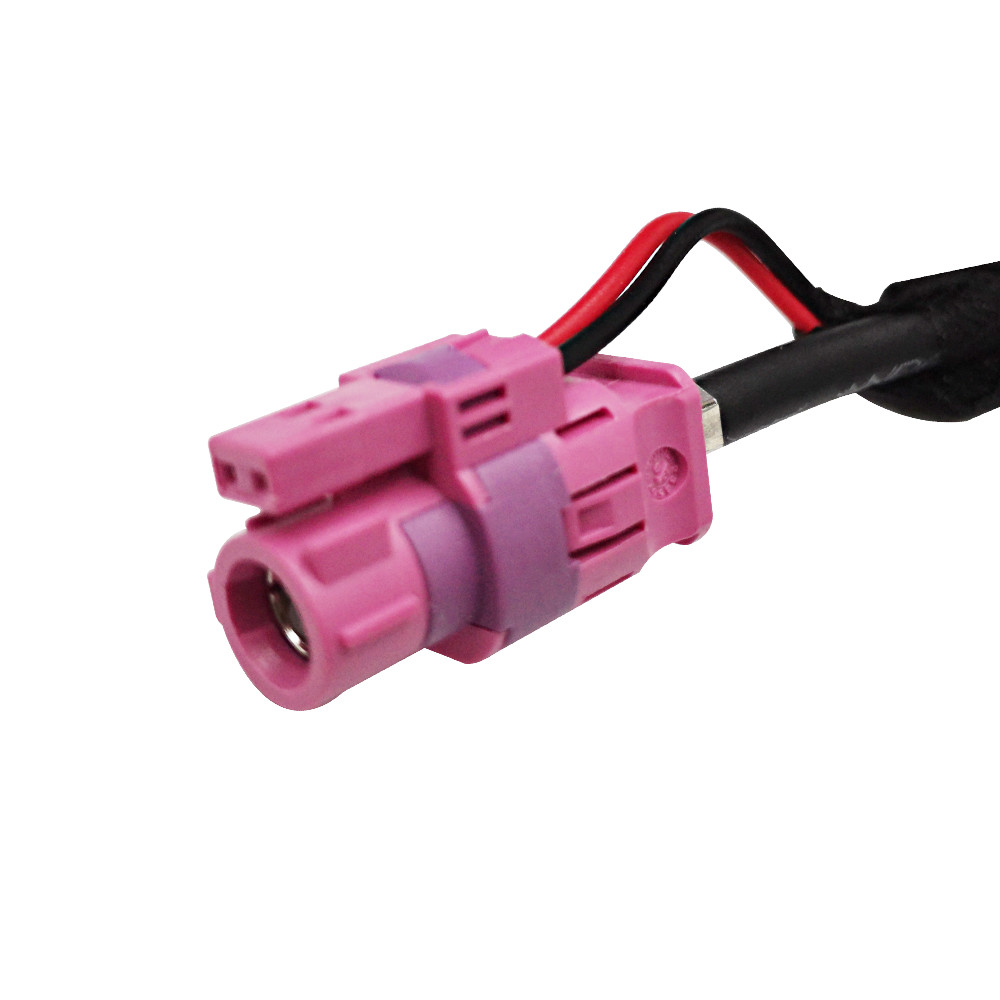

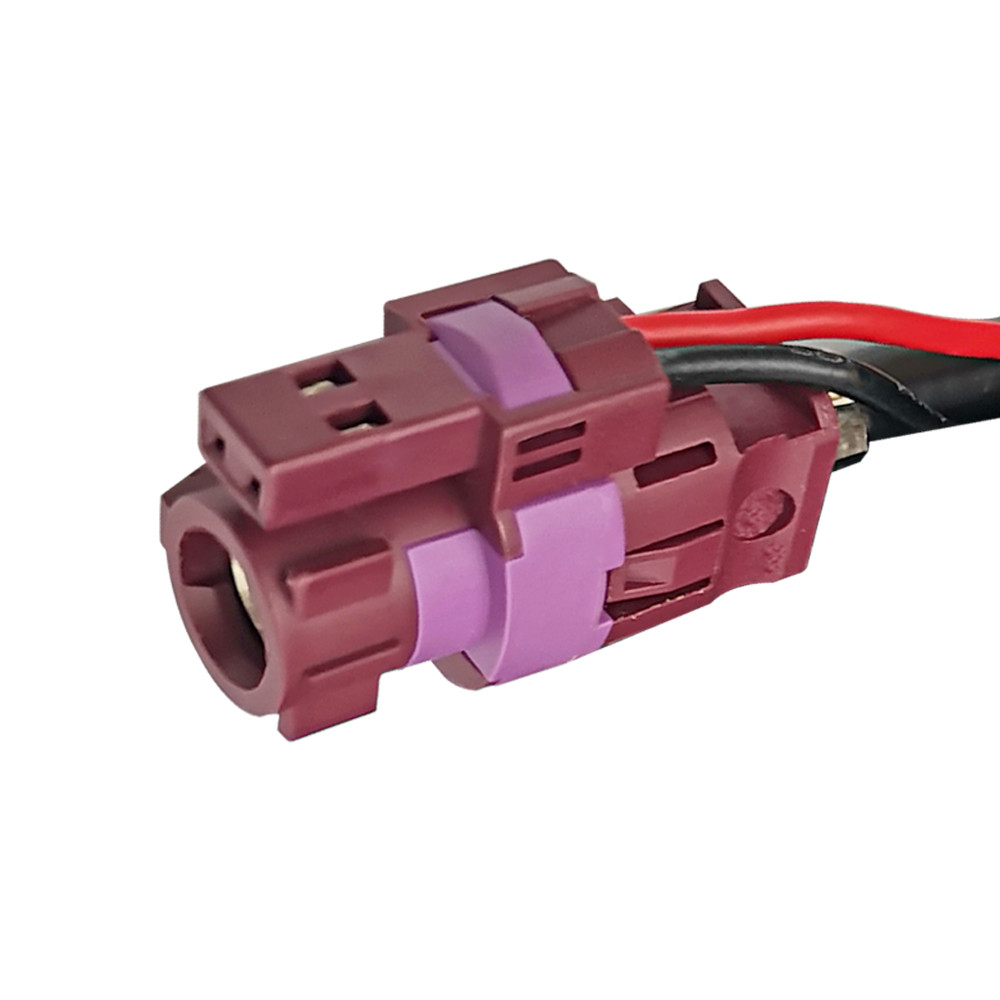

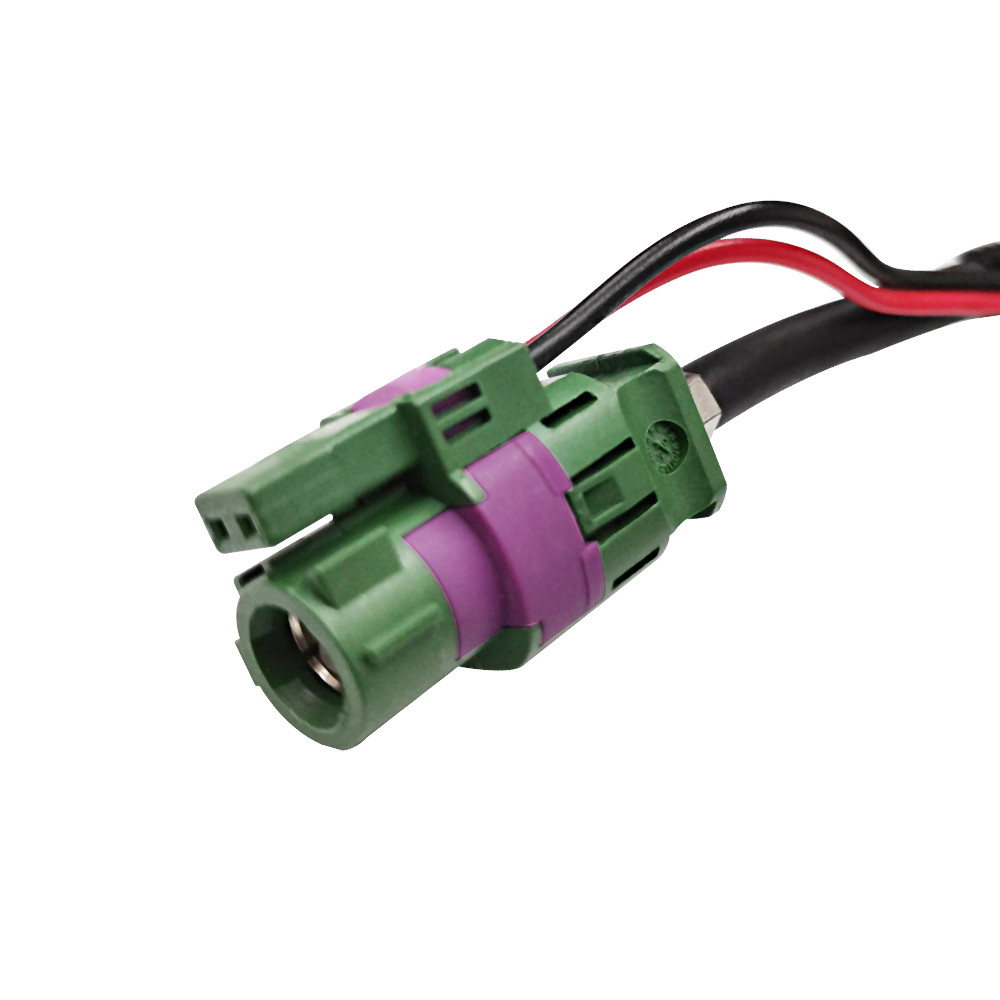

High Speed Data Automotive Straight 4+2 Pin HSD LVDS Cable Connector



Product description:

LEADSIGN offers advanced specialized automotive connectors and wire and cable to meet the demand for high-speed data transmission connections in vehicles.HSD+2, +4, +8 Connectors (on request) power pin connectors – further variants with additional pins (MQS contacts) for power supply purposes.



Main Feature:

1. Data rate up to 6Gbps
2. Prevents misuse due to secure coding system
3. High assembly security due to the primary and secondary locking system
4. Reliable and durable
5. Multiple housings for space saving and fast insertion operation
6. Fully shielded connector system with different wire diameters and types
7. Compliant with LVDS, Ethernet and USB protocols
8. Full range of connectors for unsealed and sealed applications



Applications:

1.In-vehicle entertainment system
2.High-speed data transmission
3.Smart Antenna
4.In-vehicle camera
5.Streaming rearview mirror
6.Virtual instrumentation
7.Electronic large screen



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of HSD connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



HSD
Impedance 100Ω
Frequency DC to 2.0 GHz
Return loss

≥ 20 dB to 1.0 GHz

≥17 dB to 2.0 GHz

Test voltage 250 V rms
Working Voltage 100 V rms
Mating cycles 25
Engagement force ≤60 N
Disengagement force 5N
Retention force latch ≥110N
Retention force primary lock ≥80 N
Coding efficiency ≥80 N
Temperature range -40°C to +105°C



FAQ:

1.Q:Can I get the sample free?
A: Yeah, sample is available, but you need to pay the shipping cost.



2.Q: Do you accept customizable orders?
A: Yes, we accept OEM & ODM.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
