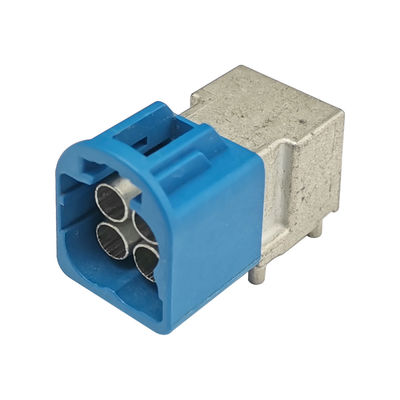

Mini Fakra Connector Modular Housings for Quad 4 Positions Right Angle Types
| Place of Origin | China |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | Mini Fakra Connector |
| Minimum Order Quantity | 20PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector Type | PCB/Panel Mount | Service | OEM & ODM Is Accepted |
|---|---|---|---|
| Code | Z-code | Application | Automotive |
| Number Of Positions | 4 | PCB Connectors | Right Angle |
| Modular Housings | Quad | Impedance | 50Ω |
Product Description
Product Description:
In the rapidly evolving automotive industry, the demand for high-speed, reliable data transmission has become non-negotiable. Modern vehicles, equipped with advanced driver-assistance systems (ADAS), 4K infotainment units, and autonomous driving modules, require connectors that can handle massive data flows without compromising signal integrity. This is where Mini Fakra connectors shine. Engineered for precision, these compact yet robust components support frequencies up to 6 GHz, enabling seamless transmission of high-resolution camera feeds, LiDAR data, and real-time navigation updates. Their space-saving design—60% smaller than traditional FAKRA connectors—makes them ideal for integration into densely packed electronic control units (ECUs) and sensor clusters. Mini Fakra connectors empower automakers to deliver cutting-edge performance while adhering to stringent safety and durability standards.
Mini FAKRA Coding:
Features:
- Miniaturized Form Factor: Engineered for High-Density Applications
- Effective Shielding: Shields against interference for stable signal quality.
- Space Optimization: Quad-configuration reduces footprint by 50% vs. single connectors
- Error-Proof Installation: Color-coded terminals (A/B/C/D codes) and tactile snap-in design enable tool-free assembly
- Foolproof Colors: Universal color codes prevent misconnections.
- Reliable Communication: Fast and dependable automotive communication.Features:
Technical Parameters:
| Application | Automotive |
| Modular Housings | Quad |
| Service | OEM & ODM Is Accepted |
| Color | Water blue |
| Code | Z-code |
| PCB connectors | Right Angle |
| Impedance | 50Ω |
| Connector Type | PCB/Panel Mount |
Applications:
- Global Navigation Satellite System
- Broadcast Antenna System
- Advanced Driver Assistance Systems
- Camera Monitoring System
- In-Vehicle Infotainment
- Digital Instrument Cluster
Customization:
We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.
Support and Services:
The samples are free. Customers only need to pay for the express delivery fee
Accept OEM and ODM orders
Fast delivery and first-class service
Multiple payment methods
Support multiple logistics methods
