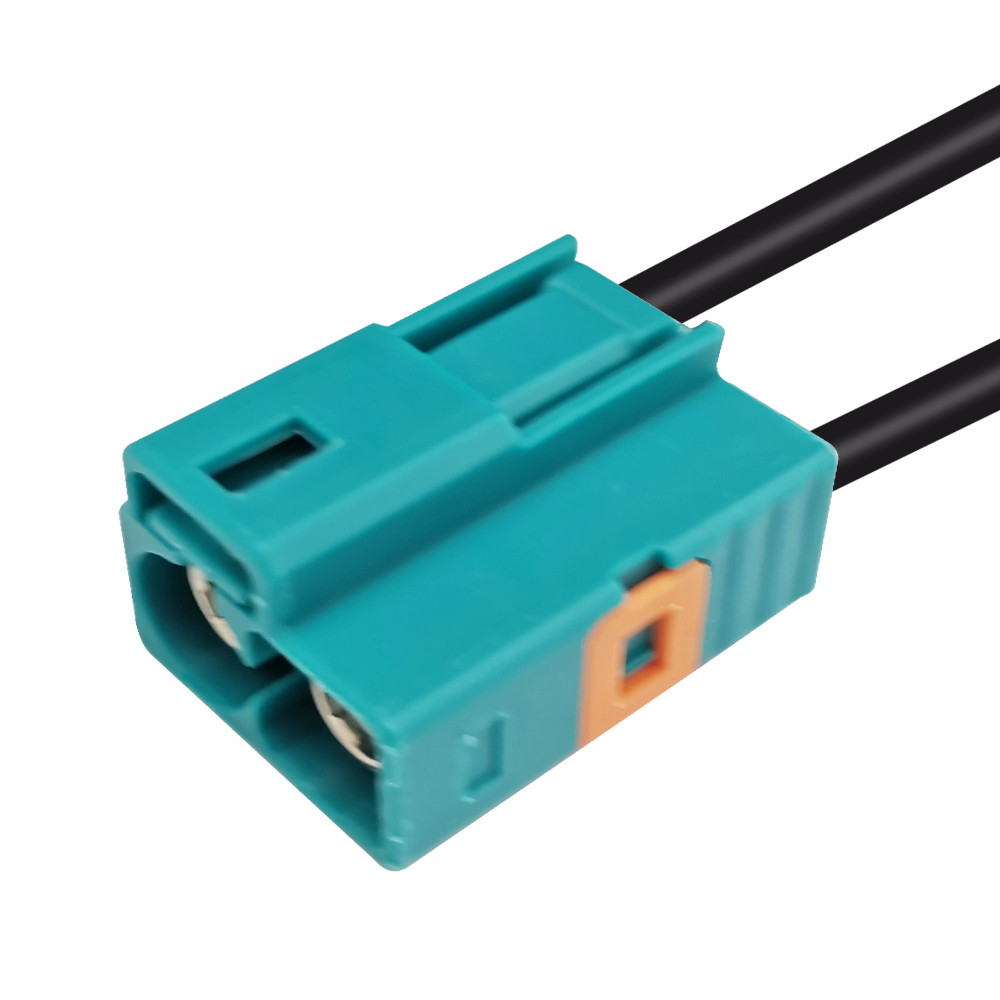

Two CVBS Camera Dual FAKRA Connector , Lightweight FAKRA Male Connector

Place of Origin CHINA
Brand Name LEADSIGN
Certification RoHS
Model Number LDS-HFM-Cable2
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number Mini Fakra Cable Connector Application Automotive
Impedance 50Ω Gender Male
Definition 2 Pin MOQ 20 PCS
Service OEM & ODM Is Accepted
High Light

CVBS Dual FAKRA Connector

,

Camera Dual FAKRA Connector

,

Lightweight FAKRA Male Connector

Leave a Message
Product Description

Mini FAKRA Connector For Two CVBS Camera Or Two Antenna Device



Product description:

High Speed FAKRA-Mini (HFM) is the best performing coaxial "mini-coax" connector system in the automotive industry. A mini Fakra 4-in-1 or dual port design with anti-false snap feature. For frequencies up to 20 GHz, this intelligent modular system ensures fast transmission of high data rates of up to 28 Gbps. It can be used in both sealed and unsealed applications.



Main Feature:

1. Smaller size and less space occupied.
2. High integration degree. Provide 4-in-1 or even 5-in-1 type.
3. Support higher transmission rate. Up to 20Gbps transmission rate. 4.
4. Support transmission frequency up to 15GHz.
5. Low cost variation. With greatly improved performance and assembly, the cost of HFM in the future will be comparable to FAKRA or even lower than FAKRA.
6. Reliable and stable connection.
7.MOQ:20 PCS



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of FAKRA connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Body Material Brass / Phosphor Bronze / Zinc Diecast
Body Finish Gold / Matte Tin / Nickel / Tin
Contact Material Beryllium Copper / Brass / Phosphor Bronze
Contact Finish Gold
Insulator Material LCP / PBT / PTFE
Impedance 50Ω
Frequency Range DC - 6 GHz
Voltage Rating 335 Volts RMS Continuous
Dielectric Withstanding Voltage 800 VRMS Max
Insulation Resistance 1000 MΩ Min
Contact Current (dependant on cable size) Contact Current (dependant on cable size)
Power Handling 95 W Max @ 1 GHz @ 25ºC
Temperature Range −40°C to +105°C
Mating Cycles 100 Min
Coupling Mechanism Push-On



Others Code:

Two CVBS Camera Dual FAKRA Connector , Lightweight FAKRA Male Connector 0

About Us:

Two CVBS Camera Dual FAKRA Connector , Lightweight FAKRA Male Connector 1Two CVBS Camera Dual FAKRA Connector , Lightweight FAKRA Male Connector 2Two CVBS Camera Dual FAKRA Connector , Lightweight FAKRA Male Connector 3



FAQ:

1.Q: Can your company accept customize?
A: Welcome OEM & ODM..As you know, many connector are customized based on project and application,and we have R&D capability to meet customization requirements.



2.Q:Can you provide samples to me?
A:Yes,we can provide samples to you and you need to pay the shipping cost.



3.Q: How do you solve after-sales service problems?

A: After receiving the goods, if you have any dissatisfaction or other problems, please contact us as soon as possible, and we will give you a quick and reasonable solution, thank you very much!



4.Q:How can I get the product price?

A:Please contact us with detali inquiry information,so we can offer the latest price for you.
