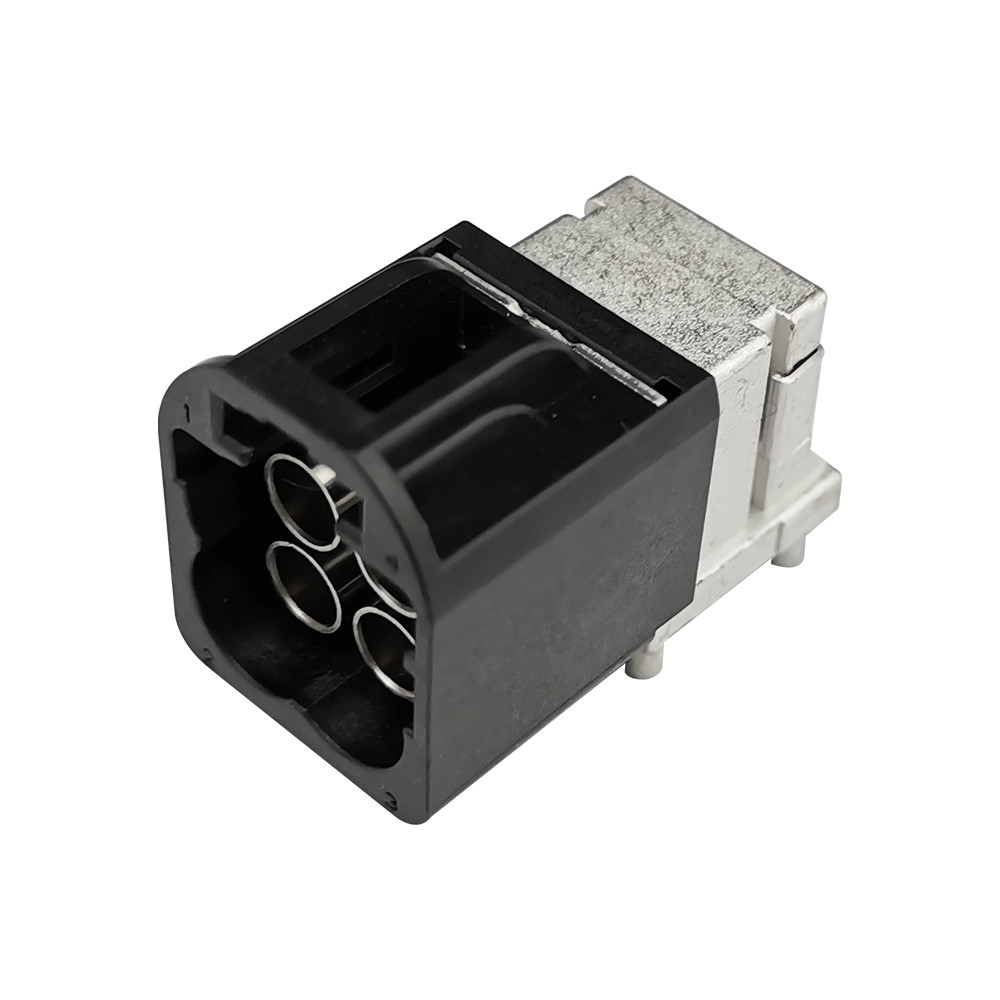

LVDS Female HFM Mini FAKRA Connectors 4 Pins For Car Automation

Place of Origin CHINA
Certification RoHS
Model Number LDS-HFM-PCB4
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Model Number Mini Fakra PCB Connector Application Automotive
Impedance 50Ω Gender Female
Definition 4 Pin Service OEM & ODM Is Accepted
High Light

LVDS Mini FAKRA Connectors


Female Mini FAKRA Connectors



Leave a Message
Product Description

Mini FAKRA HFM LVDS Female 4Pins PCB Connector For Car Automation


Product description:

HFM is the best performing coaxial "mini-coax" connector system for the automotive industry. With space savings of up to 80% compared to conventional FAKRA connectors, the HFM connector system can accommodate a wide range of modules in the smallest of spaces. With HFM, customers can rely on an interface that adapts to future automotive networks, applications and protocols.


Main Feature:

1. Smaller size and less space occupied.
2. Frequency range from DC to 20GHz
3. High data rates up to 28Gbps
4. Modular system - saves up to 80% installation space
5. Cost optimization
6. Real-time data transmission
7. Compliance with all common automotive standards

8.MOQ:20 pcs


Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of FAKRA connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.


Technical Specifications:


Body Material Brass / Phosphor Bronze / Zinc Diecast
Body Finish Gold / Matte Tin / Nickel / Tin
Contact Material Beryllium Copper / Brass / Phosphor Bronze
Contact Finish Gold
Insulator Material LCP / PBT / PTFE
Impedance 50Ω
Frequency Range DC - 6 GHz
Voltage Rating 335 Volts RMS Continuous
Dielectric Withstanding Voltage 800 VRMS Max
Insulation Resistance 1000 MΩ Min
Contact Current (dependant on cable size) Contact Current (dependant on cable size)
Power Handling 95 W Max @ 1 GHz @ 25ºC
Temperature Range −40°C to +105°C
Mating Cycles 100 Min
Coupling Mechanism Push-On


Others Color:

LVDS Female HFM Mini FAKRA Connectors 4 Pins For Car Automation 0

About Us:

LVDS Female HFM Mini FAKRA Connectors 4 Pins For Car Automation 1LVDS Female HFM Mini FAKRA Connectors 4 Pins For Car Automation 2LVDS Female HFM Mini FAKRA Connectors 4 Pins For Car Automation 3



1.Q: Can your company accept customize?
A: Welcome OEM & ODM..As you know, many connector are customized based on project and application,and we have R&D capability to meet customization requirements.


2.Q:Can you provide samples to me?
A:Yes,we can provide samples to you and you need to pay the shipping cost.


3.Q: How do you solve after-sales service problems?

A: After receiving the goods, if you have any dissatisfaction or other problems, please contact us as soon as possible, and we will give you a quick and reasonable solution, thank you very much!


4.Q:How can I get the product price?

A:Please contact us with detali inquiry information,so we can offer the latest price for you.
