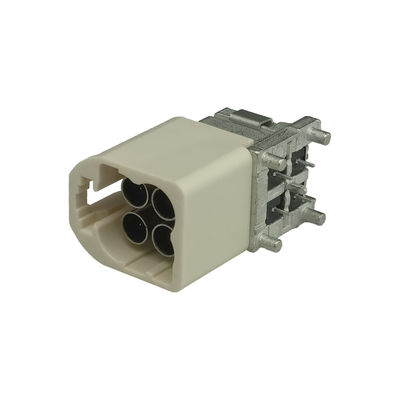

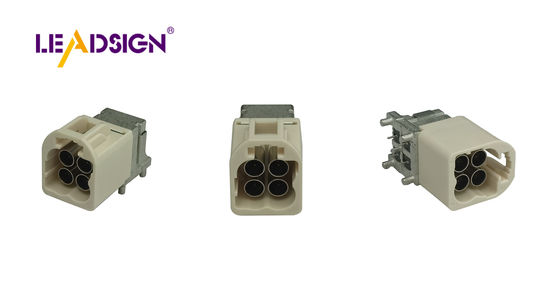

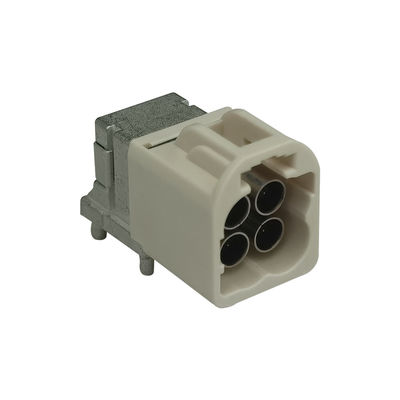

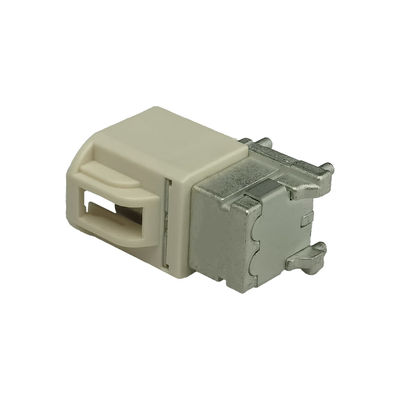

Automotive HFM Fakra-Mini 4P Quad Code B Mini Fakra Connector for PCB
| Place of Origin | CHINA |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | Mini FAKRA Connectors |
| Minimum Order Quantity | 20 PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Category | Mini FAKRA Connectors | Connector | B Code,White Color |
|---|---|---|---|
| Modular Housings | Quad | Impedance | 50Ω |
| Connector Type | PCB/Panel Mount | MOQ | 20PCS |
Product Description
Product Description:
The Mini FAKRA PCB Connector with B code in white color is designed for automotive applications. As part of the HFM series, it represents the next generation of coaxial connectors in the automotive industry, supporting frequencies up to 20 GHz. This connector is ideal for applications requiring reduced weight, smaller installation space, and cost efficiency.
Features:
- Compact Size: The mini FAKRA connector is significantly smaller, saving up to 80% installation space compared to traditional FAKRA connectors.
- High Mechanical Robustness: Built for durability in demanding automotive environments.
- Modular System: Flexible design allows for the integration of multiple components in limited space.
- Cost-Effective: Optimized for reduced costs while maintaining high performance.
- High-Speed Data Transmission: Supports data rates up to 28 Gbps for real-time communication.
- Optional CPA (Connector Position Assurance): Ensures secure and correct connections.
Technical Parameters:
| Impedance | 50Ω |
| Frequency range DC up to | 20 GHz |
| High data rates up to | 28 Gbps |
| Return loss | ≥ 25 dB, DC to ≤ 3 GHz ≥ 20 dB, > 3 GHz to ≤ 6 GHz ≥ 15 dB, > 6 GHz to ≤ 12 GHz ≥ 12 dB, > 12 GHz to ≤ 15 GHz ≥ 10 dB, > 15 GHz to ≤ 20 GHz |
| Mating cycles up to | 25 |
| MOQ | 20PCS |
Applications:
- Autonomous Driving Systems
- Driver Assistance Systems (ADAS)
- Navigation Systems
- Infotainment Systems
- Rear Seat Entertainment
- WiGig (Wireless Gigabit)
Mini FAKRA Coding:
OEM & ODM Orders Accepted:
- We welcome OEM and ODM orders to provide customized solutions tailored to your specific requirements.
Support and Services:
- Fast Delivery & Exceptional Service
- Free Samples: Just cover the courier fee.
- Multiple Logistics Options
- Custom Solutions for Unique Needs
