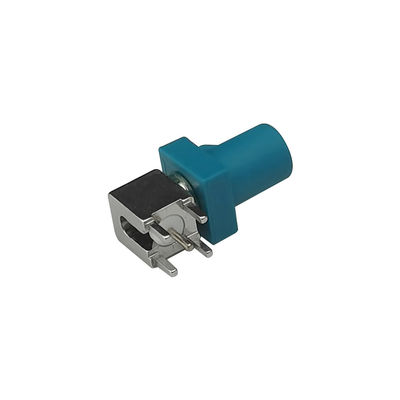

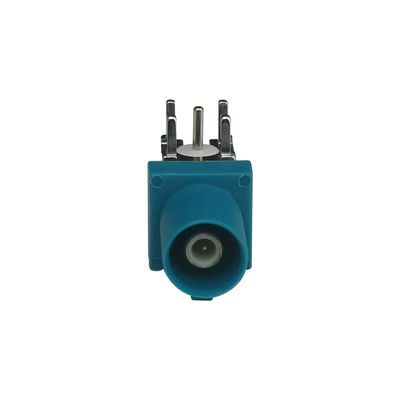

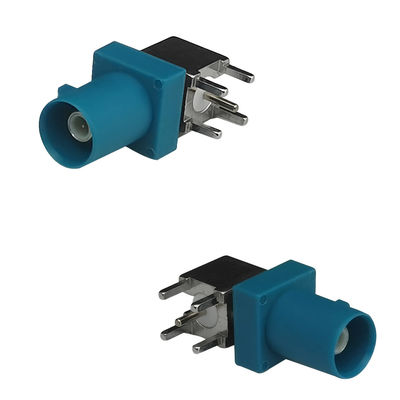

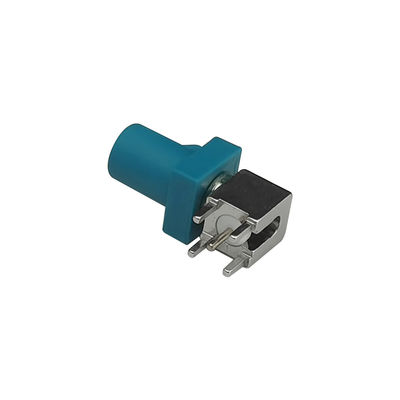

Z Code FAKRA PCB Connector Right Angle Type PCB Mount For GPS Systems
| Place of Origin | China |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | RF Fakra Connector PCB Mount |
| Minimum Order Quantity | 20PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mounting Type | PCB Mount/Panel Mount | Body Orientation | Right Angle Type |
|---|---|---|---|
| Number Of Ports | Single Port | Operating Temperature | -40°C ~ +105°C |
| Coding | Z-code | Impedance | 50Ω |
| Business Type | OEM&ODM | MOQ | 20PCS |
| Highlight | FAKRA PCB Connector For GPS Systems,Z Code FAKRA PCB Connector |
||
Product Description
Product Description:
FAKRA PCB Connectors: Elevate Vehicle Connectivity
FAKRA Connectors are the go-to solution for reliable high-frequency connectivity in vehicles. With straight and elbow options, 13 codes, and a universal code, they offer standardized solutions for diverse applications. The dual locking system ensures robust assembly, ideal for challenging environments and operating between -40 °C to +105 °C. Widely used in automotive systems like radio antennas and GPS, FAKRA Connectors set the standard for efficient high-frequency connectivity. Upgrade your vehicle's connectivity with FAKRA PCB Connectors for enhanced reliability and performance.
FAKRA Connectors are the go-to solution for reliable high-frequency connectivity in vehicles. With straight and elbow options, 13 codes, and a universal code, they offer standardized solutions for diverse applications. The dual locking system ensures robust assembly, ideal for challenging environments and operating between -40 °C to +105 °C. Widely used in automotive systems like radio antennas and GPS, FAKRA Connectors set the standard for efficient high-frequency connectivity. Upgrade your vehicle's connectivity with FAKRA PCB Connectors for enhanced reliability and performance.
Features:
- Impedance 50 Ω:Ensuring optimal signal transmission, the Automotive FAKRA PCB Connectors maintain an impedance of 50 Ω.
- Frequency Range DC up to 6 GHz:These connectors cater to a broad spectrum of high-frequency applications with a frequency range spanning from DC up to 6 GHz.
- High Data Rates up to 8 Gbps:Capable of handling high data rates up to 8 Gbps, these connectors facilitate efficient and rapid data exchange.
- Return Loss ≥ 18 dB:With a return loss of ≥ 18 dB, the connectors effectively preserve strong signal integrity during transmission.
- Temperature Range from -40 °C to +105 °C:Operating within a temperature range from -40 °C to +105 °C, these connectors exhibit resilience in a variety of environmental conditions.
- Mating Cycles ≥ 25:Designed for durability, these connectors offer a minimum of 25 mating cycles, ensuring long-lasting performance.
- 13 Mechanical and Colored Codings and One Neutral Coding:Featuring 13 mechanical and colored codings, along with one neutral coding, these connectors provide versatility in application.
- Primary and Secondary Lock:Equipped with a primary and secondary lock, these connectors offer secure and reliable connections.
- RoHS, WEEE, ELV Conformity:Meeting RoHS, WEEE, and ELV conformity standards, these connectors adhere to environmental regulations and standards.
Technical Parameters:
| Technical Parameters | Description |
|---|---|
| Connector Type | FAKRA PCB Connector |
| Model Number | RF Fakra Connector PCB Mount |
| Body Orientation | Right Angle Type |
| Mounting Type | PCB Mount/Panel Mount |
| Application | Data Transmission, Coaxial |
| Coding | Z-code |
| Operating Temperature | -40°C ~ +105°C |
| Number of Ports | Single Port |
| Business Type | OEM&ODM |
| Key Features | PCB connector, FAKRA RF PCB connector, FAKRA PCB connector assembly |
Applications:
- Radio Antenna: Reliable signal transmission for enhanced connectivity.
- GPS and Navigation: Crucial for precise location-based services.
- Infotainment: Key components for high-quality audio and video playback.
- Mobile Communication: Support seamless in-vehicle connectivity.
- RF Bluetooth/WLAN: Facilitate efficient wireless communication.
- Keyless Entry: Enable secure and convenient remote control.
- Auxiliary Heating: Contribute to efficient temperature control.
- Sensor Integration: Vital for detecting and reacting to environmental factors, ensuring safety and functionality.
FAKRA Coding:
Customization:
Customized FAKRA PCB Connector from LEADSIGN
We accept OEM and ODM orders. Customized cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us. Excellent customer service and technical support are always available to support our customers.
Support and Services:
1.Accept OEM and ODM orders.
2.Samples are free of charge, only the customer has to pay the courier fee.
3.Support multiple logistics methods.
4.Fast delivery time and first-class service.
If you have any questions or need assistance with your FAKRA PCB Connector, please contact us at info@leadsignauto.com.
