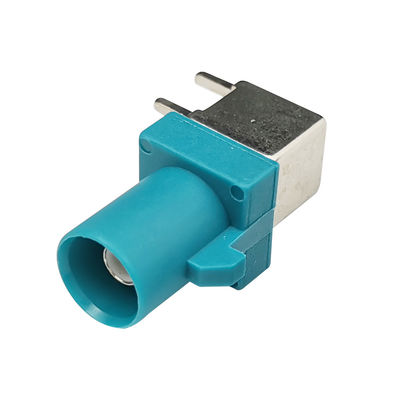

Multipurpose FAKRA PCB Connector Male Z For Automotive Industry

Place of Origin China
Brand Name LDS
Certification E-Mark
Model Number LDS-FAKRA-01ZM
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Carton size 29*13*11CM,20pcs per carton
Delivery Time 7~14 work days
Supply Ability 200000 PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Impedance 100Ω Frequency DC To 6 GHz
Insulation Resistance ≥1000 MΩ Test Voltage 250 V Rms
Working Voltage 100 V Rms Power Current ≤1.5A DC
Working Temperature -40℃ ~ +105℃
High Light

Multipurpose FAKRA PCB Connector

,

FAKRA PCB Connector Male

,

Industry FAKRA Z Male

Leave a Message
Product Description

HSD 4+2 Pin Female Code Z For Automotive Power HSD PCB Connector

Description:

FAKRA connectors have been specially developed for automotive applications. They are based on the SMB connector interface and meet the high requirements of the automotive industry in terms of functionality and safety. Designed for high speed data transfer to meet automotive data transfer rates up to 6 GHz.

Key Feature:
1. High-speed shielded connection system for digital data with performance up to 6Gbps.
2. Advanced mechanical and color coding system with 13 different codes.
3. Maximum assembly security.
4. Coaxial plug-in and cable in a rotatable plastic housing.
5. Highly reliable connection with good contact, firm and no loosening.
6. Can be used in combination with a wide range of protocol interfaces, such as LVDS Ethernet and USB.
7. High level of process automation and global manufacturing footprint
8. MOQ:20 PCS


Technical Specifications:

Material
 Housing  PA
 Center Pin  Copper Alloy
 Outer contact  Zinc Alloy
 Insulator  HTN
Electrical Performance
 Impedance  100 Ω
 Frequency Range  DC to 2 GHz
 Return Loss

 ≥20 dB to 1 GHz
 ≥17 dB to 2 GHz

 Insertion Loss  ≤0.1 dB to 2 GH
 Insulation Resistance  ≥ 1000 MΩ
 Center Contact Resistance  ≤ 8mΩ
 Test Voltage  250 V rms
 Working Voltage  100 V rms
 Contact Current  ≤ 1.5 A DC
Mechanical Performance
 Mating Cycles  ≥ 25 Time
 Engagement Force  ≤ 30 N
 Disengagement Force  ≥5 N
 Retention Force Latch  ≥ 110 N
 Temperature Range  -40 °C ~ +105 °C


Dimension & PCB Layout:
Multipurpose FAKRA PCB Connector Male Z For Automotive Industry 0
Others Code:



Multipurpose FAKRA PCB Connector Male Z For Automotive Industry 1



Product image:
Multipurpose FAKRA PCB Connector Male Z For Automotive Industry 2
FAQ:

1.Q:How do I apply for samples?

   A:You can contact our customer service, you only need to pay the freight, our samples are free.



2.Q:Does your factory accept customized service?

   A:Yes,we accept OEM&ODM.



3.Q:What are your company's strengths?

   A:We have a professional technical team to ensure quality as well as efficiency.
