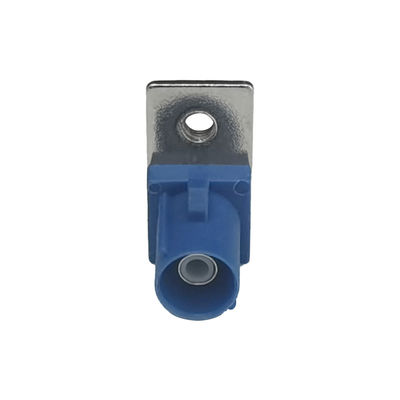

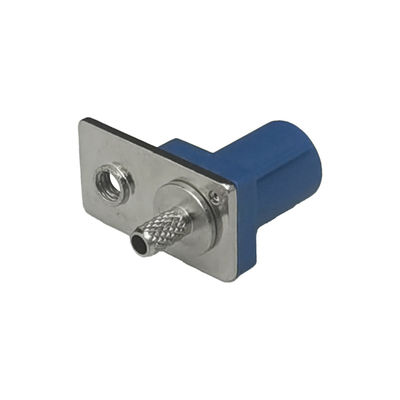

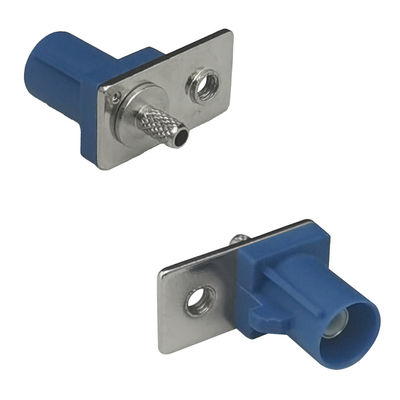

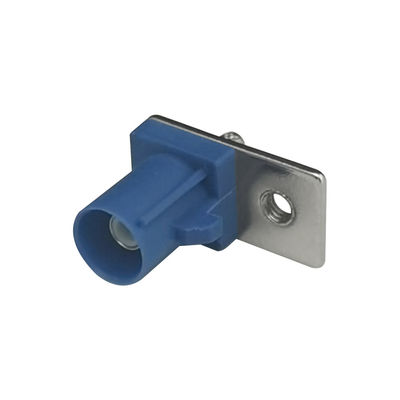

Blue Color FAKRA C Connector PCB Mount For GPS RF Communications Systems
| Place of Origin | China |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | FAKRA PCB Connector |
| Minimum Order Quantity | 20PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector Type | FAKRA PCB Connector | Mounting Type | PCB Mount/Panel Mount |
|---|---|---|---|
| Impedance | 50Ω | Coding | C-code |
| Application | Data Transmission, Coaxial | Number Of Ports | Single Port |
| Operating Temperature | -40°C ~ +105°C | Business Type | OEM&ODM |
| Highlight | Blue Color FAKRA C Connector,FAKRA C Connector For GPS |
||
Product Description
Product Description:
Automotive FAKRA PCB Connectors are indispensable in modern vehicles, providing enhanced connectivity for high-frequency applications. With various configurations, including straight and elbow coaxial cable connectors, they ensure flexible installation. Featuring 13 mechanical and color codes, plus a universal code, these connectors offer a standardized and cost-effective solution for diverse applications. Equipped with dual locking systems, they ensure high assembly reliability, contributing to a stable connection even in challenging environments. Operating between -40 °C to +105 °C, these connectors withstand diverse conditions, making them ideal for applications like radio antennas, GPS, mobile communications, and RF Bluetooth. As a standard for efficient high-frequency connectivity, FAKRA connectors play a crucial role in advancing automotive technology.
Features:
- 50 Ω Impedance: Maintaining precise signal transmission with an impedance of 50 Ω.
- Wide Frequency Range: Designed for diverse high-frequency applications, spanning from DC to 6 GHz.
- High Data Rates: Capable of handling data rates up to 8 Gbps for efficient and rapid exchanges.
- Strong Signal Integrity: Ensures robust signal integrity with a return loss of ≥ 18 dB.
- Temperature Resilience: Operates effectively in temperatures ranging from -40 °C to +105 °C.
- Durable Mating Cycles: Offers a minimum of 25 mating cycles for long-lasting performance.
- Versatile Codings: Features 13 mechanical and colored codings, plus one neutral coding for application versatility.
- Secure Lock Mechanism: Equipped with a primary and secondary lock for secure and reliable connections.
- Environmental Compliance: Meets RoHS, WEEE, and ELV standards, emphasizing environmental responsibility.
Technical Parameters:
| Product Name: | FAKRA PCB Connector |
| Number of Ports: | Single Port |
| Mounting Type: | PCB Mount/Panel Mount |
| Model Number: | RF Fakra Connector PCB Mount |
| Connector Type: | FAKRA PCB Connector |
| Operating Temperature: | -40°C ~ +105°C |
| Coding: | C-code |
| Application: | Data Transmission, Coaxial |
| Impedance: | 50Ω |
| Business Type: | OEM&ODM |
Applications:
- Radio Antenna:The Automotive FAKRA PCB Connectors are used in radio antenna applications, providing reliable interfaces for seamless signal transmission.
- GPS Telematics or Navigation:These connectors contribute to accurate location-based services within vehicles, ensuring precision in GPS telematics and navigation.
- Infotainment & Television:Integral to infotainment and television systems, these connectors enable high-quality audio and video playback for an enhanced in-car entertainment experience.
- Mobile Communication:These connectors play a pivotal role in supporting mobile communication within vehicles, ensuring seamless connectivity.
- RF Bluetooth / WLAN Applications:Facilitating RF Bluetooth and WLAN applications, these connectors ensure efficient wireless communication within the vehicle.
- Radio Frequency Remote Control for Keyless Entry:In the realm of vehicle security, these connectors are utilized for radio frequency remote control, enabling keyless entry systems.
- Vehicle Auxiliary Heating:These connectors support auxiliary heating systems within vehicles, contributing to efficient temperature control for enhanced comfort.
- Sensors for Detection, Evaluation, and Reaction:Integrated into automotive systems, these connectors play a crucial role in connecting sensors for the detection, evaluation, and rapid reaction to various environmental factors.
FAKRA Coding:
Customization:
Customized FAKRA PCB Connector from LEADSIGN
We accept OEM and ODM orders. Customized cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us. Excellent customer service and technical support are always available to support our customers.
Support and Services:
1.Accept OEM and ODM orders.
2.Samples are free of charge, only the customer has to pay the courier fee.
3.Support multiple logistics methods.
4.Fast delivery time and first-class service.
If you have any questions or need assistance with your FAKRA PCB Connector, please contact us at info@leadsignauto.com.
