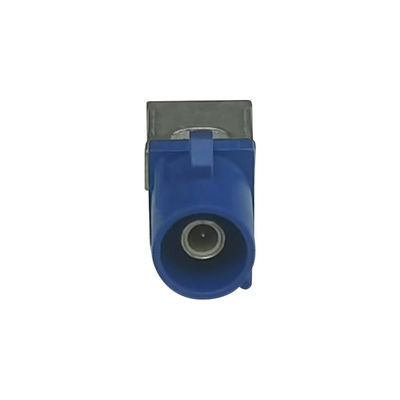

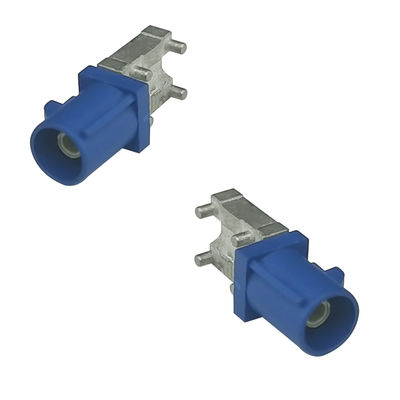

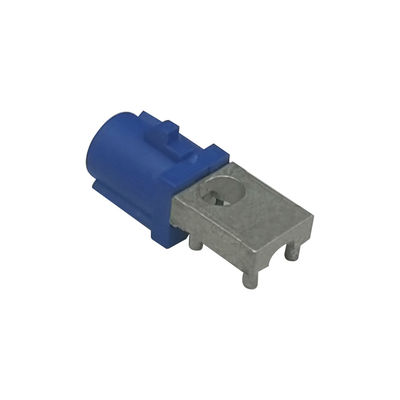

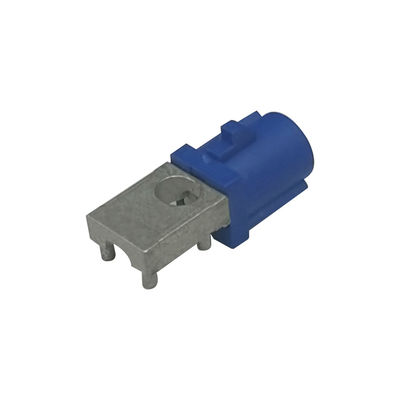

PCB Mount FAKRA C Connector Right Angle Connector For Radio GPS
| Place of Origin | China |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | RF Fakra Connector PCB Mount |
| Minimum Order Quantity | 20PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector Type | FAKRA PCB Connector | Number Of Ports | Single Port |
|---|---|---|---|
| Impedance | 50Ω | Body Orientation | Right Angle Type |
| Application | Data Transmission, Coaxial | Business Type | OEM&ODM |
| MOQ | 20PCS | ||
| High Light | FAKRA C Connector For Radio,FAKRA C Right Angle Connector,PCB Mount FAKRA C Connector |
||
Product Description
Product Description:
Automotive FAKRA PCB Connectors are crucial for high-frequency applications in vehicles, providing strong and reliable connectivity. They offer flexibility with straight and elbow configurations for easy integration into diverse automotive systems. Featuring 13 codes for standardized use, these connectors ensure compatibility and simplify installation. The first and second locking systems ensure high assembly reliability, contributing to a robust connection even in challenging environments. With a temperature range of -40 °C to +105 °C, they withstand diverse conditions, making them ideal for various automotive systems like radio antennas, GPS, mobile communications, and RF Bluetooth applications.
Features:
- Impedance 50 Ω:Ensuring optimal signal transmission, the Automotive FAKRA PCB Connectors maintain an impedance of 50 Ω.
- Frequency Range:These connectors cater to a broad spectrum of high-frequency applications with a frequency range spanning from DC up to 6 GHz.
- High Data Rates:Capable of handling high data rates up to 8 Gbps, these connectors facilitate efficient and rapid data exchange.
- Return Loss:With a return loss of ≥ 18 dB, the connectors effectively preserve strong signal integrity during transmission.
- Temperature Range:Operating within a temperature range from -40 °C to +105 °C, these connectors exhibit resilience in a variety of environmental conditions.
- Mating Cycles:Designed for durability, these connectors offer a minimum of 25 mating cycles, ensuring long-lasting performance.
- Mechanical and Colored Codings:Featuring 13 mechanical and colored codings, along with one neutral coding, these connectors provide versatility in application.
- Locking System:Equipped with a primary and secondary lock, these connectors offer secure and reliable connections.
- Environmental Standards:Meeting RoHS, WEEE, and ELV conformity standards, these connectors adhere to environmental regulations and standards.
Technical Parameters:
| Technical Parameters | Value |
|---|---|
| Model Number | RF Fakra Connector PCB Mount |
| Number of Ports | Single Port |
| Mounting Type | PCB Mount/Panel Mount |
| Coding | C-code |
| Body Orientation | Right Angle Type |
| Operating Temperature | -40°C ~ +105°C |
| Impedance | 50Ω |
| Application | Data Transmission, Coaxial |
| Business Type | OEM&ODM |
Key Features: High-quality FAKRA PCB connector, FAKRA coaxial PCB connector, FAKRA PCB connector assembly
Applications:
- Radio Antenna: Ensures seamless signal transmission.
- GPS Navigation: Contributes to accurate location-based services.
- Infotainment: Provides high-quality audio/video playback.
- Mobile Communication: Vital for seamless connectivity.
- Wireless Communication: Enables efficient RF and WLAN applications.
- Vehicle Security: Crucial for radio frequency remote control.
- Auxiliary Heating: Supports efficient temperature control.
- Sensor Connectivity: Essential for detection and rapid reaction.
FAKRA Coding:
Customization:
Customized FAKRA PCB Connector from LEADSIGN
We accept OEM and ODM orders. Customized cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us. Excellent customer service and technical support are always available to support our customers.
Support and Services:
1.Accept OEM and ODM orders.
2.Samples are free of charge, only the customer has to pay the courier fee.
3.Support multiple logistics methods.
4.Fast delivery time and first-class service.
If you have any questions or need assistance with your FAKRA PCB Connector, please contact us at info@leadsignauto.com.
