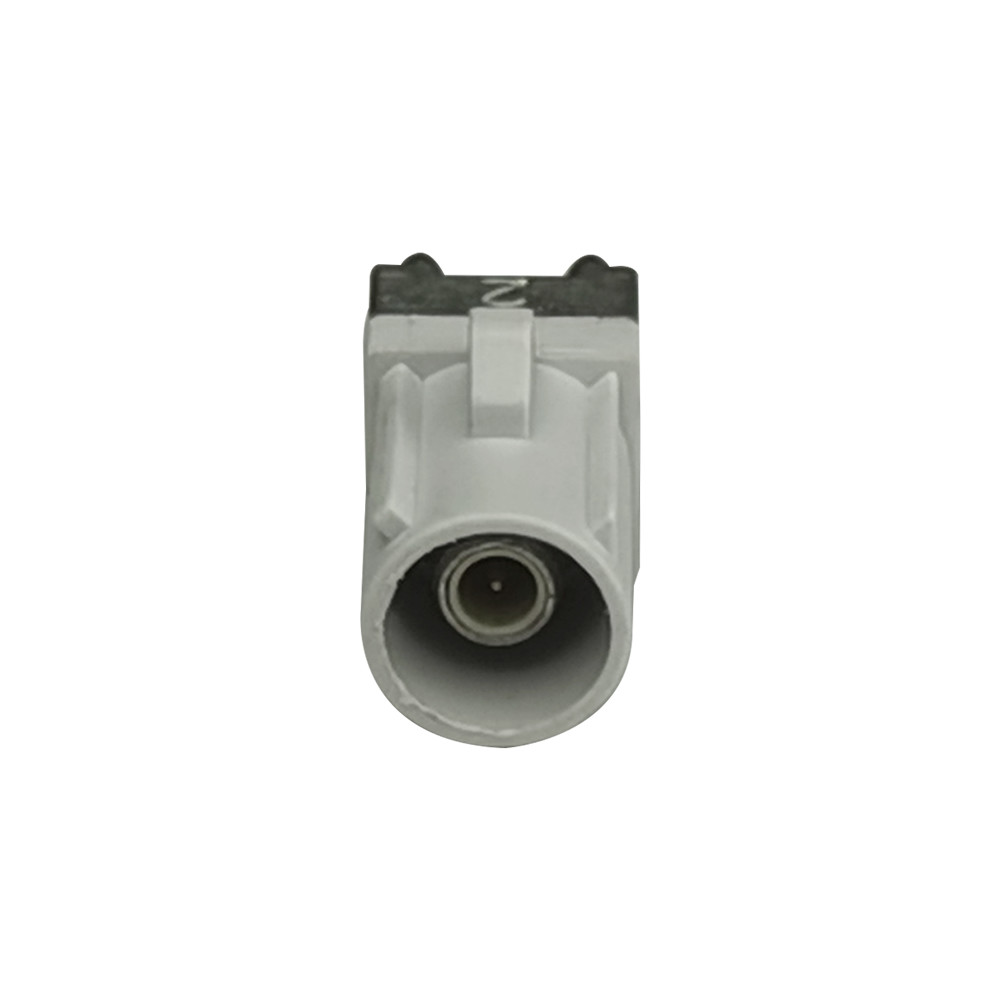

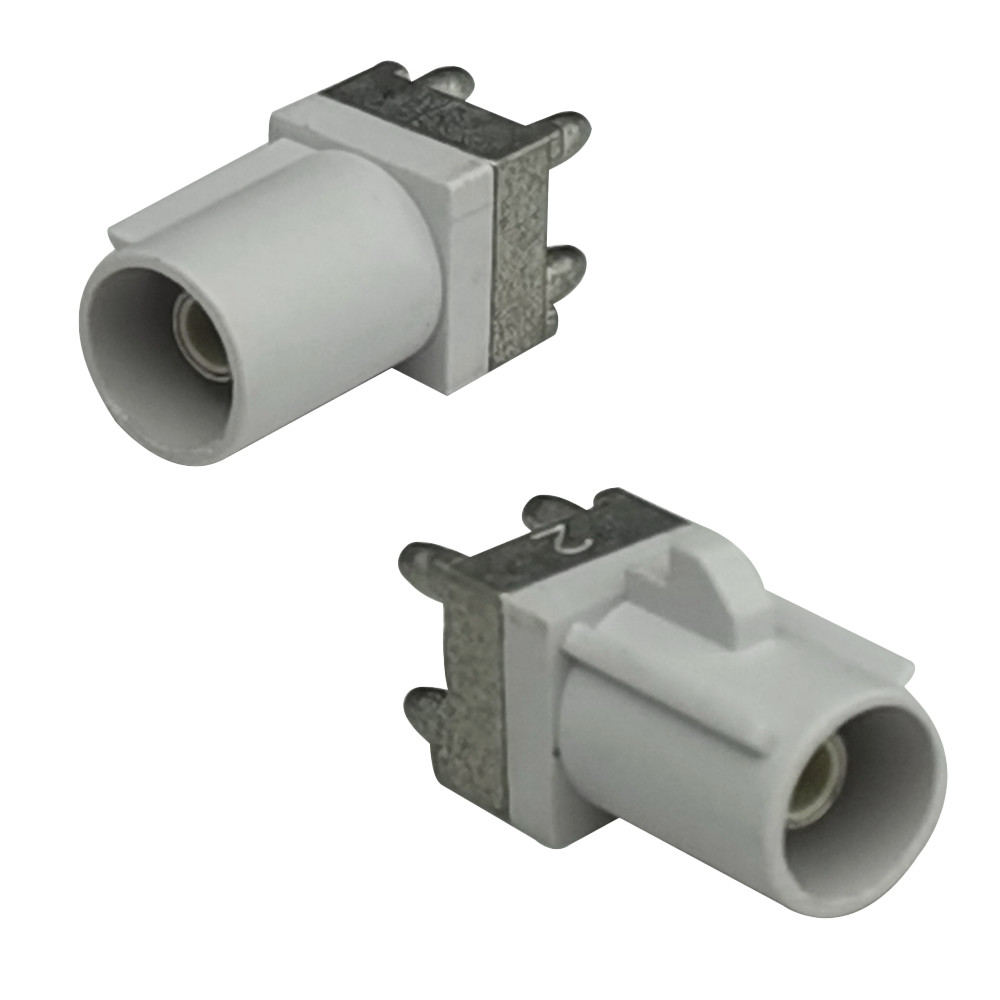

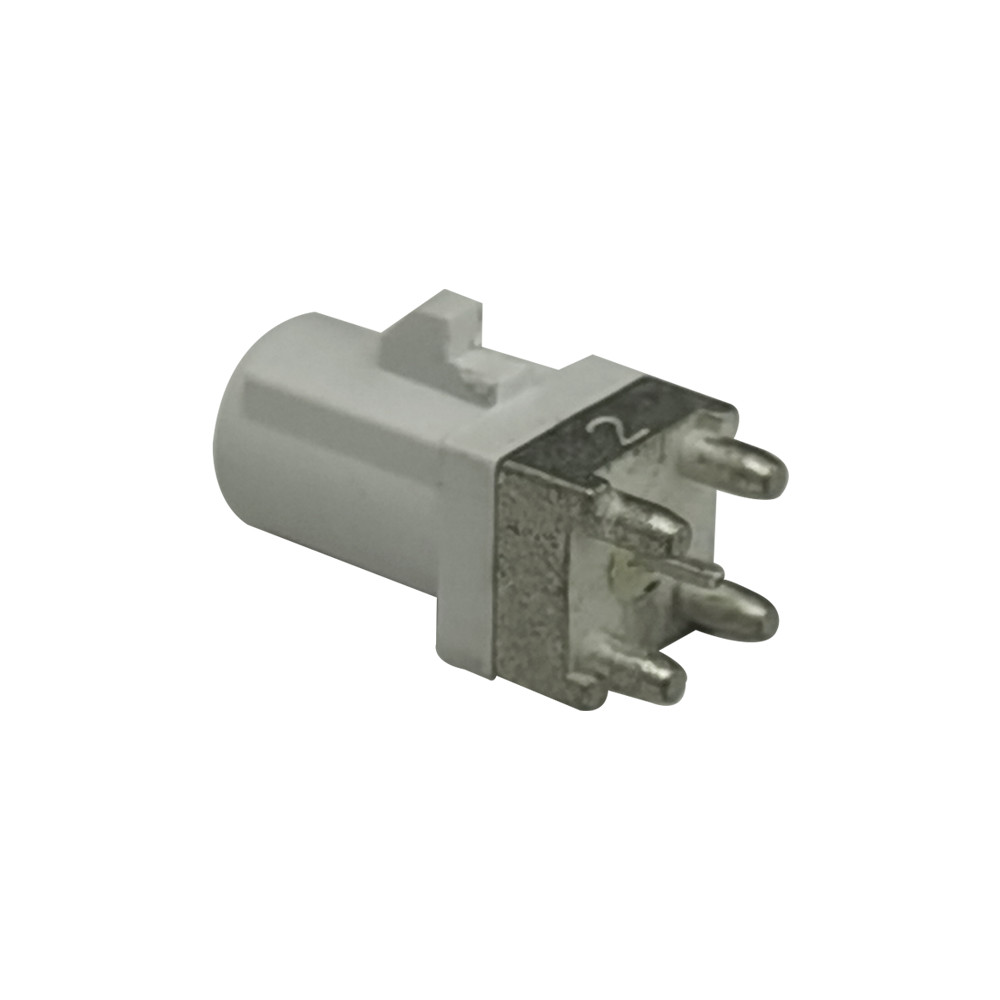

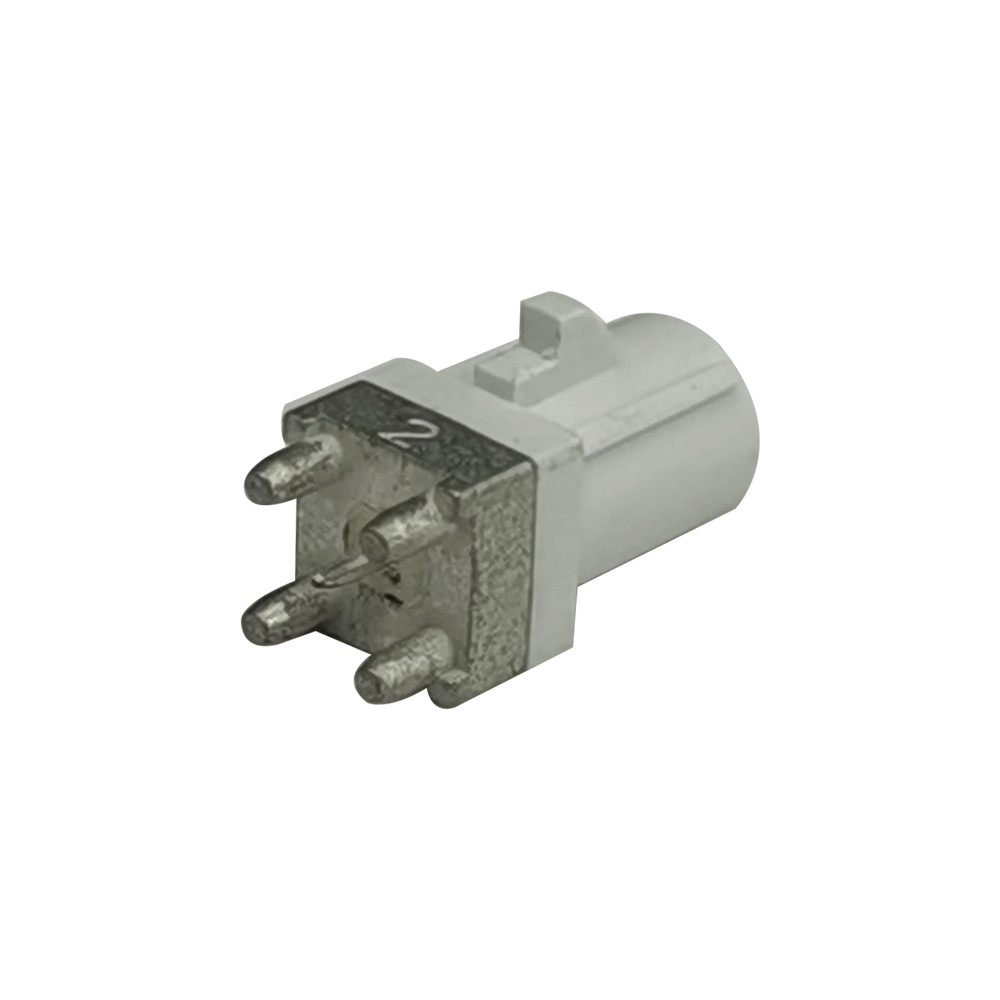

Single Port FAKRA PCB Connector For Vehicle Auxiliary Heating
| Place of Origin | China |
|---|---|
| Brand Name | LEADSIGN |
| Certification | E-Mark |
| Model Number | RF Fakra Connector PCB Mount |
| Minimum Order Quantity | 20PCS |
| Price | Contact the seller |
| Packaging Details | Giftbox size:260*220*80mm, 20PCS/CTN |
| Delivery Time | 7~14 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector Type | FAKRA PCB Connector | Body Orientation | Right Angle Type |
|---|---|---|---|
| Coding | B-code | Number Of Ports | Single Port |
| Operating Temperature | -40°C ~ +105°C | Business Type | OEM&ODM |
| MOQ | 20PCS | ||
| Highlight | Single Port FAKRA PCB Connector,Vehicle Auxiliary Heating FAKRA PCB Connector |
||
Product Description
Product Description:
In the dynamic landscape of automotive technology, FAKRA PCB Connectors stand out as vital components, ensuring robust and efficient high-frequency connectivity. These connectors offer flexibility in installation, with both straight and elbow configurations, adapting seamlessly to diverse vehicle layouts. Featuring 13 mechanical and color codes, including a universal code, they establish a standardized and error-resistant system for various applications. The first and second locking systems ensure assembly reliability, providing a stable connection amidst the dynamic conditions of a moving vehicle. Operating in temperatures from -40 °C to +105 °C, these connectors thrive in diverse environments, making them indispensable in systems such as radio antennas, GPS applications, and in-vehicle communications. FAKRA PCB Connectors, with their versatility and reliability, have emerged as the industry standard for high-frequency connectivity in contemporary automotive systems.
Features:
- Impedance Optimization: Automotive FAKRA PCB Connectors maintain an ideal 50 Ω impedance for efficient signal transmission.
- Wide Frequency Spectrum: Covering a broad frequency range from DC to 6 GHz, these connectors accommodate various high-frequency applications.
- Swift Data Exchange: With a capability to handle data rates up to 8 Gbps, these connectors facilitate rapid and efficient information transfer.
- Signal Reliability: Achieving a return loss of ≥ 18 dB, these connectors prioritize consistent and robust signal integrity during transmission.
- Temperature Versatility: Operating between -40 °C and +105 °C, these connectors exhibit resilience in diverse environmental conditions.
- Enduring Performance: Engineered for durability, these connectors withstand a minimum of 25 mating cycles, ensuring long-lasting functionality.
- Coding Flexibility: Featuring 13 mechanical and colored codings, plus one neutral coding, these connectors provide adaptability for varied applications.
- Secured Connections: Equipped with primary and secondary locks, these connectors deliver secure and reliable connections, enhancing stability in dynamic automotive settings.
- Environmental Compliance: Conforming to RoHS, WEEE, and ELV standards, these connectors align with environmental regulations, offering a responsible solution for automotive applications.
Technical Parameters:
| Connector Type | FAKRA PCB Connector |
|---|---|
| Model Number | RF Fakra Connector PCB Mount |
| Impedance | 50Ω |
| Mounting Type | PCB Mount/Panel Mount |
| Coding | E-code |
| Body Orientation | Straight Type |
| Operating Temperature | -40°C ~ +105°C |
| Number of Ports | Single Port |
| Application | Data Transmission, Coaxial |
Applications:
- Radio Antenna: Automotive FAKRA PCB Connectors provide reliable interfaces for seamless signal transmission in radio antenna applications within vehicles.
- GPS Telematics or Navigation: Crucial for GPS telematics and navigation, these connectors contribute to accurate location-based services within vehicles.
- Infotainment & Television: Integral to infotainment and television systems, these connectors enable high-quality audio and video playback for an enhanced in-car entertainment experience.
- Mobile Communication: Pivotal for supporting mobile communication within vehicles, these connectors ensure seamless connectivity.
- RF Bluetooth / WLAN Applications: Facilitating RF Bluetooth and WLAN applications, these connectors ensure efficient wireless communication within the vehicle.
- Radio Frequency Remote Control for Keyless Entry: Essential for vehicle security, these connectors enable radio frequency remote control, facilitating keyless entry systems.
- Vehicle Auxiliary Heating: Supporting auxiliary heating systems within vehicles, these connectors contribute to efficient temperature control for enhanced comfort.
- Sensors for Detection, Evaluation, and Reaction: Integral to automotive systems, these connectors play a crucial role in connecting sensors for the detection, evaluation, and rapid reaction to various environmental factors.
FAKRA Coding:
Customization:
Customized FAKRA PCB Connector from LEADSIGN
We accept OEM and ODM orders. Customized cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us. Excellent customer service and technical support are always available to support our customers.
Support and Services:
1.Accept OEM and ODM orders.
2.Samples are free of charge, only the customer has to pay the courier fee.
3.Support multiple logistics methods.
4.Fast delivery time and first-class service.
If you have any questions or need assistance with your FAKRA PCB Connector, please contact us at info@leadsignauto.com.
