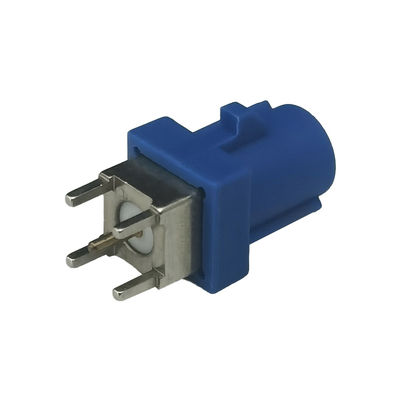

RF Fakra C Connector Straight Plug PCB Mount For Car GPS Telematics

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number FAKRA PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Ports Single Port Coding C-code
Body Orientation Straight Type Impedance 50Ω
Mounting Type PCB Mount/Panel Mount Application Data Transmission, Coaxial
Business Type OEM&ODM MOQ 20PCS
High Light

RF Fakra C Connector

,

Straight Plug Fakra C Connector

Leave a Message
Product Description

Product Description:

Automotive FAKRA PCB Connectors: Enhancing High-Frequency Connectivity in Vehicles

In modern vehicles, high-frequency applications play a crucial role in providing various functionalities. One essential component that enables the smooth functioning of these applications is the Automotive FAKRA PCB Connectors. These connectors offer a versatile range of features that enhance connectivity and ensure reliable performance.

The FAKRA PCB Connectors consist of straight and elbow configurations, making installation easy and flexible. With 13 mechanical and color codes, as well as a universal code, these connectors provide a standardized and efficient system for various applications. This not only simplifies the process but also ensures compatibility and consistency.

Moreover, the first and second locking systems used in these connectors contribute to their high assembly reliability, making the overall connection robust and secure. They can withstand diverse environmental conditions, operating within a temperature range of -40 °C to +105 °C. This makes them suitable for use in various automotive systems.

Some of the common applications of FAKRA RF connectors in vehicles include radio antennas, GPS antennas, in-vehicle mobile communications, RF Bluetooth applications, and more. With their reliable and efficient performance, FAKRA RF connectors have become the standard for high-frequency connectivity in modern vehicles.



Features:

  • The Automotive FAKRA PCB Connectors are designed to maintain an impedance of 50 Ω, ensuring optimal signal transmission.
  • With a frequency range spanning from DC up to 6 GHz, these connectors cater to a wide spectrum of high-frequency applications.
  • Capable of handling high data rates up to 8 Gbps, these connectors facilitate efficient and rapid data exchange.
  • Featuring a return loss of ≥ 18 dB, these connectors effectively preserve strong signal integrity during transmission.
  • Operating within a temperature range from -40 °C to +105 °C, these connectors exhibit resilience in a variety of environmental conditions.
  • Designed for durability, these connectors offer a minimum of 25 mating cycles, ensuring long-lasting performance.
  • With 13 mechanical and colored codings, along with one neutral coding, these connectors provide versatility in application.
  • Equipped with a primary and secondary lock, these connectors offer secure and reliable connections.
  • Meeting RoHS, WEEE, and ELV conformity standards, these connectors adhere to environmental regulations and standards.


Technical Parameters:

Technical Parameters Value
Connector Type FAKRA PCB Connector
FAKRA PCB Connector RF Fakra Connector PCB Mount
Coding C-code
Impedance 50Ω
Mounting Type PCB Mount/Panel Mount
Operating Temperature -40°C ~ +105°C
Body Orientation Straight Type
Number of Ports Single Port
Application Data Transmission, Coaxial


Applications:

  • Reliable Radio Connectivity: FAKRA PCB Connectors ensure seamless signal transmission in radio antenna applications, enhancing overall communication reliability in vehicles.
  • Precision in Navigation: Critical for GPS telematics and navigation, these connectors ensure accuracy in location-based services, optimizing navigation systems within vehicles.
  • Elevated Infotainment Experience: Integral to infotainment and television systems, these connectors contribute to high-quality audio and video playback, enhancing the overall in-car entertainment experience.
  • Seamless Mobile Connectivity: Playing a pivotal role in mobile communication, these connectors support in-vehicle systems, ensuring uninterrupted connectivity for smooth communication.
  • Efficient Wireless Communication: Facilitating RF Bluetooth and WLAN applications, these connectors promote efficient wireless communication, enhancing connectivity within the vehicle.
  • Enhanced Vehicle Security: Utilized for radio frequency remote control, these connectors enable keyless entry systems, contributing to heightened vehicle security.
  • Temperature Control Support: Supporting auxiliary heating systems, these connectors contribute to efficient temperature control within vehicles, ensuring passenger comfort.
  • Integrated Environmental Sensors: Integrated into automotive systems, these connectors connect with sensors for environmental factors, enabling rapid detection and reaction for optimal vehicle safety and performance.



FAKRA Coding:

PCB connector PCB Mount -40°C 105°C Ideal for High Temperature Applications 0



Customization:

Customized FAKRA PCB Connector from LEADSIGN
We accept OEM and ODM orders. Customized cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us. Excellent customer service and technical support are always available to support our customers.



Support and Services:

1.Accept OEM and ODM orders.
2.Samples are free of charge, only the customer has to pay the courier fee.
3.Support multiple logistics methods.
4.Fast delivery time and first-class service.
If you have any questions or need assistance with your FAKRA PCB Connector, please contact us at info@leadsignauto.com.
