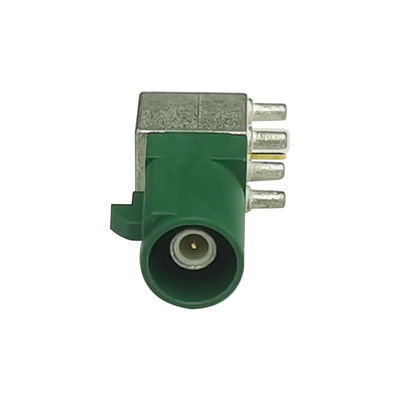

FAKRA RF PCB Connectors Right Angle Connectors Through Hole PCB Mount

Place of Origin China
Certification E-Mark
Model Number RF Fakra Connector PCB Mount
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Operating Temperature -40°C ~ +105°C Connector Type FAKRA PCB Connector
Number Of Ports Single Port Coding E-code
Body Orientation Right Angle Type Business Type OEM&ODM
Leave a Message
Product Description

Product Description:

The FAKRA PCB connector is a widely used connector in the automotive industry, that stands out for its reliability and robust performance for transmitting signals for various in-vehicle communication systems.

These connectors are designed with safety in mind, with the intent to ensure secure connections and maintain signal integrity in the demanding automotive environment.

It is an essential component for applications such as navigation, GPS and telematics systems in today's vehicles, making it an indespensable element industry-wide.



Robust and Reliable: FAKRA Connectors
  • Durability and Reliability: FAKRA connectors are built to withstand challenging automotive conditions, ensuring dependable signal transmission.
  • Ease of Installation: Featuring a snap-on mechanism, these connectors are straightforward to install without requiring specialized tools.
  • Color-Coded System: They are available in various colors for easy identification and correct connections, enhancing usability.
  • High-Frequency Support: Ideal for high-frequency applications, including high-speed data and video signals, with minimal signal loss.
  • Vibration Resistant: Designed to endure vehicle vibrations without signal degradation, ensuring consistent performance.
  • Versatile Variants: Available in multiple forms, including straight, right-angle, and PCB mount options, they can be applied in diverse automotive systems, from infotainment to GPS and telematics.

Technical Parameters:

Product Attributes Descriptions
Impedance 50Ω
Connector Type FAKRA PCB Connector
Number of Ports Single Port
Model Number RF Fakra Connector PCB Mount
Body Orientation Right Angle Type
Mounting Type PCB Mount
Operating Temperature -40°C ~ +105°C
Application Data Transmission, Coaxial
Business Type OEM&ODM


The Automotive Uses of FAKRA Connectors
  • Infotainment Systems: FAKRA connectors are widely used in automotive infotainment systems, ensuring high-quality audio and video transmission for a rich multimedia experience.
  • Navigation Systems: They play a vital role in transmitting GPS signals, supporting accurate navigation and location-based services.
  • Telematics Systems: FAKRA connectors are essential for sending data related to vehicle diagnostics, tracking, and remote monitoring within telematics systems.
  • Radio and Antenna Connections: These connectors ensure clear and reliable signal reception for AM/FM radio, satellite radio, and various antenna connections.
  • Wireless Communication: FAKRA connectors support wireless communication systems within vehicles, including cellular, Wi-Fi, and Bluetooth connections.
  • Rearview and Parking Cameras: They are used for transmitting video signals from rearview and parking cameras to the vehicle's display, enhancing safety during parking and reversing.
  • Remote Keyless Entry (RKE): FAKRA connectors enable remote keyless entry and starting functions in vehicles.
  • Electronic Control Units (ECUs): They facilitate communication for various electronic control units (ECUs) in the vehicle, including engine and transmission control units.
  • Collision Avoidance Systems: FAKRA connectors provide data for radar and sensor-based collision avoidance systems, enhancing vehicle safety and accident prevention.


FAKRA Coding:

FAKRA RF PCB Connectors Right Angle Connectors Through Hole PCB Mount 0FAKRA RF PCB Connectors Right Angle Connectors Through Hole PCB Mount 1



We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.

Support and Services:

  • Accept OEM and ODM orders.
  • Samples are free of charge, only the customer has to pay the courier fee.
  • Support multiple logistics methods.
  • Fast delivery time and first-class service.
