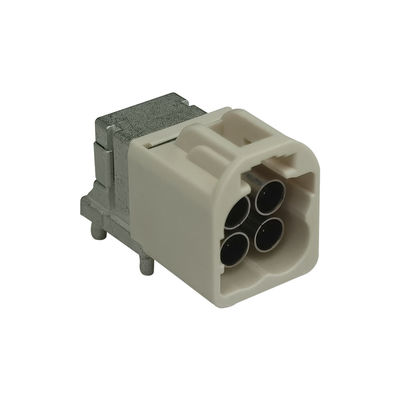

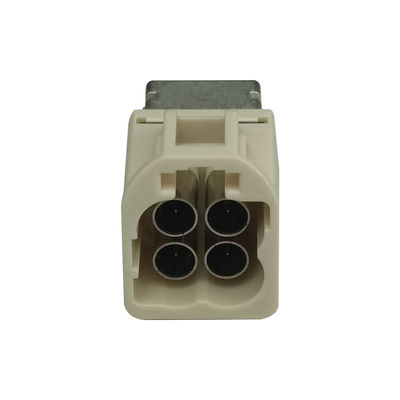

Quad Mini FAKRA Connector Plug Right Angle Panel Mount Through Hole White B Code

Place of Origin China
Certification E-Mark
Model Number Mini Fakra Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Mini FAKRA Connector Connector Type PCB/Panel Mount
Impedance 50Ω Color White Color
Modular Housings Quad PCB Connectors Right Angle
Code B-code Service OEM & ODM Is Accepted
Leave a Message
Product Description

Product Description:

HFM is the best system of coaxial “Mini-Coax” connectors widely used in the automotive industry, with frequencies up to 20 GHz and the capacity of fast transmission of high data rates up to 28 Gbps. Its innovative design could greatly reduce cost and size, and saving up to 80 % space compared to conventional FAKRA connectors.

The HFM connector system allows various modules to be fitted within the smallest possible footprint, and the manufacturing processes and the automated connector mounting and cable assembly help achieve the best cost. Besides, it's an interface that is capable to hold future vehicle networks applications and protocols.

 Highly reliable, HFM is compliant to all common automotive standards, and provides a unique combination of exceptional performance and conduction. Automotive industries could leverage speed and cost with HFM.


  • High Performance: HFM is the top-performing coaxial connector system designed for the automotive industry, providing an impressive 20GHz frequency range with a 50 Ohm impedance.
  • High Data Capabilities: It excels in data capabilities, achieving speeds of up to 28 Gbps.
  • Color Range and Locking Options: HFM is versatile, available in a wide array of colors and features both primary and secondary locks, enhancing security.
  • Space Efficiency: Remarkably compact, HFM's package size is designed to save a significant amount of space—up to 80% compared to the FAKRA alternative.
  • Durability and Reliability: HFM connectors are highly durable, offering a minimum of 25 mating cycles, demonstrating longevity and reliability. This reliability is further reinforced by the credibility of the manufacturer.

Technical Parameters:

Parameter Details
Product Name Mini FAKRA Connector
Product Category RF Connectors / Coaxial Connectors
Connector Type PCB/Panel Mount
PCB connectors Right Angle
Color White Color
Modular housings Quad
Impedance 50Ω
Code B-code
Application Automotive
Service OEM & ODM Is Accepted


  • Significant Technological Advancements: Rapid progress in automotive technology has brought autonomous driving to the forefront of industry discussions.
  • Diverse Driving Assistance Systems: Autonomous driving encompasses a range of driving assistance systems, including Advanced Driver Assistance System (ADAS), rear seat entertainment, infotainment, internet access, and navigation.
  • Integration and Connectivity: All these driving assistance systems necessitate seamless integration and connectivity with the vehicle's systems.
  • Reliance on RF Signal Transmission: These systems heavily rely on RF (Radio Frequency) signal transmission to control and facilitate the self-driving functionalities.


Mini FAKRA Coding:

Quad Mini FAKRA Connector Plug Right Angle Panel Mount Through Hole White B Code 0


Mini Fakra Connectors are the perfect solution for high speed automotive applications. We offer a wide variety of high speed fakra mini connectors for your choice. Our connectors are reliable, durable, and designed to meet your specific needs. We can provide OEM & ODM services for our products. Please feel free to contact us.


Support and Services:

1.Accept OEM and ODM orders.

2.Samples are free of charge, only the customer has to pay the courier fee.

3.Support multiple logistics methods.

4.Fast delivery time and first-class service.
