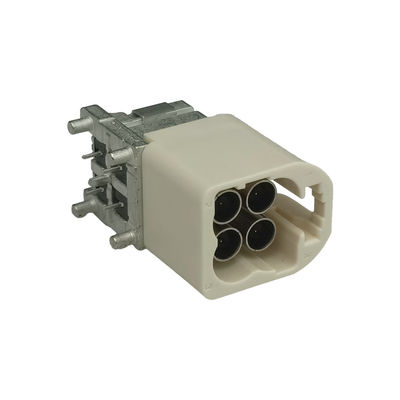

Mini Fakra Connector Type PCB/Panel Mount Right Angle Through Hole White B Code

Place of Origin China
Certification E-Mark
Model Number Mini Fakra Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Color White Color PCB Connectors Right Angle
Product Category RF Connectors / Coaxial Connectors Modular Housings Quad
Connector Type PCB/Panel Mount MOQ 20pcs
Service OEM & ODM Is Accepted Code B-code
Leave a Message
Product Description

Product Description:

HFM is the highest-performing system of “Mini-Coax” connectors for the automotive industry. With frequencies up to 20GHz, it can quickly transmit data rates of up to 28 Gbps. Its innovative design satisfies the need for both cost efficiency and reduced weight and size. In comparison to conventional FAKRA connectors, space is reduced by up to 80%, allowing multiple modules to fit into one small frame. Its best cost comes from fully stamped and formed manufacturing processes, along with automated connector mounting and cable assembly. The HFM connector system can accommodate future automotive networks, applications, and protocols.


HFM - The Most Suitable "Mini-Coax" Connector for Automotive Industry.
  1. Impedance and Frequency Range: HFM boasts an impedance of 50 ohms and supports an expansive frequency range, from DC to 20 GHz.
  2. High Data Rates: HFM achieves impressive data rates, reaching up to 28 Gbps.
  3. Locking Options: Users can choose from primary and secondary locks, available in a variety of colors.
  4. Compact Package Size: In comparison to the Fakra model, HFM offers a significantly smaller package size, resulting in substantial space savings—approximately 80%.
  5. Mating Cycles: HFM ensures durability with no less than 25 mating cycles for all configurations.

Technical Parameters:

Code B-Code
Product Category RF Connectors / Coaxial Connectors
Color White Color
Modular housings Quad
Connector Type PCB/Panel Mount
Application Automotive
PCB connectors Right Angle
Impedance 50Ω
Service OEM & ODM Is Accepted


  • Enhanced Experience: Focuses on improving driver experience through driver assistance systems, entertainment, and reliable navigation.
  • Convenience and Safety: Prioritizes driver convenience and safety by automating tasks and integrating sensors, radar, and cameras.
  • RF Signal Integration: Incorporates RF signal transmission capabilities, enhancing communication within the vehicle systems.
  • Automation and Sensors: Minimizes manual tasks and errors through automation and sensor integration.
  • Prompt Reaction: Quickly verifies driver identification and reacts to emergencies like braking or lane changes.
  • ADAS Features: Includes adaptive cruise control, lane departure warnings, blind spot detection, and more.
  • Intelligent Operation: Adapts to driver intentions for safer driving practices and decision-making.


Mini FAKRA Coding:

Mini Fakra Connector Type PCB/Panel Mount Right Angle Through Hole White B Code 0


LEADSIGN Mini Fakra Connectors

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.

Support and Services:

Mini FAKRA Connectors Technical Support and Service
  • Accept OEM and ODM orders.
  • Samples are free of charge, only the customer has to pay the courier fee.
  • Support multiple logistics methods.
  • Fast delivery time and first-class service.

At Mini FAKRA Connectors, we are committed to providing our customers with the highest quality technical support and service.

We offer a range of support options, including email support, live chat support.

If you require further assistance, our experienced engineers can provide custom solutions tailored to your specific needs. We are dedicated to providing the best customer service and quality products to ensure the success of your project.
