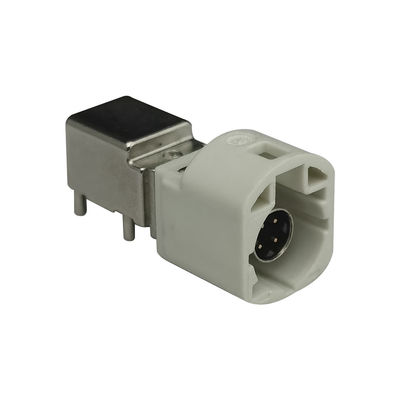

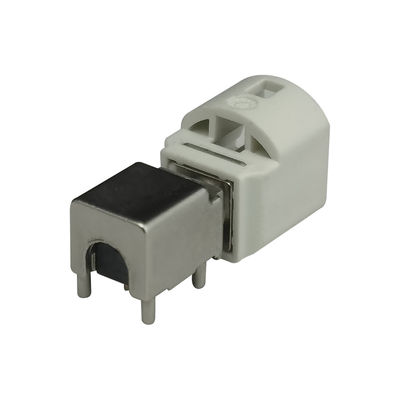

FAKRA HSD LVDS 4 PIN Right Angle Type OEM&ODM Accept B-Code Services

Place of Origin China
Certification E-Mark
Model Number HSD PCB Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Number Of Positions 4Pin Operating Temperature -40℃ To +105℃
Color White Color Mounting Type PCB Mount
Orientation Right Angle Type Impedance 100Ω
Applications LVDS Camera, USB, And IEEE 1394 MOQ 20PCS
Leave a Message
Product Description

Product Description:

In today's changing automotive technology industry, the HSD PCB Connector is a powerful new tool that enables innovation. The connector has impressive capabilities, including high-speed data rates, wide compatibility, and exceptional durability. These features open up new possibilities for automotive applications, from advanced infotainment systems to self-driving cars. In short, the HSD PCB Connector is a key ingredient for modern automotive technology.



  1. High-Speed Transfer: Swiftly transmit data at up to 8 Gbps.
  2. Stable Impedance: Maintain 100 Ohm impedance for consistent communication.
  3. Extreme Durability: Operate from -40°C to +105°C, enduring tough conditions.
  4. Waterproof Resilience: Withstand wet environments with ≥ 5 mating cycles.
  5. Secure Connections: Various codings and locks ensure accurate linking.
  6. Multiple Interfaces: Support USB, LVDS, Ethernet, and Firewire.
  7. Autonomous Support: Enable real-time data exchange for self-driving vehicles.
  8. Network Reliability: Facilitate robust networking within automobiles.
  9. Passenger Experience: Elevate passenger entertainment through rapid data transfer.
  10. MOQ:20 PCS

Technical Parameters:

Parameter Value
Impedance 100 Ohm
Data Rates Up to 8 Gbps
Temperature Range -40 °C to +105 °C
Mating Cycles ≥ 25
Mechanical Codings Various options
Colored Codings Different colors available
Neutral Coding One neutral option

USB 1.0, 2.0, 3.0

LVDS (Low Voltage Differential Signal)

Ethernet (IEEE 802.3)

Firewire (IEEE 1394)



  1. Infotainment Systems: Displays, connections, interactive interfaces, and high-quality sound.
  2. Smart Driving Aid: Real-time data sharing, navigation, rearview cams, autonomy.
  3. Telematics Track: Remote tracking, diagnostics, safety, vehicle-to-vehicle chats.
  4. Network Connect: Efficient data swapping, less module repetition.


HSD Coding:

FAKRA HSD LVDS 4 PIN Right Angle Type OEM&ODM Accept B-Code Services 0FAKRA HSD LVDS 4 PIN Right Angle Type OEM&ODM Accept B-Code Services 1




We accept OEM and ODM orders. If you need a different installation, please let us know the type of connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.

Support and Services:

1.Fast delivery time and first-class service.

2.Samples are free of charge, only the customer has to pay the courier fee.
3.Support multiple logistics methods.

4.Accept OEM and ODM orders.
