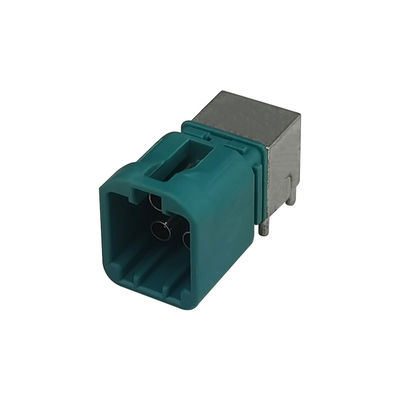

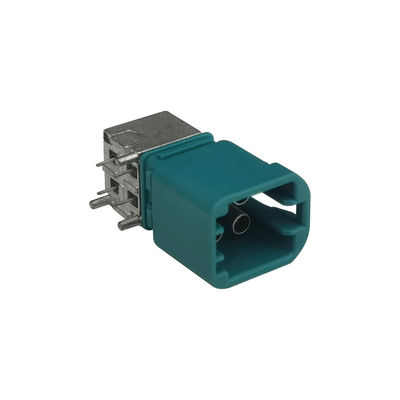

Right Angle Quad Mini FAKRA Connector Z Code Water Blue Four Ports

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number Mini Fakra Connector
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Mini FAKRA Connectors Code Z-code
Color WaterBlue Color PCB Connectors Right Angle
Impedance 50 Ohms Frequency Range DC To 6 GHz
MOQ 20pcs Service OEM & ODM Is Accepted
High Light

Quad Mini FAKRA Connector

,

Z Code Mini FAKRA Connectors

,

Four Ports Mini FAKRA Connectors

Leave a Message
Product Description

Product Description:

The Mini Fakra connector is a compact and fully-shielded interconnect system designed specifically for automotive applications. It provides a reliable choice for in-vehicle communication systems, infotainment, and advanced driver assistance systems (ADAS). Its robust construction ensures durability and longevity, making it a trusted component for seamless and efficient data connectivity in the automotive industry.Mini Fakra connectors are high-performance interconnects that offer a 50 Ω impedance to ensure efficient and reliable data transmission within the vehicle's network. They support frequencies from DC to 20 GHz, making them ideal for high-frequency applications. The connectors also boast impressive data rates of up to 28 Gbps, offering seamless multimedia streaming and advanced communication in automotive systems Mini Fakra connectors are also particularly space-efficient, with small dimensions that optimize space utilization on PCBs and within vehicle setups. This gives engineers a space-efficient solution for high-speed data connectivity.



Features:

  1. HFM: Best performing "miniature coaxial" connector system for the automotive industry.
  2. Fast transmission of high data rates up to 28 Gbps for frequencies up to 20 GHz.
  3. Saves up to 80% of space compared to conventional FAKRA connectors.
  4. Ensures safety for autonomous driving and driver assistance systems.
  5. Merges and transmits large amounts of real-time data from multiple cameras, sensors, and navigation sources.
  6. MOQ:20pcs

Technical Parameters:

Parameter Details
Brand Name LEADSIGN
Product Name Mini FAKRA Connectors
Description PCB connector,Right Angle Plug
Modular housingsar housings Quad
lmpedance 50Ω
Frequency range DC up to 20 GHz
High data rates up to 28 Gbps
Return loss ≥25 dB,DC to ≤3 GHz
≥20 dB,>3 GHz to ≤6 GHz
≥15 dB,>6 GHz to ≤12 GHz
≥12 dB,>12 GHz to ≤15 GHz
≥10 dB,>15 GHz to ≤20 GHz
Mating cycles up to 25
Service OEM & ODM Is Accepted

Applications:

Autonomous Driving:

  1. Miniature Fakra connectors ensure efficient data exchange for autonomous driving.
  2. Enables real-time analysis of data from LiDAR sensors, radar, and cameras.
  3. Aids in safe decision-making for autonomous operation.



Driver Assistance Systems:

  1. Crucial for ADAS capabilities like lane departure warning and collision avoidance.
  2. Facilitates accurate data exchange between sensors, actuators, and control units.
  3. Enhances driving safety and confidence.



Navigation:

  1. Miniature Fakra connectors support in-built navigation systems.
  2. Enables real-time GPS positioning and route guidance.
  3. Provides reliable navigation information.



Infotainment:

  1. Facilitates high-speed data transmission for complete infotainment systems.
  2. Connects multimedia devices to the vehicle's infotainment unit.
  3. Offers a wide selection of in-vehicle entertainment.



Rear Seat Entertainment:

  1. Enables rear-seat displays, audio sources, and control unit connections.
  2. Provides full access to multimedia content for passengers.
  3. Enhances passenger comfort and enjoyment during the journey.



Mini FAKRA Coding:

Right Angle Quad Mini FAKRA Connector Z Code Water Blue Four Ports 0

Customization:

LEADSIGN provides OEM and ODM services to our customers. Our connectors are manufactured to the highest standards of quality, reliability and performance. We are confident that our miniature FAKRA connectors will provide a reliable and efficient solution for your application.



Support and Services:

  • Samples are free of charge, only the customer has to pay the courier fee.
  • Accept OEM and ODM orders.
  • Fast delivery time and first-class service.
  • Support multiple logistics methods.
