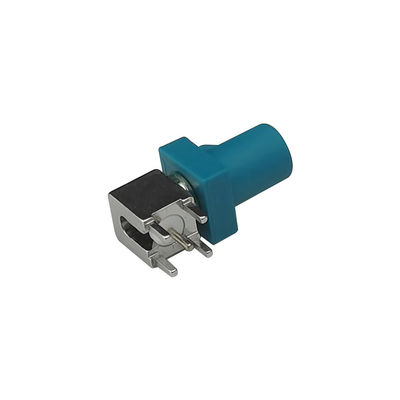

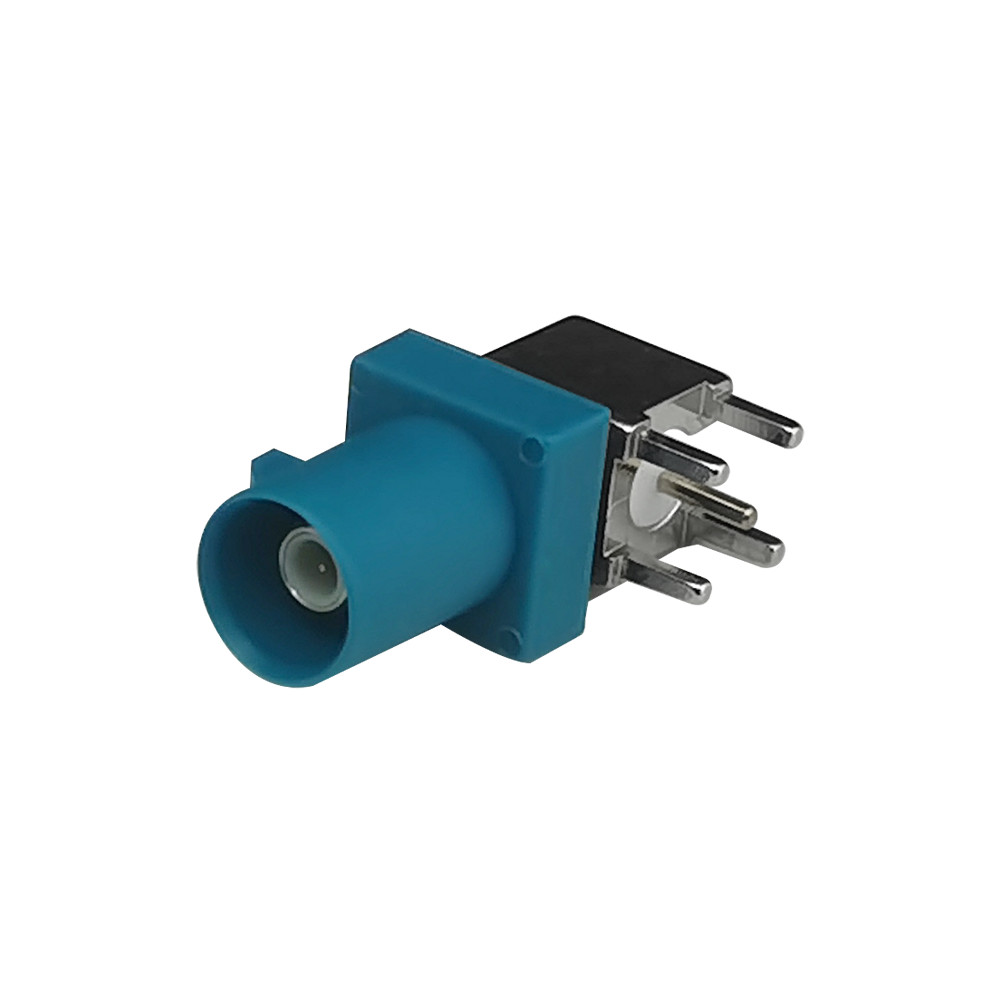

Z Code FAKRA PCB Connector Through Hole Right Angle Plug 50 Ohm

Place of Origin China
Brand Name LEADSIGN
Certification E-Mark
Model Number RF Fakra Connector PCB Mount
Minimum Order Quantity 20PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type FAKRA PCB Connector Coding / Color (Automotive) Z-code,WaterBlue Color
Ports 1 (Single Port) Impedance 50Ω
Termination Style PCB - Through Hole Body Orientation Right Angle
Business Type OEM&ODM MOQ 20PCS
High Light

Z Code FAKRA PCB Connector

,

50 Ohm FAKRA PCB Connector

,

Right Angle Plug FAKRA PCB Connector

Leave a Message
Product Description

Product Description:

FAKRA PCB Connector is a high-performance RF connector specifically designed for automotive applications. It is ideal for use in applications that require a reliable connection with low signal loss. This FAKRA PCB mount connector features a waterblue color, an operating temperature range of -40°C to +105°C, an impedance of 50Ω, and a Z-code, waterblue color coding. The mounting type is PCB mount, making it a reliable and durable choice for automotive PCB applications. The FAKRA PCB connector is a reliable and robust choice for automotive applications requiring RF signals. It provides excellent electrical and mechanical performance, and is an ideal choice for applications requiring a secure, low-loss connection.

Features:

  1. Designed for easy installation and removal
  2. Provides a secure and reliable connection between coaxial cable and PCB
  3. Color-coded design allows for easy identification of signals and correct connections
  4. Available in straight and right-angle versions, with options for male and female connectors
  5. Facilitates efficient signal transmission for optimal performan
  6. Compatible with various coaxial cables and PCBs
  7. Reliable automotive fakra PCB connector for secure connections
  8. MOQ: 20PCS



Technical Parameters:

Parameter

Specification

Brand Name

LEADSIGN

Product Name

FAKRA PCB Connector

Description

Right-angle plug PCB, including housing, Single

Coding / Color (Automotive)

Z-code,WaterBlue Color

Impedance

50Ω

Operating Temperature

-40°C ~ +105°C

Application

Data Transmission, Coaxial

Services

OEM ODM Accept

MOQ

20PCS



Application:

FAKRA PCB mount connector is a great choice for antenna cable connection in the automotive industry, making it ideal for car antenna cable connection. It provides a secure connection to reduce noise and interference. The connector ensures reliable performance to provide a stable connection and uninterrupted signal transmission. The FAKRA coaxial PCB connector is designed with a robust construction and is able to withstand extreme temperature conditions. It can be used for both indoor and outdoor applications. With its small size and light weight, it is easy to install and remove. It is suitable for many different types of cables and applications.



FAKRA Coding:

Z Code FAKRA PCB Connector Through Hole Right Angle Plug 50 Ohm 0

Customization:

LEADSIGN FAKRA PCB Connector

Custom cable types, connector types and cable lengths are available. Make sure that the RF cable assembly is suitable for your project. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.

Support and Services:

  1. Accept OEM and ODM orders.
  2. Samples are free of charge, only the customer has to pay the courier fee.
  3. Support multiple logistics methods.
  4. Fast delivery time and first-class service.
