A Code FAKRA HSD LVDS Cable MINI B USB Multi Scene For Automotive

Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA HSD Cable
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conversion Style HSD To USB HSD Connector HSD 4P Jack, A Code,Black Color
USB Connector MINI-B USB Application Automotive
Services OEM ODM Accept MOQ 20 PCS
High Light

A Code HSD LVDS Cable

,

Multi Scene HSD LVDS Cable

,

Automotive HSD MINI B USB Cable

Leave a Message
Product Description

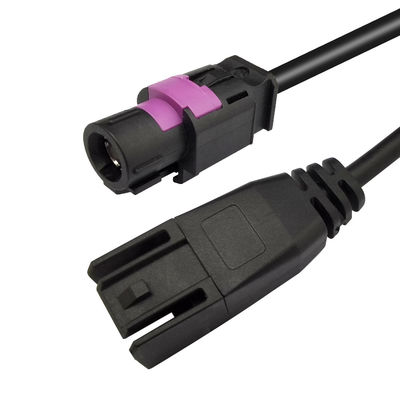

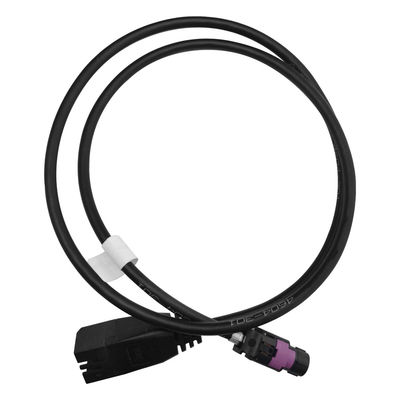

HSD LVDS Cable A Code FAKRA HSD Connector To MINI-B USB Cable

Product description:
HSD connectors meet the automotive demand for high-speed data communication systems. High-speed data up to 6 GHz. Focused on automotive applications such as internal compartments for connecting displays, hosts and rear seat infotainment modules. HSD connectors can be used with various protocols such as LVDS (Low Voltage Differential Signaling), GVIF (Gigabit Video Interface), USB, IEEE 1394 and Ethernet protocols.

Main Feature:

1. High-performance digital system with low-voltage differential signals
2. Protects against crosstalk and external interference
3.100Ω fully shielded interconnect system
4. High-speed data up to 6GHz
5. Focused on automotive applications
6. Compliant with LVDS (Low Voltage Differential Signaling), Ethernet and USB protocols
7.MOQ:20 PCS


Applications:
1. Automotive electronics
2. Telecommunications industry, such as radio base stations
3.Digital infotainment electronics
4.Digital symmetric network
5.USB 1.0, 2.0, 3.0
6.LVDS
7.Ethernet
8.IEEE 1394 (FireWire)


Offer Custom:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.



Technical Specifications:



HSD
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C



HSD Coding:

HSD Cable Assembly 4+2 Core D Code Jack For In-Car Audio And Video Transmission 0HSD Cable Assembly 4+2 Core D Code Jack For In-Car Audio And Video Transmission 1
FAQ:


1. Q:What is your sample policy?
A: Samples are free of charge, only the customer has to pay the courier fee.



2.Q:Do you accept OEM / ODM orders?

A:Yes, we accept OEM / ODM orders.



3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
