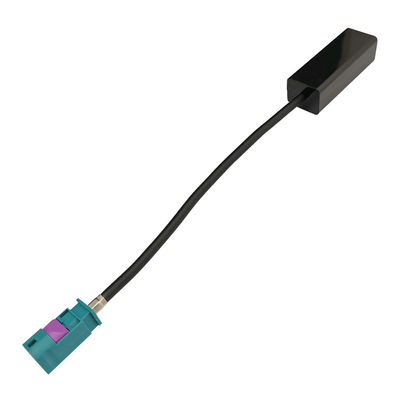

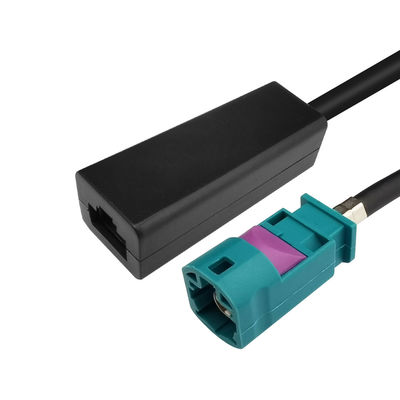

Automotive Stable LVDS FAKRA Cable , Z Code HSD To USB RJ45 FAKRA Ethernet Cable

Place of Origin CHINA
Model Number FAKRA HSD Cable
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Conversion Style HSD To USB HSD Connector HSD 4P Jack, Z Code
USB Connector RJ45 Ethernet Port Application Automotive
Services OEM ODM Accept MOQ 20 PCS
High Light

Automotive LVDS FAKRA Cable


Stable LVDS FAKRA Cable


RJ45 FAKRA Ethernet Cable

Leave a Message
Product Description

HSD LVDS Cable Z Code FAKRA HSD Connector To USB RJ45 Ethernet Port Cable
Product description:
HSD: High Speed Data, High Speed Data Transfer. Generally used for in-car infotainment systems, camera interfaces and other high-speed data transmission functions, single-wire four-core. HSD connector is a differential connector, developed and designed for the automotive industry, used in applications such as LVDS cameras, USB and IEEE1394, with high speed transmission and high shielding efficiency.
Main Feature:

1.High-speed data transmission
2. High shielding efficiency
3. High encoding efficiency
4. Crimp type connection
5. High cable holding power
6. High speed data up to 6GHz
7. Compliant with LVDS (Low Voltage Differential Signaling), Ethernet and USB protocols
8. MOQ:20 PCS


1.Instrument panel display
2.Driver Assistance System
3.Back-up camera
4.USB 1.0, 2.0, 3.0
5.Car infotainment system
6.Camera interface


Offer Custom:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.


Technical Specifications:


Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C


HSD Coding:

HSD Cable Assembly 4+2 Core D Code Jack For In-Car Audio And Video Transmission 0HSD Cable Assembly 4+2 Core D Code Jack For In-Car Audio And Video Transmission 1

1. Q:What is your sample policy?
A: Samples are free of charge, only the customer has to pay the courier fee.


2.Q:Do you accept OEM / ODM orders?

A:Yes, we accept OEM / ODM orders.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
