ODM HSD LVDS Cable Straight Jack Z Code To 2.0 Type A USB With Cap

Place of Origin CHINA
Model Number FAKRA HSD Cable
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Conversion Style HSD To USB 1st Connector HSD 4P Jack, Z Code

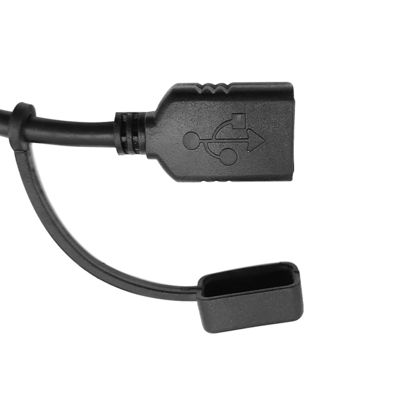

2nd Connector USB2.0 A Type With Cap Application Automotive
Services OEM ODM Accept MOQ 20 PCS
High Light



Straight HSD LVDS Cable


Cap HSD Connector Cable

Leave a Message
Product Description

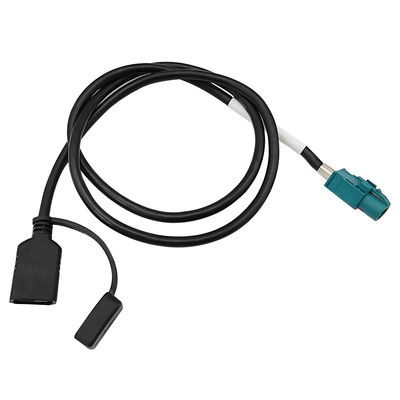

HSD LVDS Cable Straight Jack 4Pin Z-Code HSD Connector To 2.0 Type-A USB


Product description:

The HSD system is a 100Ω fully shielded interconnect system, a very economical high speed data connector that protects against crosstalk and external interference, with color coding options and minimum dimensions to meet global automotive requirements. Low voltage differential signals for applications such as LVDS cameras, USB and IEEE1394 to meet a variety of needs.


Main Feature:

1. 14 different mechanical and color codes
2. Primary and secondary locking system resulting in high assembly security
3. Impedance of 100 ohms
4. Fully shielded connector system with different wire diameters and types
5. Compliance with LVDS, Ethernet and USB protocols
6. Full range of connectors for unsealed and sealed applications
7. High level of process automation and global manufacturing systems
8.MOQ:20 PCS



1. In-car infotainment system
2.Camera Interface
3.LVDS camera
4.USB 1.0, 2.0, 3.0


Offer Custom:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.


Technical Specifications:


Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C


HSD Coding:

HSD Cable Assembly 4+2 Core D Code Jack For In-Car Audio And Video Transmission 0HSD Cable Assembly 4+2 Core D Code Jack For In-Car Audio And Video Transmission 1



1. Q:What is your sample policy?
A: Samples are free of charge, only the customer has to pay the courier fee.


2.Q:Do you accept OEM / ODM orders?

A:Yes, we accept OEM / ODM orders.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
