Durable H Code FAKRA LVDS Cable , Grey Color MINI B USB HSD LVDS Wire

Place of Origin CHINA
Brand Name LEADSIGN
Model Number FAKRA HSD Cable
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conversion Style HSD To USB HSD Connector HSD 4P Jack, H Code
USB Connector MINI-B USB Application Automotive
Services OEM ODM Accept MOQ 20 PCS
High Light

Durable FAKRA LVDS Cable

,

H Code FAKRA LVDS Cable

,

USB HSD LVDS Wire

Leave a Message
Product Description

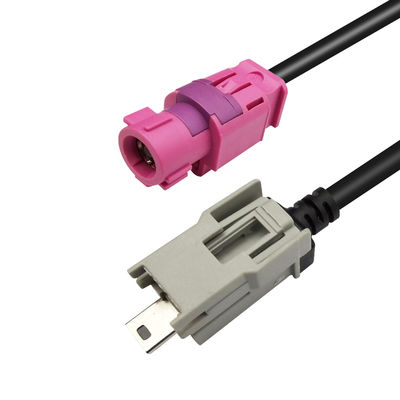

HSD LVDS Cable H Code FAKRA HSD Connector To Grey Color MINI-B USB Cable

Product description:
HSD connectors are fully shielded with good impedance control, wide range and high quality for a variety of high speed data applications. Automotive electronics applications that transmit high data, such as low-voltage differential signal cameras, USB connections, or IEEE 1394 applications. In addition, the system can be used for digital infotainment electronics, digital symmetric networks, and even wireless base stations.

Main Feature:

1. With good impedance control
2. Suitable for various high-speed data applications
3. Meet the demanding requirements of the automotive industry
4. 14 different mechanical and color codes
5. Impedance of 100 ohms
6. High stability and reliability, high precision, perfect docking with the original car
7. Compliant with LVDS (Low Voltage Differential Signaling), Ethernet and USB protocols
8.MOQ:20 PCS


Applications:
1. Automotive electronics/autonomous driving: driver assistance systems, navigation, infotainment systems
2. Internet and mobile communication
3. Digital infotainment electronics
4. LVDS cameras, USB connectivity, Ethernet and Firewire (IEEE 1394)
5. In-vehicle entertainment systems
6.Smart antenna



Offer Custom:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.



Technical Specifications:



HSD
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C



HSD Coding:

HSD Cable Assembly 4+2 Core D Code Jack For In-Car Audio And Video Transmission 0HSD Cable Assembly 4+2 Core D Code Jack For In-Car Audio And Video Transmission 1
FAQ:


1. Q:What is your sample policy?
A: Samples are free of charge, only the customer has to pay the courier fee.



2.Q:Do you accept OEM / ODM orders?

A:Yes, we accept OEM / ODM orders.



3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
