Portable HSD LVDS Cable Straight 4 PIN Z Code FAKRA To MINI B USB

Place of Origin CHINA
Model Number FAKRA HSD Cable
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Conversion Style HSD To USB HSD Connector HSD 4P Jack, Z Code
USB Connector MINI-B USB Application Automotive
Services OEM ODM Accept MOQ 20 PCS
High Light

Portable HSD LVDS Cable


Straight HSD LVDS Cable



Leave a Message
Product Description

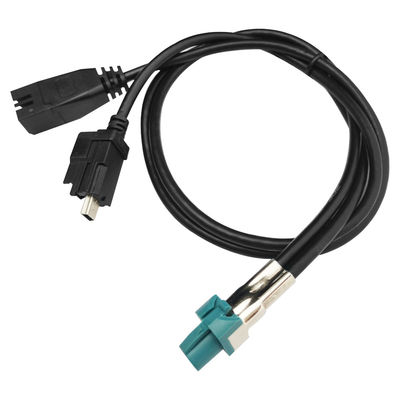

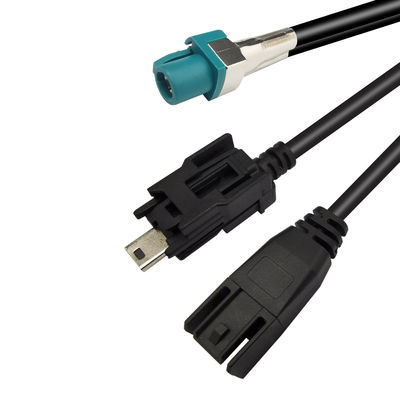

HSD LVDS Cable Straight 4PIN Z Code FAKRA HSD Connector To MINI-B USB Cable


Product description:

The development of in-vehicle entertainment and driver assistance systems, the increase in video information makes driving more comfortable and safer, but it also places higher demands on the quality of information transmission. HSD connectors are targeted at in-vehicle 5G applications, in-vehicle entertainment systems and high speed data transmission.


Main Feature:

1. Suitable for a variety of high-speed data applications
2. Unaffected by crosstalk and external sources of interference
3. 100 Ohm fully shielded interconnect system
4. With good impedance control
5. 14 different mechanical and color codes
6. Compliant with LVDS (Low Voltage Differential Signaling), Ethernet and USB protocols
7.MOQ:20 PCS



1. Low voltage differential signal camera, USB connection or IEEE 1394 application
2. Digital infotainment electronics
3.Digital symmetric network
5. In-vehicle entertainment systems
6.Smart antenna


Offer Custom:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.


Technical Specifications:


Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C


HSD Coding:

HSD Cable Assembly 4+2 Core D Code Jack For In-Car Audio And Video Transmission 0HSD Cable Assembly 4+2 Core D Code Jack For In-Car Audio And Video Transmission 1



1. Q:What is your sample policy?
A: Samples are free of charge, only the customer has to pay the courier fee.


2.Q:Do you accept OEM / ODM orders?

A:Yes, we accept OEM / ODM orders.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
