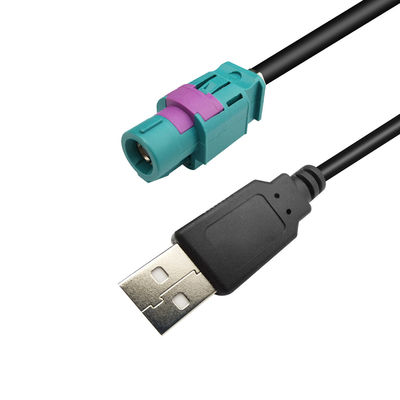

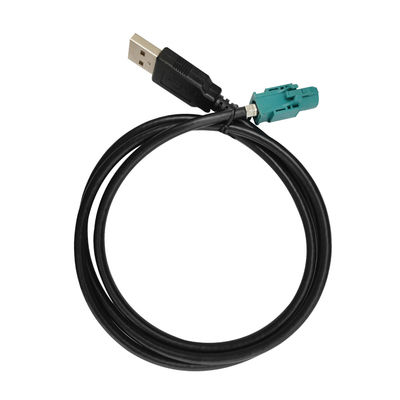

OEM Straight Jack HSD Connector Cable , 4 Pin Z Code HSD Cable To 2.0 Type A USB

Place of Origin CHINA
Model Number FAKRA HSD Cable
Minimum Order Quantity 20pcs
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Conversion Style HSD To USB 1st Connector HSD 4P Jack, Z Code
2nd Connector USB2.0 A Type Application Automotive
Services OEM ODM Accept MOQ 20 PCS
High Light

OEM HSD Connector Cable


Straight Jack HSD Connector Cable


4 Pin Z Code HSD Cable

Leave a Message
Product Description

HSD LVDS Cable Straight Jack 4Pin Z-Code HSD Connector To 2.0 Type-A USB


Product description:

HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer device ports, and display devices. Designed for high speed data transfer to meet automotive data rates up to 6GHz. Suitable for low-voltage differential signals for applications such as LVDS cameras, USB and IEEE1394 to meet a variety of needs.


Main Feature:

1. 14 different mechanical and color codes
2. Primary and secondary locking system resulting in high assembly security
3. Impedance of 100 ohms
4. Compliance with LVDS (Low Voltage Differential Signaling), Ethernet and USB protocols
5. Fully shielded connector system with different wire diameters and types
6. High stability and reliability, high precision, and perfect docking with the original car
7.MOQ:20 PCS


Applications:1.In-car entertainment system
2.5G antenna high frequency signal
3.Smart antenna
4.In-car camera
5.Streaming media rear view mirror
6.Electronic large screen
7.HUD head-up display


Offer Custom:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.


Technical Specifications:


Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C


HSD Coding:

HSD Cable Assembly 4+2 Core D Code Jack For In-Car Audio And Video Transmission 0HSD Cable Assembly 4+2 Core D Code Jack For In-Car Audio And Video Transmission 1



1. Q:What is your sample policy?
A: Samples are free of charge, only the customer has to pay the courier fee.


2.Q:Do you accept OEM / ODM orders?

A:Yes, we accept OEM / ODM orders.


3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
