OEM Vehicle LVDS HSD Cable Assembly Code Z To E 4+2 Core Durable

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD LVDS Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conversion Style HSD To HSD Orientation Straight
Connector 1 Code Z,Waterblue Color Connector 2 Code E,Leaf Green Color
Business Type OEM&ODM MOQ 20 PCS
High Light

OEM HSD Cable Assembly

,

Vehicle HSD Cable Assembly

,

Durable HSD LVDS Cable

Leave a Message
Product Description

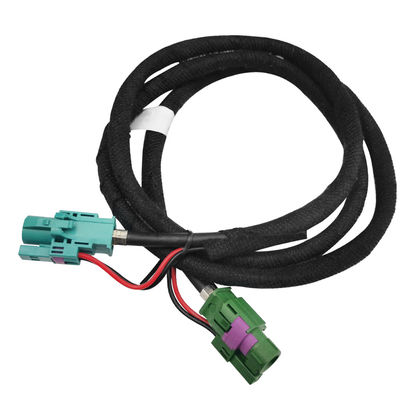

HSD Cable Assembly Vehicle/Automobile Code Z To E HSD LVDS 4+2 Core Cable



Product description:

HSD +2, +4, +8 high speed data connector systems are typically used in automotive applications.HSD is a homogeneous impedance controlled interconnect system that directly addresses the high speed data and low voltage requirements of real time automotive industry applications.HSD interconnect products are focused on automotive applications such as internal compartments for connecting displays, hosts and rear seat infotainment modules.



Main Feature:

1. Excellent data transmission

2. HSD +2, +4, +8 high speed data connector systems are typically used in automotive applications

3. Fully shielded interconnect system is very compact and robust
4. Shielded twisted pair with mechanical keying and locking function
5. High connection retention and coding to avoid misuse

6. MOQ:20 PCS



Applications:

1. High-speed data communication system
2. Audio and video transmission
3. Connection of display, host and rear seat infotainment module
4. Driver assistance system
5.LVDS camera system



Offer Custom:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.



Technical Specifications:



HSD
Coding HSD+2 A.B.C.D.E.F.Z
PIN 4 signal pins,2 power pins
Cable e.g.Dacar 535,Dacar 636
Packing Unit on request
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C



HSD Coding:

OEM Vehicle LVDS HSD Cable Assembly Code Z To E 4+2 Core Durable 0OEM Vehicle LVDS HSD Cable Assembly Code Z To E 4+2 Core Durable 1
