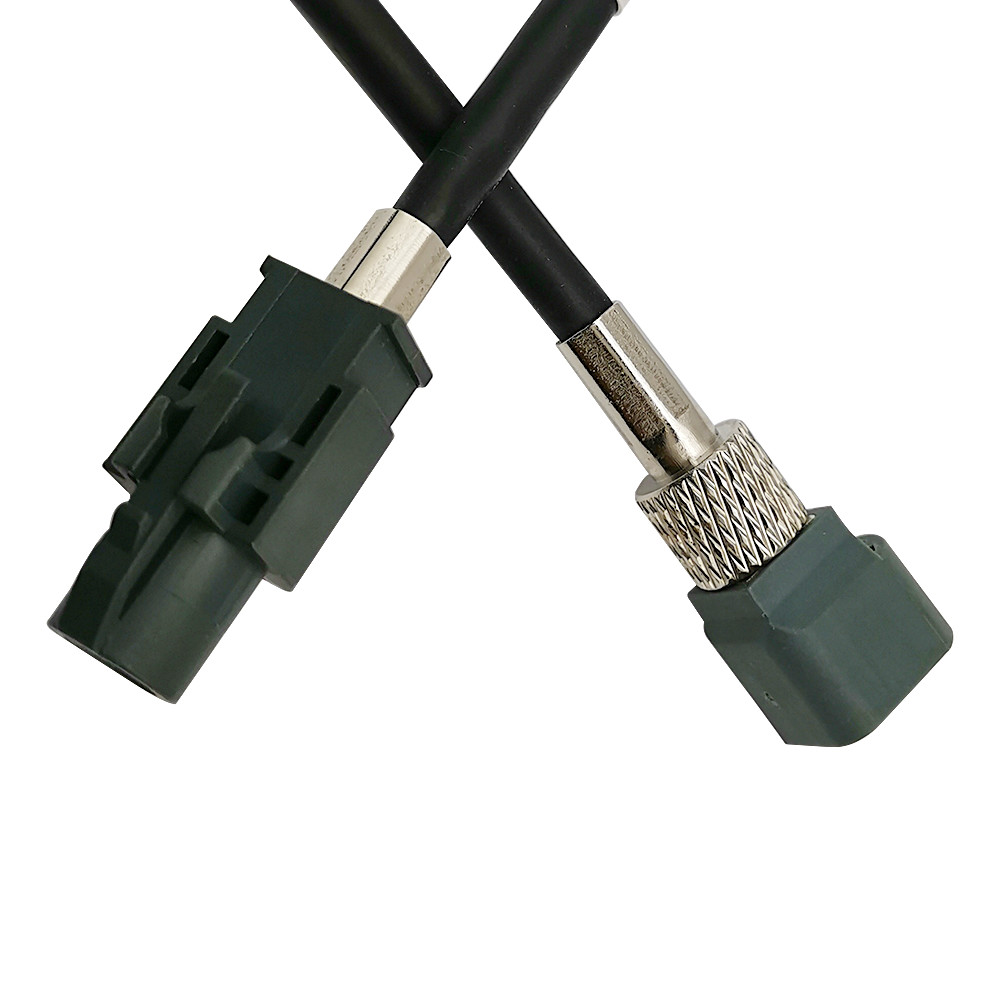

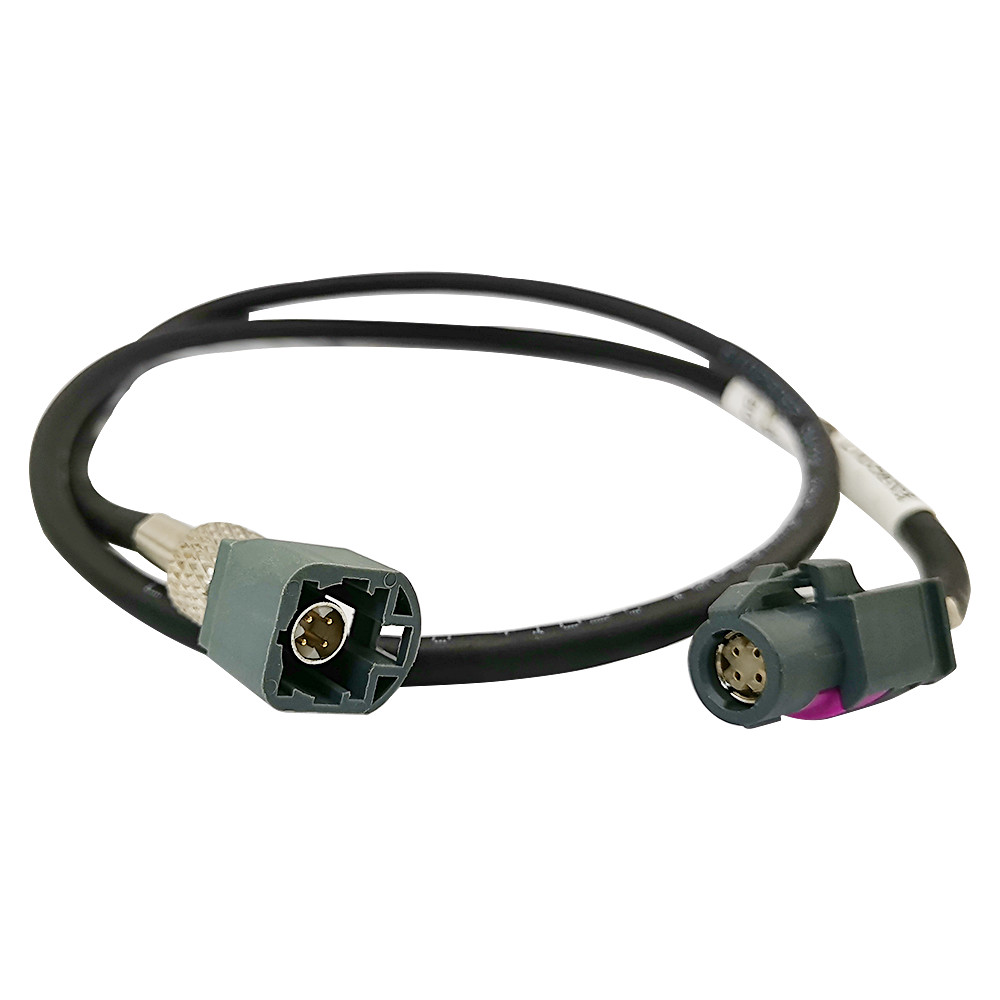

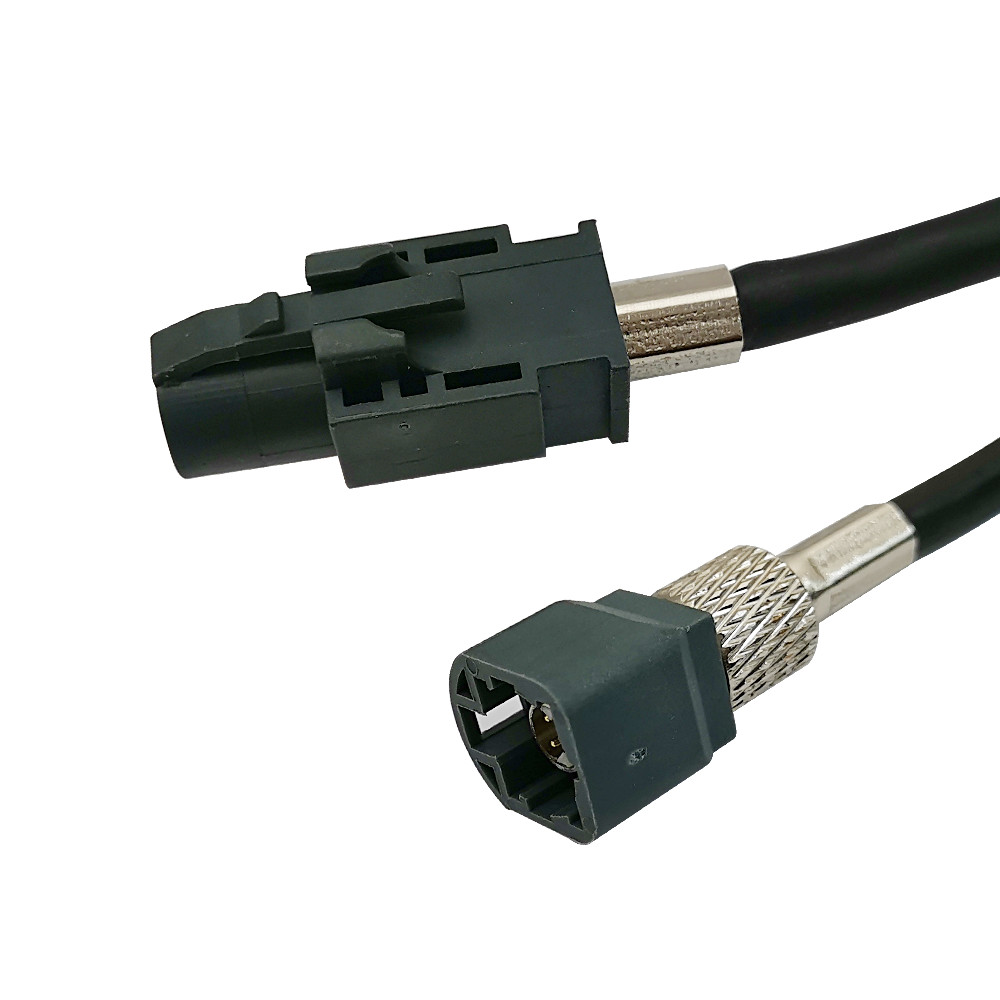

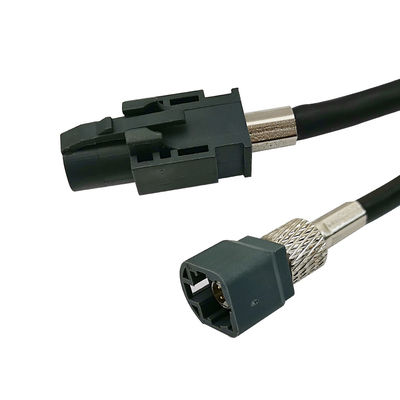

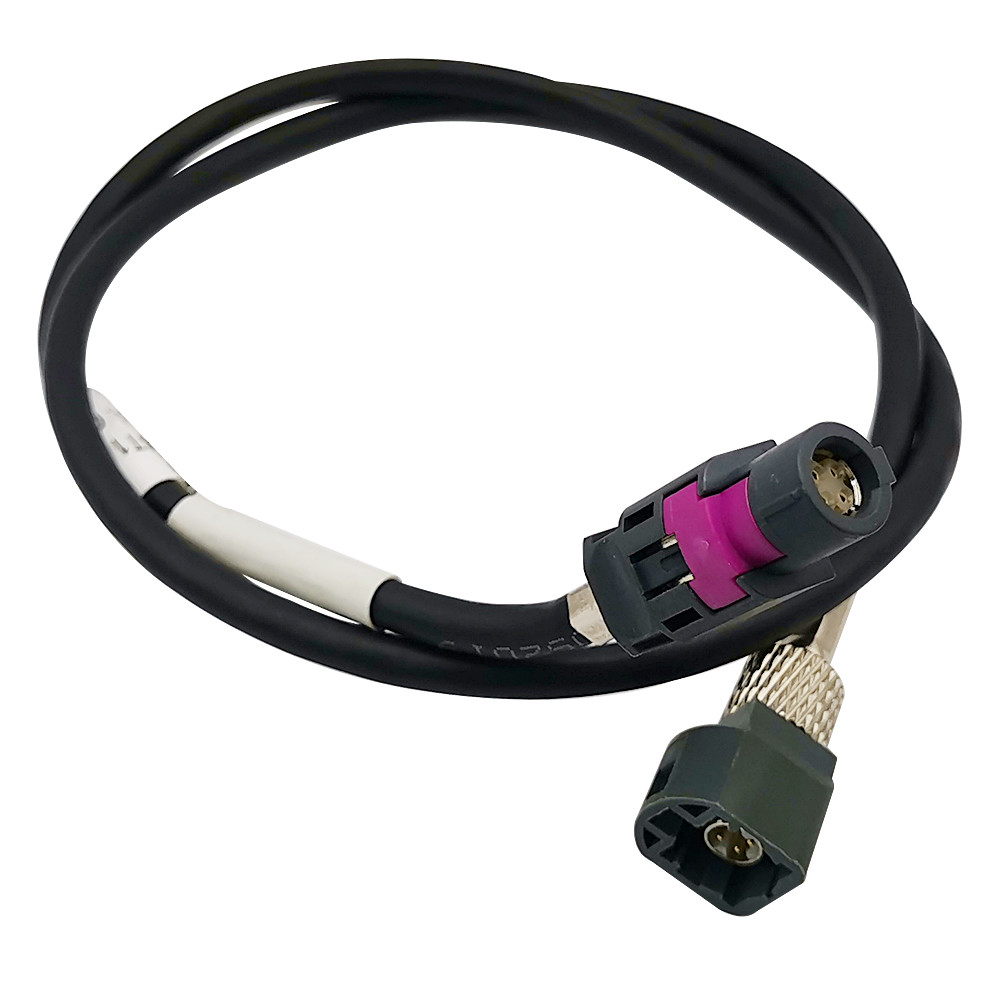

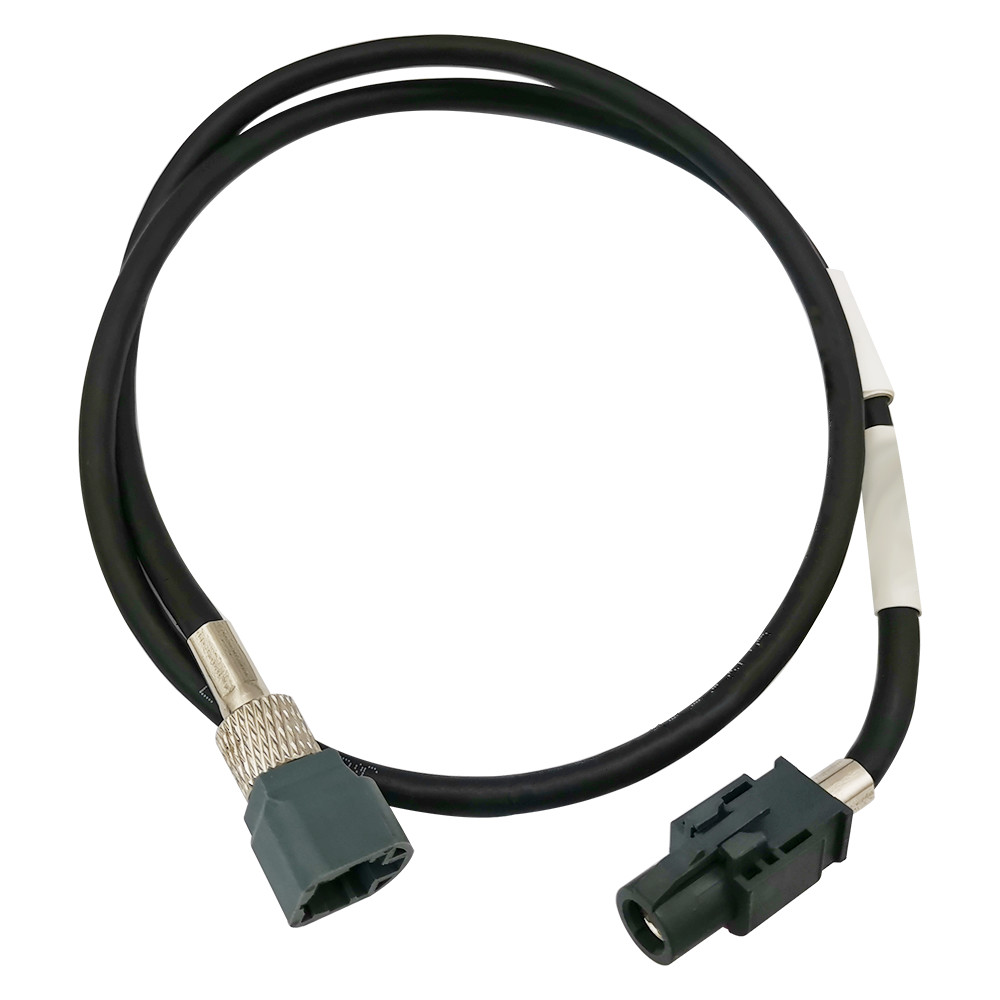

Car Grey HSD Cable Assembly 4 Pin LVDS High Speed Transmission G Code

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD LVDS Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Auto Vehicle High-Speed Transmission Color Grey
Pins 4pins Service OEM & ODM Is Accepted
Application Automotive, Vehicle Infotainment Modules, Cameras Product Keywords Hsd Connector For Lvds
High Light

Car HSD Cable Assembly

,

Grey HSD Cable Assembly

,

G Code 4 Pin LVDS Cable

Leave a Message
Product Description

Auto Vehicle High-Speed Transmission G Code Grey LVDS 4Pin Cable For Car



Product description:

LEADSIGN offers advanced specialized automotive connectors and wire and cable to meet the demand for high-speed data transmission connections in vehicles.HSD connectors are widely used in the field of automotive electronic entertainment system, which is an important component belonging to the signal transmission between in-car multimedia devices.



Main Feature:

HSD can not only send data based on Low Voltage Differential Signaling (LVDS), but can also be used for USD 2.0/3.0, Ethernet specifications with high shielding efficiency, and with the introduction of automotive Ethernet, HSD connectors will become a compatible solution.



Applications:

1.Advanced Driver Assistance Systems (ADAS).
2.Telematics, multimedia, infotainment, GPS, navigation, and cameras.
3.Body control, safety, security, and comfort.

4.Radio Supply

5.Aerospace

6.TV Video





Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of HSD connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



HSD
Impedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Working Voltage 60 V rms
Temperature range -40°C to +105°C
Signal contact resistance ≤ 10 mΩ
Outer contact resistance ≤7.5 mΩ
test voltage 250 V rms
Coupling attenuation

≥75 dB,DC to 1 GHz

≥ 65 dB,1 GHz to 2 GHz
