Data Transfer HSD Cable Assembly Code H Connector To Mini B USB Plug For Car

Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD Cable Assembly
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Service Support OEM&ODM Order Impedance 100 Ohm
Application Automotive Frequency DC~6GHz
Temperature Range -40° ~ +125°C Fastening Type Push On
High Light

Data Transfer HSD Cable Assembly

,

USB HSD Cable Assembly

,

Car HSD To USB

Leave a Message
Product Description

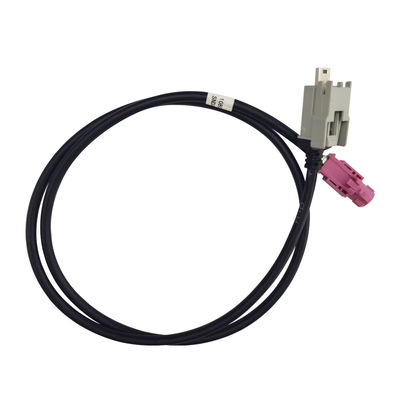

HSD Code H Connector To Mini B USB Plug Data Transfer Extension Cable For Car



Product description:

HSD interconnect system is designed for the automotive market, e.g., LVDS camera, USB, and IEEE 1394 applications. HSD system features mechanical keying, latching, color code options, and minimum size to satisfy global automotive requirements.



Main Feature:

1.Primary and secondary lock
2.Crimp connection
3.Insertion funnel on jack inner conductors
4.Plug pins protected by plastic domes
5.High cable retention force
6.High coding efficiency (different codings to eliminate misconnections are available on the plastic housing)



Applications:

1.Infotainment Modules
2.Dashboard / Touch Screen
3.Bluetooth
4.USB Connectivity
5.Advanced Driver Assistance Systems (ADAS)
6.Telematics, multimedia, infotainment, GPS, navigation, and cameras
7.Body control, safety, security, and comfort



Offer Custom:

We accept OEM and ODM orders. If you need a different installation, please let us know the type of HSD connector required, and the length of the cable, and we will be happy to consider your request for a working solution. Feel free to contact us.



Technical Specifications:



Impedance 100 Ω
Frequency Range DC~6GHz
Temperature Range −40°C to +105°C
Mating Cycles 25 Min
Voltage Rating 100 VRMS Max Continuous
Coupling Mechanism Push-on
Signal contact resistance ≤ 10 mΩ
outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms



FAQ:

1. Q:What is your sample policy?
A: Samples are free of charge, only the customer has to pay the courier fee.



2.Q:Do you accept OEM / ODM orders?

A:Yes, we accept OEM / ODM orders.



3. Q: What are your payment terms?
A: L/C, T/T, Western Union can be accepted.
