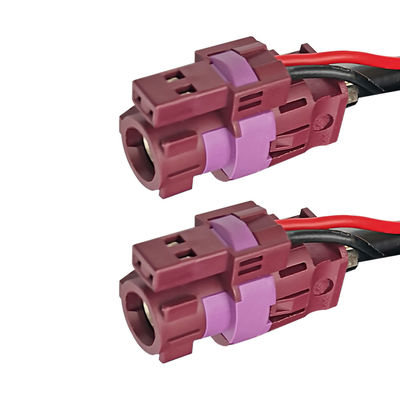

Lightweight LVDS HSD Cable Assemblies , 4+2-Pin Straight HSD D Plug Cable

  • Lightweight LVDS HSD Cable Assemblies , 4+2-Pin Straight HSD D Plug Cable
  • Lightweight LVDS HSD Cable Assemblies , 4+2-Pin Straight HSD D Plug Cable
Place of Origin CHINA
Brand Name LEADSIGN
Model Number HSD LVDS Cable
Minimum Order Quantity 20 PCS
Price Contact the seller
Packaging Details Giftbox size:260*220*80mm, 20PCS/CTN
Delivery Time 7~14 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 200000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number HSD 4+2PIN Connector And Cable Conversion Style HSD To HSD
Connector Code D, Straight, Claret Violet Color Application Monitors, Cameras
Business Type OEM&ODM MOQ 20 PCS
Highlight

Lightweight HSD Cable Assemblies

,

LVDS HSD Cable Assemblies

,

Straight HSD D Plug Cable
Leave a Message
Product Description

HSD Cable Assembly 4+2-Pin Straight Code D Plug LVDS Extension Cable



Product description:

HSD interconnects enable excellent data transfer via LVDS (Low Voltage Differential Signaling) and are protected against crosstalk and other external sources of interference. HSD +2, +4, +8 power pin connectors - more variants with additional pins (MQS contacts) for power supply. HSD power supply (PoH) is a remote power supply concept, e.g. for monitors, cameras or similar devices.



Main Feature:

1. Excellent data transmission

2. HSD +2, +4, +8 power pin connectors - more variants have additional pins (MQS contacts) for power purposes
3. Shielded twisted pair with mechanical keying and locking
4. High connection retention and coding to avoid failures
5. Protection against crosstalk and external interference

6. MOQ:20 PCS



Applications:

1. Infotainment System Module
2. Cluster Monitors
3. Consumer Port
4. Connect the display
5. LVDS(Low Voltage Differential Signal)
6. GVIF(Gigabit Video Interface)
7. USB
8. IEEE 1394
9. Ethernet protocol



Offer Custom:

We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.



Technical Specifications:



HSD
Coding HSD+2 A.B.C.D.E.F.Z
PIN 4 signal pins,2 power pins
Cable e.g.Dacar 535,Dacar 636
Packing Unit on request
Electrical Data
lmpedance 100Ω
Frequency range depending on cable type DC to 6 GHz
Signal contact resistance ≤10 mΩ
Outer contact resistance ≤7.5 mΩ
Test voltage 250 V rms
Working voltage 60 V rms
Mechanical Data
Mating cycles ≥25
Engagement force ≤30 N
Disengagement force ≥5N
Retention force latch ≥ 110N
Environmental Data
Temperature range -40°C to +105°C



HSD Coding:

Lightweight LVDS HSD Cable Assemblies , 4+2-Pin Straight HSD D Plug Cable 0Lightweight LVDS HSD Cable Assemblies , 4+2-Pin Straight HSD D Plug Cable 1



FAQ:

1.Do you provide samples?
A: Yes, we can provide samples, but you need to pay the shipping cost.

2. Q: Do you accept customizable orders?
A: Yes, we accept OEM and ODM.

3. What are your payment terms?
A: We accept L/C, T/T, Western Union.

4. Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we can provide you with the latest price.
